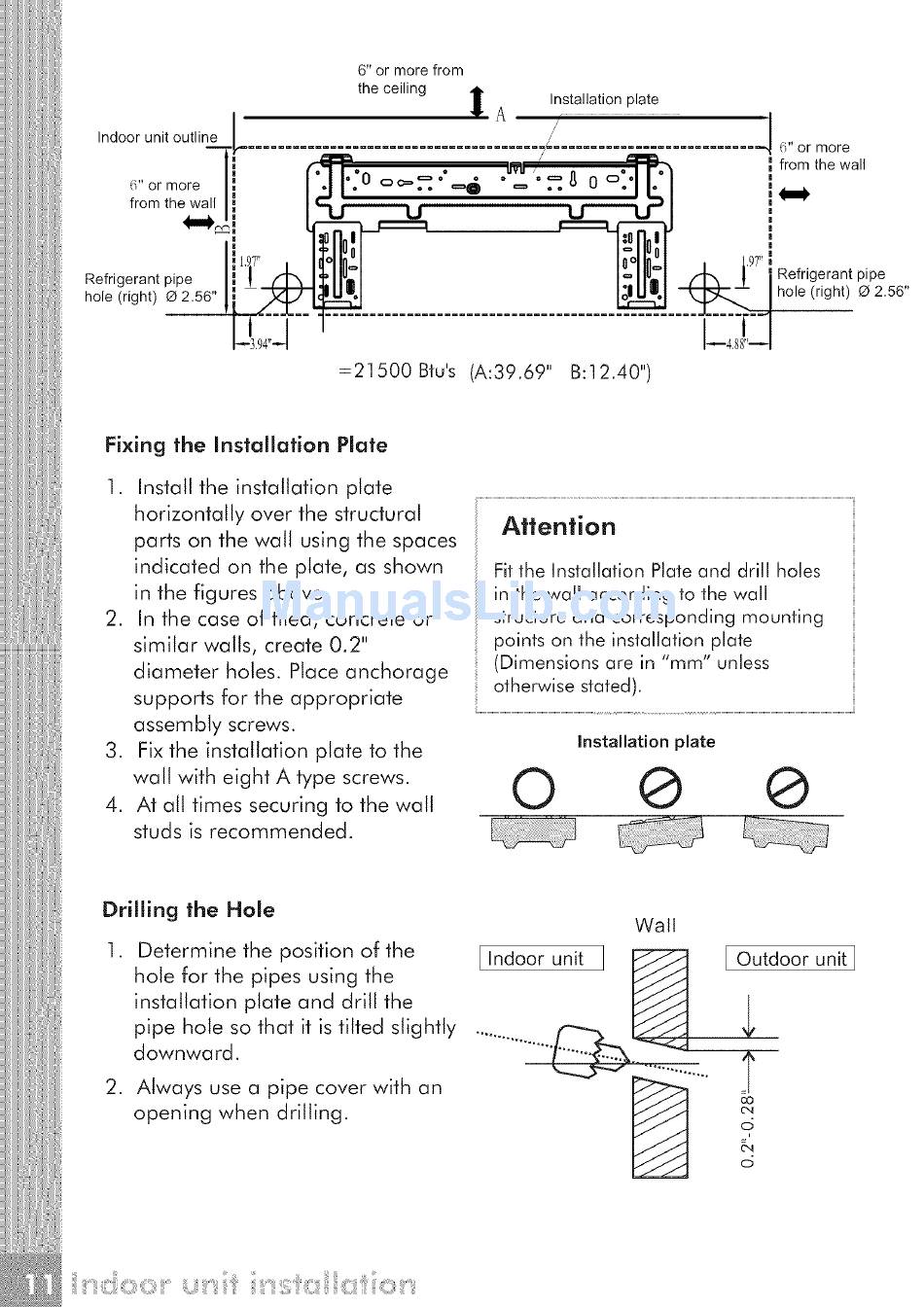

6" or more from
the ceiling I Installation plate
A
I
I
Indoor unit outline I /
-""Tp" ....................................... _ ........................... _ { " or more
l, f - - _u _ _ from the wall
o (:3 o • • o / ° _ (:3oo • e
_i" ormore |, l'.ll':0 o_.=."=--" "';=:.._ 0 .11.'/ ,
from the
wall|! I_ ;------',, -- , ,"--'4 ;='/ ! _'_
_e e
Refrigerant pipe
I= ! H', I]'llU21 I_llU21
fqt_ ! I Refrigerant pip e
hole (right) O 2.56" !i _--_'1 _ | | hole (right) O 2.56"
=21500 Bfus (A:39.69" B:12.40")
Fixing the Installation Plate
1. Install the installation plate
horizontally over the structural
Attention
parts on the wall using the spaces
indicated on the plate, as shown Fit the Installation Plate and drill holes
in the figures above, in the wall according to the wall
2. In the case of tiled, concrete or structureand corresponding mounting
similar walls, create 0.2" points on the installation plate
diameter holes. Place anchorage (Dimensions are in "mm" unless
supports for the appropriate otherwisestated).
assembly screws.
3. Fix the installation plate to the
Installation
plate
walt with eight A type screws. O @ @
4. At all times securing to the wall
studs is recommended.
Drilling the Hole
Wall
1. Determine the position of the I Indoor unit [ Outdoor unit]
hole for the pipes using the
installation plate and drill the
pipe hole so that it is tilted slightly
downward.
2. Always use a pipe cover with an
opening when drilling.
