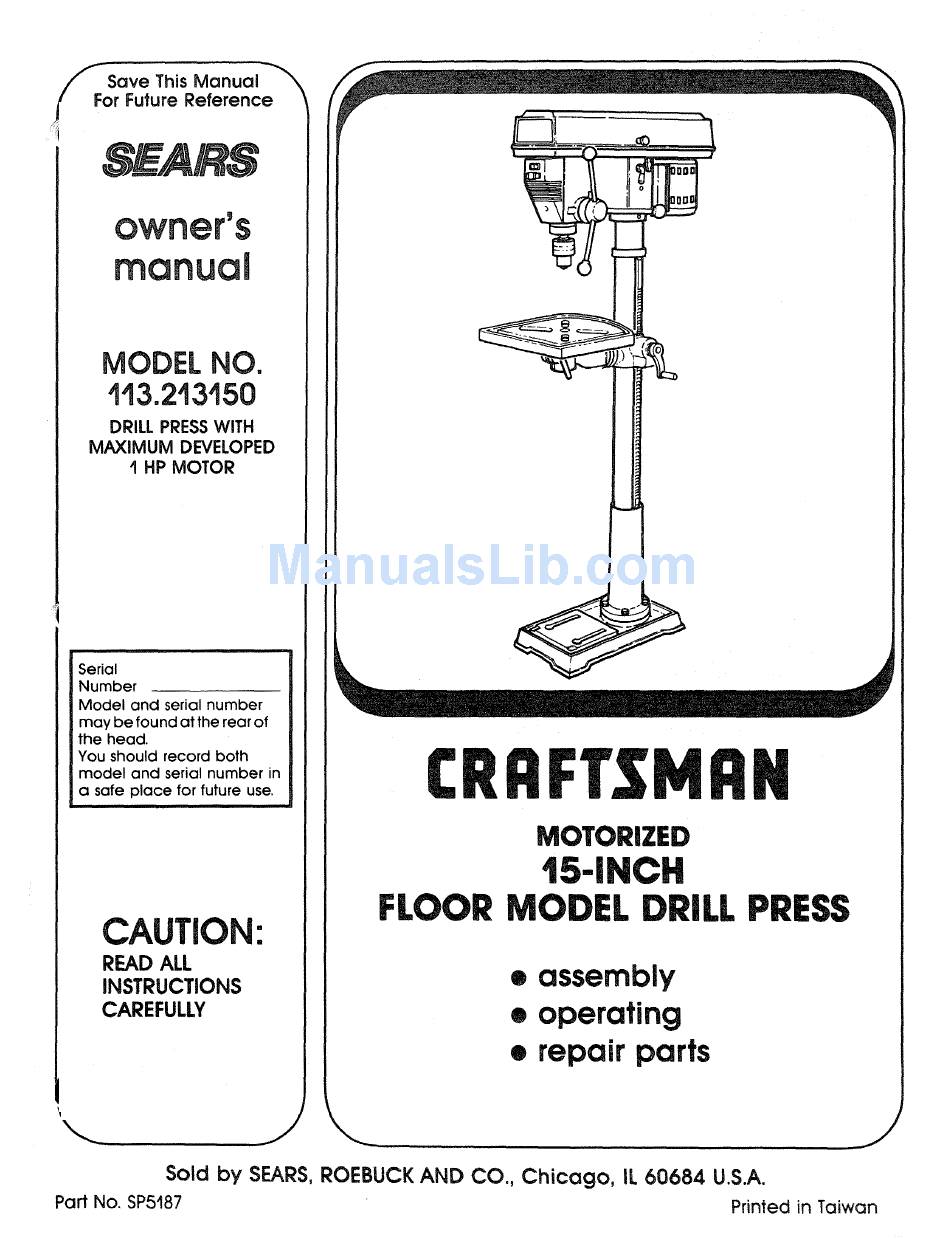

MODEL
NO.
143,213150
DRILL PRESS WITH
MAXIMUM
DEVELOPED
I HP MOTOR
Serial
Number
Model and serial number
may be found at the rear of
the head.
You should
record
both
model
and
serial number
in
a safe place
for future
use.
i
CAUTION:
READ ALL
INSTRUCTIONS
CAREFULLY
I
CRRFrSMRN
MOTORIZED
t5-|NCH
FLOOR MODEL DRILL PRESS
• assembly
• operating
• repair parts
Sold
by SEARS, ROEBUCK
AND
CO.,
Chicago,
IL 60684
U.S.A.
Part No. SP5187
Printed in Taiwan
Advertisement
Table of Contents
Related Manuals for Craftsman 143.213150
Summary of Contents for Craftsman 143.213150
- Page 1 Save ThisManual For Future Reference MODEL 143,213150 DRILL PRESS WITH MAXIMUM DEVELOPED I HP MOTOR Serial Number Model and serial number may be found at the rear of the head. CRRFrSMRN You should record both model serial number a safe place for future use.
-
Page 2: General Safety Instructions For Power Tools
ON CRAFTSMAN DRILL PRESS If within one year from the date of purchase, this Craftsman Drill Press fails due to a defect in material or workmanship, Sears will repair it, free of charge. WARRANTY SERVICE IS AVAILABLE BY SIMPLY CONTACTING THE NEAREST SEARS SER- VICE CENTER/DEPARTMENT THROUGHOUT THE UNITED STATES. -
Page 3: Additional Safety Instructions For Drill Presses
ions for drill additional safety instruct presses d. To prevent the workpiece from being VsARNING: FOR YOUR OWN SAFETY, DO NOT torn from your hands, spinning of the E YOUR DRILL PRESS UNTIL IT IS COM- PLETELY ASSEMBLED AND INSTALLED ACCORD- tool. - Page 4 Drum sanders must NEVER be operated on 13. Think Safety. Safety is a combination of operator this dr I press at a speed greater than 1800 common sense and a ertness at a t mes when the RPM. dril! press is being used. c.
-
Page 5: Table Of Contents
gmossary of terms 4. Revolution Per Minute (R.P.M.) 1. Workpiece The number of turns completed by a spinning object The item on which the cutting operations is being in one minute. performed. 5. Spindle Speed 2. Drill The RPM of the spindle. The cutting tool used in the drill press to make holes !t,,.. -
Page 6: Motor Specifications And Electrical Requirements
motor specfflcat=ons and electrmca requirements MOTOR SPECIFICATOONS This power tool is equipped with a 3-conductor cord and grounding type plug. approved by Underwriters' This drill press is designed to use a 1725 RPM motor Laboratories and the Canadian Standards Association, only. -
Page 7: Unpacking And Checking Contents
contents unpacking and checking TABLE OF LOOSE PARTS WARNING: AVOID INJURY FROM UNEX- pECTED STARTING OR ELECTRICAL SHOCK, DO Item Description Qty. _OT PLUG THE POWER CORD INTO A SOURCE A Table ......OF POWER. THIS CORD MUST REMAIN UNPLUG- B Column Support Asm .... -
Page 8: Table Of Loose Parts
List of Loose Parts in Bag 507886 Item Description Qty. A Feed Handle ......Key Drift ....Wrench Hex "L" 3mm ....Wrench Hex "L" 5mm ....Crank ......Clamp Column ...... List of Loose Parts in Box 507887 Item Description Qty. -
Page 9: Cation And Function Of Controls
location and function of controls 9. CHUCK... Holds drill bit or other recommended 1. BELT TENSION HANDLE... Turn handle counter accessory to perform desired operations. clockwise to apply tension to bell turn handle clockwise to release belt tension. 10. BEVEL SCALE... -
Page 10: Sembly
assembly WARNING: FOR YOUR OWN SAFETY, NEVER CON- NECT PLUG TO POWER SOURCE OUTLET UNTIL ALL ASSEMBLY STEPS ARE COMPLETED. FRAMING SQUARE MUST BE TRUE. Check its accuracy as illustrated below. TOOLS NEEDED DRAW LIGHT STRAIGHT EDGE OF LINE ON BOARD BOARD 3/4"... -
Page 11: Installing The Table
SUPPORT LOCK INSTALLING TABLE TABLE 1. Loosen support lock and raise table support :RANK turning table crank clockwise until support is at a working height level. Tighten support lock, TABLE SUPPORT RACK .,,.._TABLE SUPPORT 2. Remove protective covering from table and dis- card. -
Page 12: Mounting Motor
MOUNTING MOTOR .f'_ S_ MOTOR FF" BRACKET 1. Locate four (4) 8mm Dia x 20mm long hex head z j" bolts, eight (8) flat washers, and four (4) hex nuts "_ MOTOR BASE among loose parts. _ _ _ y 2. -
Page 13: Installing Belt Guard Knob
5. Locate center pulley assembly in loose parts bag and place in proper hole. SPINDLE PULLEY 6. Locate two (2) V-belts in the loose parts bag. 7. Use speed chart inside belt guard to choose speed for drilling operation. Install belts in correct position for desired speed. -
Page 14: Motor Connections
MOTOR CONNECTIONS WARNING: FOR YOUR OWN SAFETY, NEVER CON- NECT PLUG TO POWER SOURCE OUTLET UNTIL BLACK WIRE TO ALL ASSEMBLY STEPS ARE COMPLETED. TERMINAL COPPER POST _,\V _",_ I1 ""_t_--_3. WHITE WIRE power cord. 3. Reinsert GREEN SCREW in threaded hole that it was removed from and tighten... - Page 15 SPINDLE 2. Slide the chuck up over the arbor as illustrated. SUPPORT LOC.K 4. Unlock support lock and raise table so its about two (2) inches below tip of chuck. 5. Turn chuck sleeve clockwise and open jaws in chuck completely. 6.
-
Page 16: Installing Light Bulb
INSTALLING LIGHT BULB 1. Install a light bulb (not larger than 60 watt) into the socket inside the head, ADJUSTING THE TABLE SQUARE TO HEAD NOTE: The combination square must be "true." See "Unpacking Checking Contents" section for method. 1, Insert a precision ground steel rod approximately 3"... -
Page 17: Getting To Know Your Drill Press
getting to know your drill press FEED SPRING FEED ADJUSTMENT SPRING SPRING BELT GUARD LIGHT "ON-OFF" SWITCH DRILL "ON-OFF" SWITCH BELT TENSION LOCK HANDLE CHUCK BELT TENSION LOCK HANDLE BEVEL LOCK (UNDER TABLE) BELT TENSION HANDLE SUPPORT LOCK DEPTH HEAD LOCK SCALE LOCK BEVEL SCALE... - Page 18 See inside of belt guard for specific placement of belts This Drill Press has 12 speeds as listed below: on pulleys. 250 RPM 990 RPM 340 RPM 1550 RPM 390 RPM 1620 RPM 510 RPM 1900 RPM 600 RPM 2620 RPM 650 RPM 3100 RPM SPINDLE...
-
Page 19: On-Off Switch
27. DRILL "ON-OFF" SWITCH . .. Has locking fea- ture, THIS FEATURE IS INTENDED TO HELP PREVENT UNAUTHORIZED POSSIBLE HAZARDOUS CHILDREN OTHERS. Insert KEY into switch, NOTE: Key is made of yellow plastic. To turn drill ON.. Insert finger under switch lever and pull. To turn drill OFF... -
Page 20: Drilling To A Specific Depth
piece. 2- Loosen the depth scale lock. 3. With the switch OFF, bring the drill down until the TIP or lips of the drill are even with the Mark. DEPTH SCALE LOCK 4. Turn the depth scale counterclockwiseuntil it stops moving. -
Page 21: Removing Chuck And Arbor
DEPTH SCALE LOCK 3. Turn the depth scale clockwise until it stops. 4. Tighten the depth scale lock. 5. The chuck will now be he_d at this depth when the feed handles are released. ARBOR SPINDLE KEY HOLE SPINDLE QUILL KEY HOLE REMOVaNG CHUCK AND ARBOR CHUCK... -
Page 22: Re-Installing The Chuck And Arbor
RE'INSTALLING CHUCK AND ARBOR 1. Clean the tapered surface on the arbor with a clean cloth. Make sure there are no foreign particles stickingto surface. The slightest piece of dirt on this surface will prevent arbor from seating properly. This will cause the drill to "wobble."... -
Page 23: Basic Drill Press Operation
basic drill press operation Follow the following instructionsfor operating your drill Never do any work "FREEHAND" (hand- press to get the best results and to minimize the likeli- holding workpiece rather than supporting hood of personal injury. on the table), except when polishing. -
Page 24: Positioning Table And Workpiece
POSiTIONiNG TABLE AND WORKPIECE Lock the table to the column in a position so that the tip of the drill is just a little above the top of the work- piece. Always place a piece of BACK-UP MATERIAL (wood. plywood..) on the table underneath the workpiece. -
Page 25: Tilting Table
TiLTiNG TABLE To use the table in a bevel (tilted) position, loosen the BEVEL LOCK set screw under table bevel lock with Hex "L" wrench. Loosen bevel lock with 15/t6" wrench. Tilt table to desired angle by reading bevel scale. Re- tighten bevel lock and set screw. -
Page 26: Maintenance
SOURCE OUTLET BEFORE MAINTAINING OR LUB- RICATING YOUR DRILL PRESS. Frequently blow out any dust that may accumulate in- side the motor. A coat of automobile-type paste wax when applied to the table and column will help to keep tlqe sur- faces clean. -
Page 27: Trouble Shooting
troubJe shooting WARNING: FOR YOUR OWN SAFETY, TURN SWITCH "OFF" AND ALWAYS REMOVE PLUG FROM POWER SOURCE OUTLET BEFORE TROUBLE SHOOTING. ® CONSULT YOUR LOCAL SEARS SERVICE CENTER IF FOR ANY REASON MOTOR WILL NOT RUN. TROUBLE REMEDY PROBABLE CAUSE Noisy Operation 1. -
Page 28: Repair Parts
Always order by Part Number--Not by Key Number FIGURE 1 PARTS LIST Dart Part ",,.'" Description Description ,lu.u. 817325 817358-1 Screw-Wash HD. Knob 817334 Pivot-Idler M6x1.0-16 817544 817534 Pulley-Center insert-Pulley STD315225 816755-4 Screw-PN HD. M5 x 0.8-12 * Bearing-Ball 15mm STD303240 * Belt-"V"... - Page 29 repair parts €_ T "¸ ,€_J T" 03 €_ ¢/)T- G:.j (.,)w G:C3 €_...
- Page 30 repair parts r" ×o_ €-...
- Page 31 PARTS LgST FOR CRAFTSMAN 15" DRfLL pF_ESS MODEL NO. 113.213150 .F..I ",J Always order by Part Number--Not by Key Number FIGURE 3 PARTS LIST Part Description Description 817309 Locknut M!7 x 1.0 817326 Key-Drift 817310 Ring-Locking 817339 Key-Chuck...
- Page 32 PARTS LiST F " CRAFTSMAN 15 DRILL PRESS MODEL NO. 113.213150 Always order by Part Number--Not by Key Number FIGURE 4 PARTS LiST Part Part Description Description 817478 Collar-Rack 817390-5 Screw-Hex HD. M6x 1.0-12 817391-1 Screw-Hex Soc. Set 817288 Pin-Gear...
- Page 34 Notes:...
- Page 35 Notes:...
- Page 36 SERVHCE Now that you have purchased your 15-inch Drill Press, should a need ever exist for repair parts or service, simply contact any Sears Service Center and most Sears, Roebuck and Co. store_ Be sure to provide all pertinent facts when you call or visit.
