PARTS LIST
NO. DESCRIPTION
1 Screw (8)
2 Housing - Top
3 Switch Cap
4 Bearing - Intermediate (2)
5 Washer (2)
6 Intermediate Gear &
Shaft Ass'y
7 Spring Washer
8 Grommet (4)
9 Spherical Bearing
10 Grinding Wheel &
Shaft Ass'y
11 Filter (Wiper)
12 Right Tool Rest
Bracket Ass'y
13 Left Tool Rest
Bracket Ass'y
14 External Lock Tooth
Washer (2)
PART NO.
953A17-1
2905E2
2905A12
2901A14
500A18
2905A9
96A63
2901A52
2901A36
2905B8
2905A15
2905A37
2905A38
90Al17
15 Washer (2)
16 Tool Rest
17 Knobs (2)
18 Retainer Leg
19 Screw (2)
20 Retainer Leg Bracket (2)
21 Rubber Foot (4)
22 Housing Bottom
23 Manual
1030Al13
2905A39
2900A79
2905B35
953A17-2
2905A47
2901A25
2905E1
2905A56

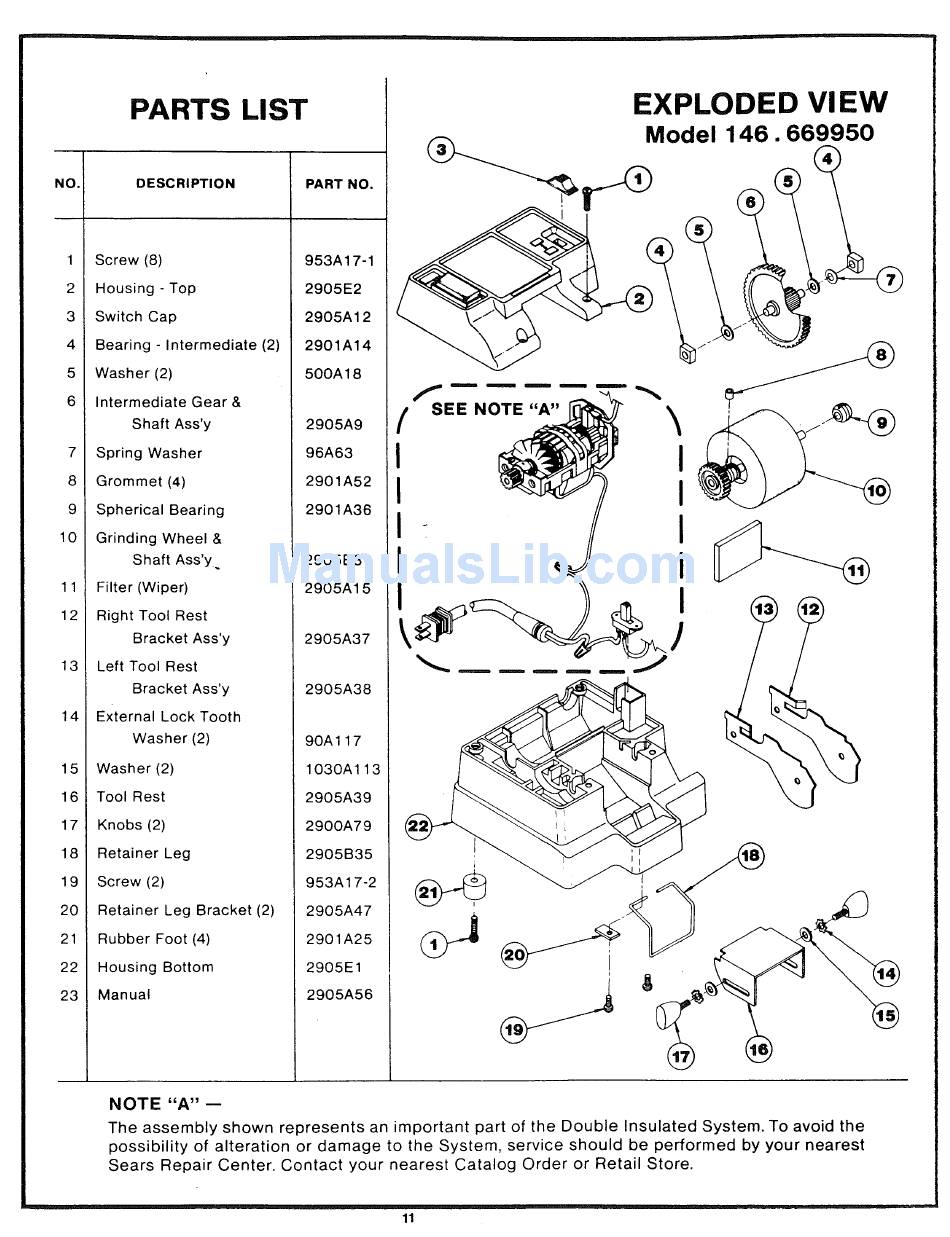

EXPLODED VIEW
Model 146. 669950
@
NOTE "A" --
The assembly shown represents an _mportant part of the Double Insulated System. To avoid the
possibility of alteration or damage to the System, service should be performed by your nearest
Sears Repair Center. Contact your nearest Catalog Order or Retail Store.
