CAUTION:
1.
Weight on this product should not exceed 300 lbs.
2.
Class H equipment: This equipment is for home
use only. It is not for commercial use.
2006, 11
This Product is Produced Exclusively by
2040 N. Alliance, Springfield, MO 65803
Customer Service Number
1 (800) 375-7520
www.staminaproducts.com
Owner's Manual
!
Exercise can present a health
risk. Consult a physician
before beginning any exercise
program with this equipment.
If you feel faint or dizzy,
immediately discontinue use
of this equipment. Serious
bodily injury can occur if this
equipment is not assembled
and used correctly. Serious
bodily injury can also occur if
all instructions are not
followed. Keep others and
pets away from equipment
when in use. Always make
sure all bolts and nuts are
tightened prior to each use.
Follow all safety instructions in
this manual.
When calling for parts or
service, please specify the
following number.
STAMINA PRODUCTS

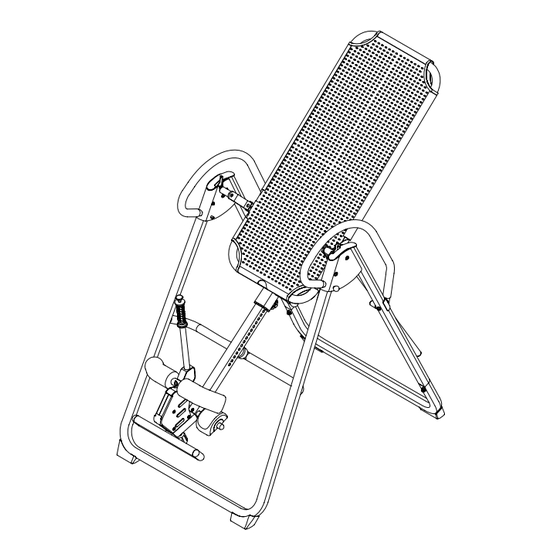

Product May Vary Slightly
2006 Stamina Products, Inc.
WARNING
!
55-1537C
MADE IN CHINA
From Pictured.
Advertisement
Table of Contents
Related Manuals for Stamina 55-1537C
Summary of Contents for Stamina 55-1537C
- Page 1 Class H equipment: This equipment is for home use only. It is not for commercial use. Product May Vary Slightly From Pictured. This Product is Produced Exclusively by 2040 N. Alliance, Springfield, MO 65803 Customer Service Number 1 (800) 375-7520 www.staminaproducts.com 2006, 11 2006 Stamina Products, Inc.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page Page Safety Instructions Maintenance Instructions Before You Begin Product Parts Drawing Hardware Identification Chart Parts List Assembly Instructions Warranty Operational Instructions Notes Storage Fax/Mail Ordering Form SAFETY INSTRUCTIONS WARNING: To reduce the risk of serious injury, read the following safety instructions before using the Elite Inversion System. - Page 3 CALL US FIRST THANK YOU FOR PURCHASING THE Elite Inversion System To help you get started, we have pre-assembled most of your Elite Inversion System at the factory with the exception of those parts left unassembled for shipping purposes. Simply follow the few assembly instructions set forth in this manual. Within a few minutes you will be getting your body into shape and on your way to achieving a happier and healthier lifestyle.
-
Page 4: Before You Begin
BEFORE YOU BEGIN Elite Inversion Although Stamina tries to manufacture its products Thank you for choosing the with the finest materials and uses the highest System. We take great pride in producing this standards of manufacturing, occasionally a part that quality product and hope it will provide many hours does not fit, is the incorrect size, or is otherwise of quality exercise to make you feel better, look better... -
Page 5: Hardware Identification Chart
HARDWARE IDENTIFICATION CHART This chart is provided to help identify the hardware used in the assembly process. Place the washers, the end of the bolts, or screws on the circles to check for the correct diameter. Use the small scale to check the length of the bolts and screws. -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all packing materials from your area and place them back into the box. Do not dispose of the packing materials until assembly is completed. - Page 7 ASSEMBLY INSTRUCTIONS STEP 3 PIVOT ARMS(91) MAIN FRAME Slide the bottom of the two into the brackets located at each side of the (92). Align the desired hole on the arm with the peg on the bracket, then insert the peg into the hole to lock PIVOT ARMS(91) Secure the PIVOT ARMS(91) with the SECURING KNOBS in position.
- Page 8 ASSEMBLY INSTRUCTIONS STEP 5 ANGLE ADJUSTMENT BARS(85) MAIN FRAME(92) Attach the onto the shafts on both sides of the BOLTS(M8 x 15mm)(62) WASHERS(M8)(69). with Do not tighten the bolts until STEP 6. STEP 6 SUPPORT SLEEVES(84) ANGLE ADJUSTMENT BARS(85). Slide one of the onto the left Install SUPPORT SLEEVES(84)
- Page 9 ASSEMBLY INSTRUCTIONS STEP 7: FOOTREST(11) HEIGHT ADJUSTMENT BEAM(10) Attach the onto the with the adjustment FOOTREST(11) ADJUSTMENT KNOB(12). holes facing down. Secure the in place with the NOTE: FOOTREST(11) FOOTREST(11) The four adjustment holes in the allow the to be attached in four different positions.
- Page 10 ASSEMBLY INSTRUCTIONS STEP 10 HEIGHT ADJUSTMENT BEAM(10) MAIN FRAME(92) SPRING PIN(35) Install the into by pulling the MAIN FRAME(92) HEIGHT ADJUSTMENT BEAM(10) on the and inserting the as shown. For added LOCKING KNOB (36) MAIN FRAME(92). safety, thread the (3/8"-16 x 3/4") into back side of the WARNING: Elite Inversion System...
-
Page 11: Operational Instructions
OPERATIONAL INSTRUCTIONS GENERAL PRECAUTIONS PIVOT ARMS( Elite Inversion Use the lowest holes in the until you become familiar with the System Elite Inversion System Do not use the alone. Always have a helper available in case assistance is needed in recovering from the decline position. FOAM PADS(18) HEEL HOLDERS(15) Make sure that the... - Page 12 OPERATIONAL INSTRUCTIONS INVERSION ANGLE ADJUSTMENT ANGLE There are 11 adjustment holes in the ADJUSTMENT BARS(85) allowing you restrict the NYLON BED(37) movement of the to different angles PULL PINS(86) by inserting the into different adjustment holes. The top holes will allow the least amount of inversion angle.
- Page 13 OPERATIONAL INSTRUCTIONS USING THE PRO INVERSION SYSTEM Start by lying fully back on the bed with your hands at your side, or resting on your thighs. Keeping your hands close to your body begin to raise your arms slowly allowing the table to rotate backward.
- Page 14 OPERATIONAL INSTRUCTIONS SUGGESTIONS FOR USE Begin slowly: invert with the least amount of inversion angle to begin with. Stay inverted only as long as you are comfortable. Return upright slowly. Make gradual changes: increase the angle only if it is comfortable. Increase the angle only one adjustment hole at a time.
-
Page 15: Storage
STORAGE Elite Inversion System is designed to fold for easy storage. You can store Elite Inversion System your as illustrated. Please follow the following process: STEP 1: LOCKING KNOB(36) Loosen and pull out the SPRING PIN(35). HEIGHT ADJUSTMENT Now, slide the BEAM(10) MAIN FRAME( into the... -
Page 16: Product Parts Drawing
PRODUCT PARTS DRAWING BACK FRONT... -
Page 17: Parts List
PARTS LIST DIAGRAM# PART NAME Front Frame Left Rear Frame Right Rear Frame Base Frame Handrail Height Adjustment Beam Footrest Adjustment Knob Heel Holder Tube Heel Holder Bracket Heel Holder Inner Pad Tube Outer Pad Tube Foam Pad Left Lever Cover Right Lever Cover Rear Lever Cover Corner cap... - Page 18 PARTS LIST DIAGRAM# PART NAME Bolt, Button Head (M6 x 1 x 47mm) Bolt, Button Head (M6 x 1 x 55mm) Bolt, Button Head (M8 x 1.25 x 15mm) Bolt, Button Head (M8 x 1.25 x 50mm) Bolt, Button Head (M8 x 1.25 x 55mm) Nylock Nut (M6 x 1) Nylock Nut (M8 x 1.25) Washer (M6 x...
-
Page 19: Warranty
To implement this limited warranty, send a written notice stating your name, date, and place of purchase and a brief description of the defect along with your receipt to Stamina Products, Inc. P.O. Box 1071, Springfield Missouri, USA, 65801-1071 or call us at 1 (800) 375-7520. If the defect is covered under this limited warranty, you will be requested to return the product or part to us for free repair or replacement at our option. -
Page 20: Notes
NOTES... - Page 21 NOTES...
-
Page 22: Fax/Mail Ordering Form
Department will be able to assist you with your problem and the part will be mailed directly to your house. TELEPHONE ONLINE MAIL CUSTOMER SERVICE CUSTOMER SERVICE CUSTOMER SERVICE STAMINA PRODUCTS, INC. Tel: 1 (800) 375-7520 Fax: (417) 889-8064 parts@staminaproducts.com ATTN: Customer Service cust-srvc@staminaproducts.com P.O. Box 1071 www.staminaproducts.com...
