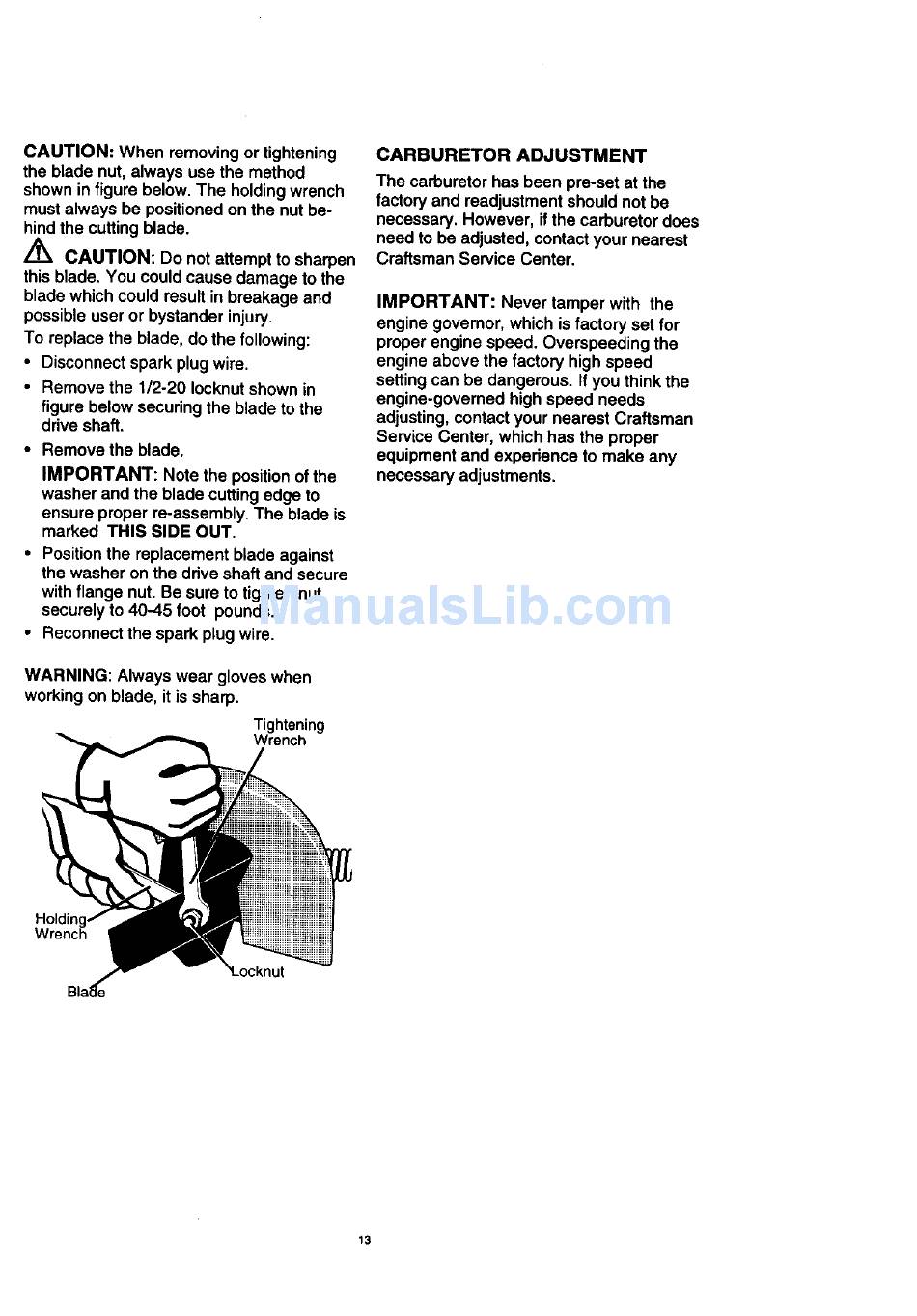

CAUTION: When removing or tightening
the blade nut, always use the method
shown in figure below. The holding wrench
must always be positioned on the nut be-
hind the cutting blade.
/_ CAUTION: Do not attempt to sharpen
this blade. You could cause damage to the
blade which could result in breakage and
possible user or bystander injury.
To replace the blade, do the following:
• Disconnect spark plug wire.
• Remove the 1/2-20 Iocknut shown in
figure below securing the blade to the
drive shaft.
• Remove the blade.
IMPORTANT: Note the position of the
washer and the blade cutting edge to
ensure proper re-assembly. The blade is
marked THIS SIDE OUT.
• Position the replacement blade against
the washer on the drive shaft and secure
with flange nut. Be sure to tighten nut
securely to 40-45 foot pounds.
• Reconnect the spark plug wire.
WARNING: Always wear gloves when
working on blade, it is sharp.
Tightening
Wrench
CARBURETOR ADJUSTMENT
The carburetor has been pre-set at the
factory and readjustment should not be
necessary. However, if the carburetor does
need to be adjusted, contact your nearest
Craftsman Service Center.
IMPORTANT: Never tamper with the
engine governor, which is factory set for
proper engine speed. Overspeeding the
engine above the factory high speed
setting can be dangerous. If you think the
engine-governed high speed needs
adjusting, contact your nearest Craftsman
Service Center, which has the proper
equipment and experience to make any
necessary adjustments.
Wrent
ut
Bla_e
13
