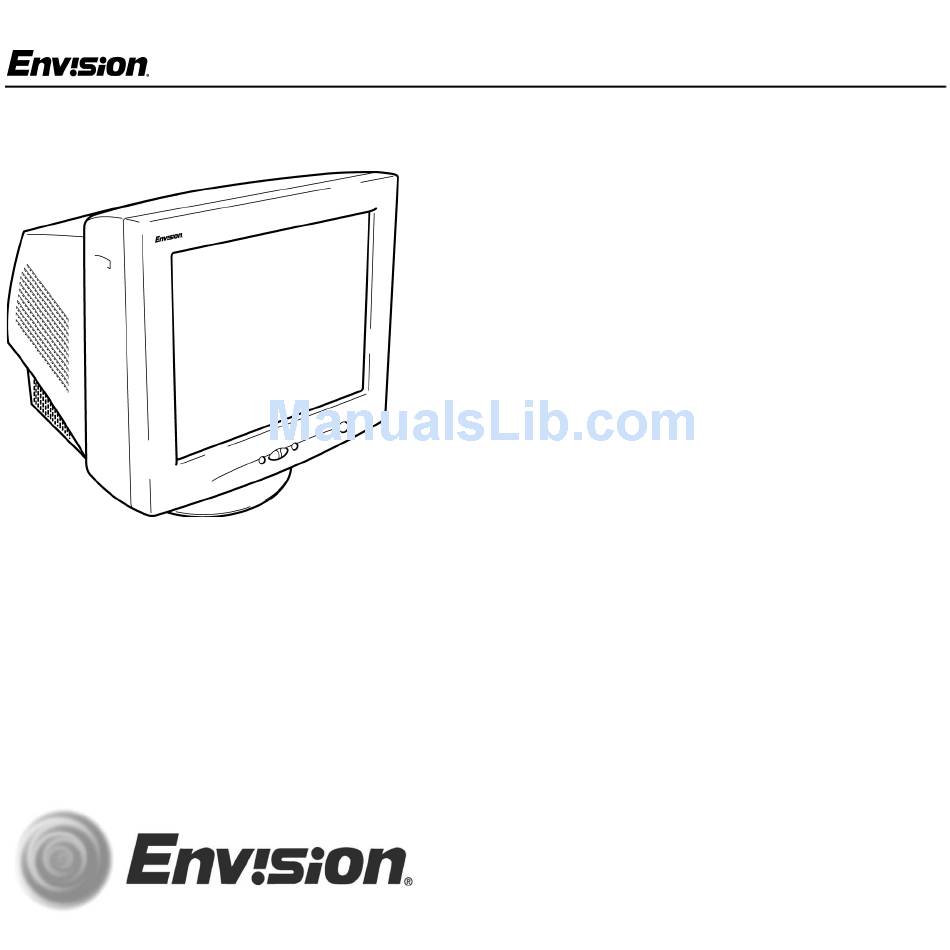

- Page 1 EN-985e EN-985e 19 inch Flat CRT Color Monitor User’s Manual by Envision Peripherals, Inc. www.ENVISIONmonitor.com Before operating your monitor, please read this manual thoroughly. EN-985e 31MY02...
-
Page 2: For Your Safety
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. EN-985e For Your Safety Notice 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. - Page 3 • Disconnect the power cord to stop the power supply to the monitor. EN-985e For Your Safety • The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin.
-
Page 4: General Notes
@75Hz • EPA ENERGY STAR Package Contents The box that your monitor was shipped in should have included the following items: 1. EN-985e Color Monitor 2. Power Cord 3. Quick Start Guide 4. Booklet (containing Warranty and Safety information) EN-985e ®... -
Page 5: Before You Operate The Monitor
Before You Operate the Monitor EN-985e Installing & Removing the Base EN-985e 31MY02... - Page 6 3. Plug the other end of the power cord into a grounded AC outlet or UL-approved power strip. EN-985e Caution: Make sure the power cord is the correct type that is required in your area. This monitor...
-
Page 7: Connecting The Wires Using An Optional Power Cord (Not Supplied)
CEE-22 terminated connectors (see illustration above). EN-985e Follow these steps: 1. Connect the built-in video cable into the 15-pin connector on the back of your computer and tighten the two screws. -
Page 8: Front Panel Buttons
Contrast: Press this button to adjust the picture’s contrast. If the OSD window is open, this button allows you to move within the window and select desired functions. EN-985e Operating Instructions MENU: Press this button to open the OSD window or select a highlighted function. -
Page 9: Adjusting The Osd Settings
3. Press MENU to open the function’s window. 4. Press the < or > buttons to change the settings of the function. EN-985e Operating Instructions 5. To save and exit, press the EXIT icon or leave the monitor alone for 10 seconds. If you want to adjust any other function, repeat steps 2-4. -
Page 10: Plug & Play Ddc1/2B Feature
EDID information. The DDC2B is a bidirectional data channel based on the I²C protocol. The host can request EDID information over the DDC2B. EN-985e Operating Instructions Windows INF Driver File Most computers will automatically configure your monitor to work with your computer. -
Page 11: Technical Support (Faq)
Screen image is not centered or sized properly Picture has color defects (white does not look white) EN-985e Technical Support (FAQ) Possible Solution • Make sure the power button is ON. • Make sure the power cord is properly connected to a grounded power outlet and to the monitor. -
Page 12: Specifications
Preset Display area 13.7” (346 mm) X 10.3” (260 mm) Dot Clock 200 MHz Maximum Resolution 1600 x 1200 pixels Plug & Play VESA DDC1/2B TM EN-985e Appendix Input Video Separate Sync. H/V Sync. H-Frequency V-Frequency Input Video Signal... - Page 13 Specifications (continued) Environmental Operating Temp: Considerations 32° to 104°F (0° to 40°C) ambient Operating Humidity: 10% to 85% Signal Cable Attached Mini D-sub 15 Male Optimal Viewing Mode: 1280 x 1024 @ 85 Hz EN-985e Appendix EN-985e 31MY02...
-
Page 14: Factory Preset Timing Table
Factory Preset Timing Table Standard VESA / 85 VESA / 75 EN-985e Appendix Resolution Horizontal (in pixels) Frequency 720 × 400 31.5 kHz 640 × 480 31.5 kHz 640 × 480 43.3 kHz 800 × 600 53.7 kHz 1024 × 768 68.7 kHz... -
Page 15: Connector Pin Assignment
Connector Pin Assignment Pin Number EN-985e Appendix Description Pin Number Green Blue Ground Ground R-Ground G-Ground B-Ground EN-985e Description Ground Monitor Ground DDC-Serial Data H-Sync V-Sync DDC-Serial Clock 31MY02...
