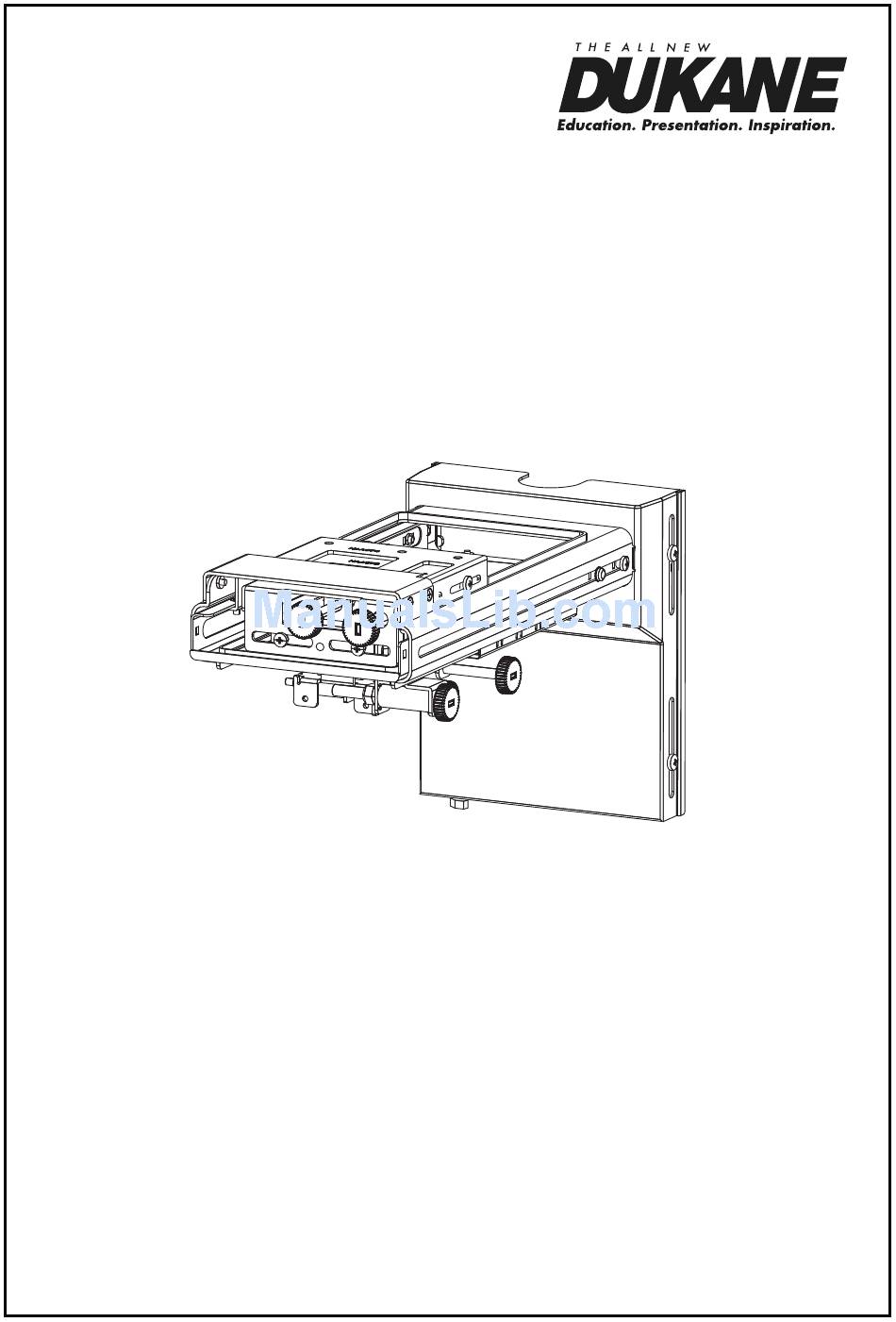

LCD Data Video Projector
MODEL 8104HW-WALLARM
Information in this Guide may change due to product improvements. To obtain the latest
manuals, literature, and software please visit the Dukane web site at; www.dukane.com/av
and look at the specific model SUPPORT or DOWNLOADS section.
DUKANE CORP AV SERVICE DEPT
2900 Dukane Drive
St Charles, IL 60174
800-676-2487 / 630-762-4032
Fax 630-584-5156
avservice@dukane.com
www.dukane.com/av
User's Manual
403-8104HW-WALLARM-Manual-00

Advertisement

Table of Contents
loading

Summary of Contents for Dukane 8104HW-WALLARM

  • Page 1 MODEL 8104HW-WALLARM Information in this Guide may change due to product improvements. To obtain the latest manuals, literature, and software please visit the Dukane web site at; www.dukane.com/av and look at the specific model SUPPORT or DOWNLOADS section. DUKANE CORP AV SERVICE DEPT...
  • Page 3: Table Of Contents

    ● The content of this manual and the specifications of the product it describes are subject to change without prior notice. Disclaimer ● Note that Dukane will accept no liability whatsoever for injuries and damages arising from incorrect use or handling that exceeds normal operating limits. Table of Contents Disclaimer ..........
  • Page 4: Outline And Relevant Models

    HAS-K250 Outline and Relevant Models This product is designed to mount a LCD projector on a wall. Supported Dukane LCD projector models: 8104HW CP-A220N(CP-A220NM) CP-A300N(CP-A300NME/G) ED-A220N(ED-A220NM) Installation Precautions Installation of this product requires special technical skills. Ask your dealer or service center (for details, see the User’s Manual supplied with the LCD projector) to handle the installation work.
  • Page 5: To The Customer

    HAS-K250 WARNING To the customer ■ Do not attempt to install the projector yourself. Have your dealer or service center handle all installation work. Note that will accept no liability whatsoever for accidents or injuries resulting from an incorrect installation or improper use. ■...
  • Page 6: Contents Of This Package

    HAS-K250 Contents of this package Check that the items listed in the table below are included in this package. If any are missing, please contact your dealer immediately. (The fasteners (screws, etc.) required for wall mounting are not supplied with the wall mount unit. Select fasteners that suit the structure of the wall to ensure they will properly support the LCD projector and the wall mount unit.) Part names in the figures on the following pages are indicated by the symbols given in the table below.
  • Page 7: Installation Procedure

    HAS-K250 Installation procedure Remove the shipping screws from the arm assembly (A). The arm assembly (A) is assembled before shipping. Before attaching the arm assembly to a wall, remove the two shipping screws (M5 screws with spring washer and flat washer) as shown in the figure below. Shipping screw (M5 screw with spring washer and flat washer) Shipping screw...
  • Page 8: Removing Base Bracket (O)

    HAS-K250 Remove the base bracket (O) from the arm assembly (A). Before attaching the arm assembly to a wall, remove the screws to disassemble it as shown in the figure below. Before disassembly, place the arm assembly on a mat or the protective plastic it was shipped in to prevent damaging the floor or the bracket.
  • Page 9: Attaching The Base Bracket (O) To The Wall

    HAS-K250 Attach the base bracket (O) to a wall using the anchor bolts (M10). The holes in the base bracket (O) are oval to permit horizontal adjustment. For details on the length and number of the anchor bolts (M10) that are required, see “Tools needed for installation”...
  • Page 10 HAS-K250 Base bracket attachment diagram Note: Unit: mm (inches) The wall hole center is 42.5 mm (1.67 inches) to the right of the screen center. Unit: mm (inches) Wall hole center Screen center Amount of vertical adjustment 42,5 (1,67) 136 (5,35) Screen center Screen center (*1)
  • Page 11: Screen Sizes When Used With Hitachi Star Board

    HAS-K250 4:3 screen (Full screen: Reference value for 1,024 × 768 pixel image.) (Future models) Diagonal size (inches) mm (inches) mm (inches) mm (inches) mm (inches) mm (inches) 96 (3,8) 281 (11,1) 1196 (47,1) 188 (7,4) 396(15.6) 161 (6 3) 317 (12,5) 1384 (54,5) 224 (8,8)
  • Page 12 HAS-K250 Template sheet usage Determining location of wall holes Place the template sheet (J) where you want to project the image. V ertical orientation: Align the top of the sheet with the upper edge of the image you want to project. Horizontal orientation: Align with the screen center.
  • Page 13 HAS-K250 Adjusting arm length Arrows at the right and left sides of the template sheet (J) indicate the distance from the screen surface to the back of the projector. During rough adjustments of arm length, adjust it according to the dimension of distance from the screen surface to the back of the projector.
  • Page 14: Attaching The Arm (M)

    HAS-K250 Attach the arm (M) to the base bracket (O). Insert the tab at the top of the arm (M) in the groove at the top of the base bracket (O). Then insert the U-groove at the bottom of the arm (M) in the groove of the vertical adjusting nut in the base bracket. Place the tabs (rear of arm) in the grooves.
  • Page 15: Attaching Lcd Projector

    HAS-K250 Attach the LCD projector to which the bracket (B) has been attached to the adjusting block (Q). Tighten the four M4 x 8 round head screws (H). Tightening torque: 0.98 N•m (10 kgf•cm) (LCD projector front panel) (LCD projector rear panel) WARNING ■...
  • Page 16: Adjustments

    HAS-K250 Adjustments Turn the projector on and project an image to make adjustments. -1. Project an image, adjust the image settings and focus on the LCD projector. • Adjust the focus. • Select MIRROR. • Set the D-ZOOM to its maximum value (full screen). •...
  • Page 17: Image Adjustments

    HAS-K250 Adjust the image. -1. Loosen the securing screws. (at the eight locations indicated by the arrows in the figure below) -2. Rough adjustment of image size. Note: Do not loosen the screw on 1. Loosen the screw on the side of the arm. the right and the two screws on the opposite side.
  • Page 18 HAS-K250 -3. Make a rough focus adjustment. For details, see the User’s Manual for the LCD projector. -4. Make fine adjustments. Follow the steps below to turn the adjusting screws and adjusting knobs to adjust the image. 1. Fine adjustment of horizontal position 2.
  • Page 19 HAS-K250 7. Fine adjustment of vertical position Note: Do not loosen these three screws. 1. Loosen the screw on on the lower right side. 2. Turn the height adjusting screw to adjust the height. 3. After completing adjustments, retighten the loosened screw.
  • Page 20: Installing Exterior Parts

    HAS-K250 Installing exterior parts Procedure for installing exterior parts -1. The knobs indicated by the arrows can be removed. Place them on the projections inside the front cap (C) for storage. Adjusting knobs WARNING ■ Adjusting knobs are small parts that could be swallowed by children and pets and should be kept out of their reach.
  • Page 21 HAS-K250 -2. Attach the front cap (C) at the front end of the arm (M). Engage the left, right and center claws. The adjusting knobs can be removed. Place them on the projections inside the front cap (C) for storage. Adjusting knobs -3.
  • Page 22 HAS-K250 -5. Attach the arm cover (E) to the arm (M). Insert the eight claws in the arm cover (E) in the Note: eight holes in the arm (M). When the arm (M) will be used in retracted mode, insert the claws at the four locations shown in the figure.
  • Page 23: Adjustment Precautions

    HAS-K250 Adjustment precautions • Roll down screens and other screens that are not perfectly flat tend to substantially distort the projection surface and cannot be used. Use board screens or other flat screens. Bead-type screens with a high screen gain are not suitable for this projector. Use of a matte screen with a wide viewing angle and a gain of about 1.0 is recommended.
  • Page 24: Adjustment Specifications

    Fine adjustment of ±20 mm (0.79 inches) page 16 image size Fine adjustment of ±30 mm (1.18 inches) page 17 vertical position DUKANE CORP AV SERVICE DEPT 2900 Dukane Drive St Charles, IL 60174 800-676-2487 / 630-762-4032 Fax 630-584-5156 avservice@dukane.com www.dukane.com/av...
