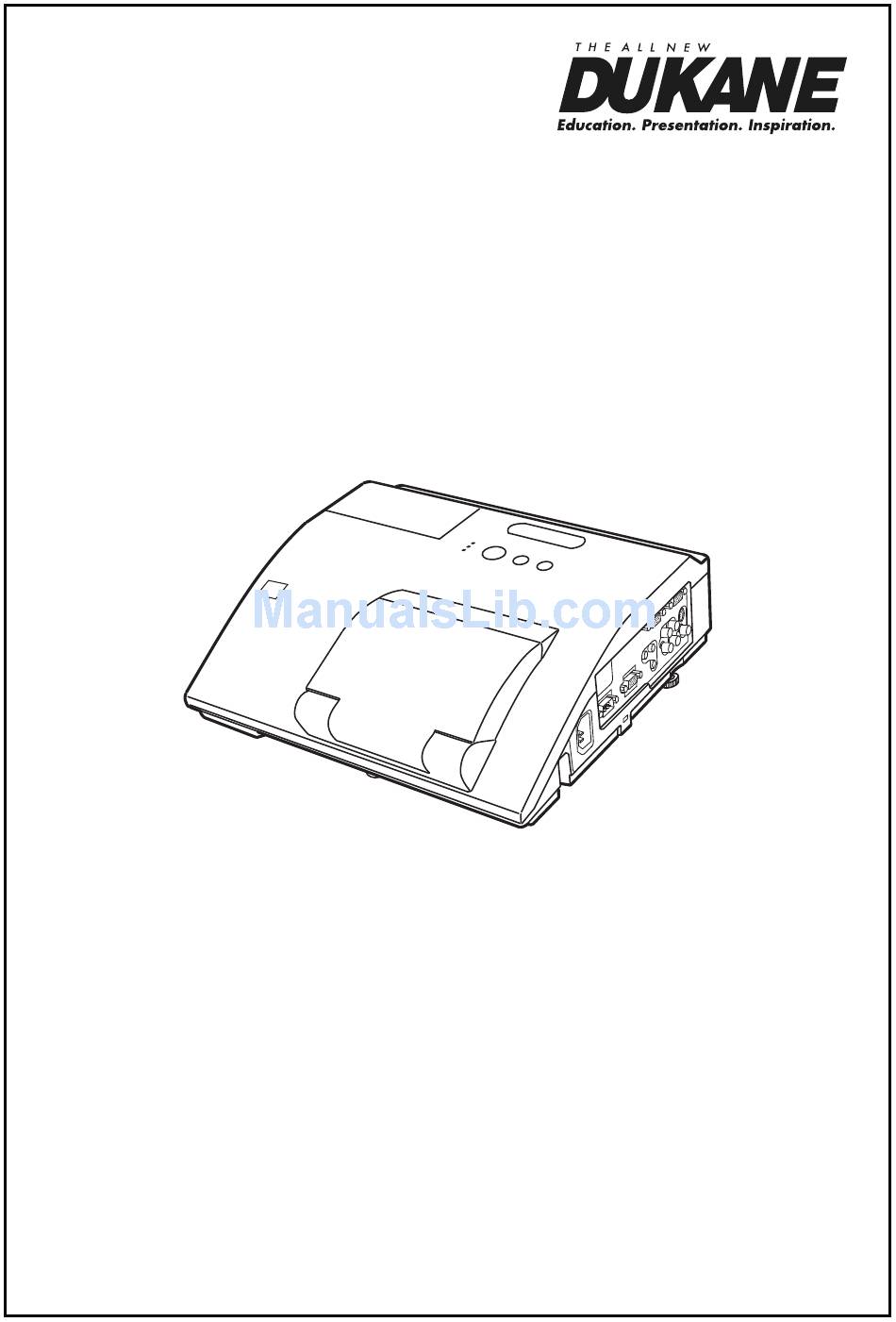

Data Video LCD - Interactive
WXGA UST Projector
Concise User's Manual
Information in this Guide may change due to product improvements. To obtain the latest
manuals, literature, and software please visit the Dukane web site at; www.dukane.com/av
and look at the specific model SUPPORT or DOWNLOADS section.
DUKANE CORP AV SERVICE DEPT
2900 Dukane Drive
St Charles, IL 60174
800-676-2487 / 630-762-4032
Fax 630-584-5156
avservice@dukane.com
www.dukane.com/av
MODEL 8107HWI
403-8107HWI-Concise-00

Advertisement

Table of Contents
loading

Related Manuals for Dukane 8107HWI

Summary of Contents for Dukane 8107HWI

  • Page 1 MODEL 8107HWI Information in this Guide may change due to product improvements. To obtain the latest manuals, literature, and software please visit the Dukane web site at; www.dukane.com/av and look at the specific model SUPPORT or DOWNLOADS section. DUKANE CORP AV SERVICE DEPT...

  • Page 3: Table Of Contents

    Projector 8107HWI User's Manual (concise) Thank you for purchasing this projector. Please read through this manual before using this product, in order to use safely and utilize well the product. WARNING ►Before using this product, be sure to read all manuals for this 19) to read the manuals in the CD.

  • Page 4: First Of All

    First of all Entries and graphical symbols explanation The following entries and graphical symbols are used for the manuals and the product as follows, for safety purpose. Please know their meanings beforehand, and heed them. WARNING This entry warns of a risk of serious personal injury or even death. CAUTION This entry warns of a risk of personal injury or physical damage.

  • Page 5: Regulatory Notices

    Regulatory notices About Electro-Magnetic Interference This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This product may cause interference if used in residential areas. Such use must be avoided unless the user takes special measures to reduce electromagnetic emissions to prevent interference to the reception of radio and television broadcasts.

  • Page 6: About Waste Electrical And Electronic Equipment

    Regulatory notices (continued) About Waste Electrical and Electronic Equipment The mark is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE). The mark indicates the requirement NOT to dispose the equipment including any spent or discarded batteries or accumulators as unsorted municipal waste, but use the return and collection systems available.

  • Page 7: Arrangement

    Arrangement Refer to table T-1 and figures F-1 and F-2 at the end of this manual to determine the screen size and projection distance. The values shown in the table are calculated for a full size screen: 1280 x 800 Screen size (diagonal) b1 , b2 Projection distance (±8%)

  • Page 8: Connecting With Your Devices

    Connecting with your devices Be sure to read the manuals for devices before connecting them to the projector. Make sure that all the devices are suitable to be connected with this product, and prepare the cables required to connect. Refer to figures F-3 to F-6 at the back of this manual.

  • Page 9: Connecting Power Supply

    Connecting with your devices (continued) NOTE • If a loud feedback noise is produced from the speaker, move the microphone away from the speaker. • This projector doesn't support plug-in power for the microphone. • The COMPUTER IN1/2 port can support a component signal also. The specific adapter or the specific cable is required for a component video input to the projector.

  • Page 10: Using The Cable Cover

    Using the cable cover Utilize the cable cover as the guard and blind for the connecting parts. Connect the signal cables and the power cord to the projector first. Combine parts as shown in figure, and assemble the cable cover. Insert the three knobs on the cable cover into the three holes on the projector as shown in the figure.

  • Page 11: Turning On The Power

    Turning on the power STANDBY/ON button POWER indicator Make sure that the power cord is firmly and correctly connected to the projector and the outlet. Make sure that the POWER indicator is steady orange. Confirm that there is nothing that the MY SOURCE/ VIDEO COMPUTER...

  • Page 12: Adjusting The Projector's Elevator

    Adjusting the projector's elevator The projector has Front foot for inclinations and Rear foot for horizontals. Spacers on the each elevator foot are installed at the time of shipment, and projector is in a condition to be able to just project. If necessary, detach the spacer, and the elevator feet can be manually twisted to make more precise adjustments.
  • Page 13 Focusing ASPECT button Use the FOCUS + and FOCUS – buttons on the projector or remote control to adjust the MY SOURCE/ VIDEO COMPUTER DOC.CAMERA VOLUME+/- button ASPECT AUTO SEARCH BLANK screen focus. PAGE VOLUME MAGNIFY FREEZE DOWN Selecting an aspect ratio KEYSTONE button KEYSTONE MY BUTTON...

  • Page 14: Turning Off The Power

    Turning off the power STANDBY/ON button Press the STANDBY/ON button on the POWER indicator projector or the remote control. The message “Power off?” will appear on the screen for about 5 seconds. Confirm that there is nothing that the lens door hits while closing. Press the STANDBY/ON button again while the MY SOURCE/ VIDEO...

  • Page 15: Replacing The Lamp

    Replacing the lamp A lamp has finite product life. Using the lamp for long periods of time could cause the pictures darker or the color tone poor. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. Preparation of a new lamp and early replacement are recommended.
  • Page 16 Replacing the lamp (continued) HIGH VOLTAGE HIGH TEMPERATURE HIGH PRESSURE WARNING ►The projector uses a high-pressure mercury glass lamp. The lamp can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them.

  • Page 17: Cleaning And Replacing The Air Filter

    Cleaning and replacing the air filter The air filter has two kinds of filters inside. Please check and clean the air filter periodically. When the indicators or a message prompts you to clean the air filter, comply with it as soon as possible.

  • Page 18: Preparing For The Remote Control

    Preparing for the remote control Please insert the batteries into the remote control before using it. If the remote control starts to malfunction, try to replace the batteries. If you will not use the remote control for long period, remove the batteries from the remote control and store them in a safe place.

  • Page 19: Replacing The Internal Clock Battery

    Replacing the internal clock battery This projector has internal clock that uses a battery. When the clock of the network function does not work correctly, please try solution by replacement of the battery: HITACHI MAXELL, part number CR2032 or CR2032H. Turn the projector off, and unplug the Battery Cover power cord.

  • Page 20: Caring For The Mirror And Lens

    Caring for the mirror and lens If the projection mirror or lens is flawed, soiled or fogged, it could cause deterioration of display quality. Please take care of the mirror and lens, being cautious of handling. Turn the projector off and unplug the power cord from the power outlet.

  • Page 21: Using The Cd Manual

    Using the CD manual The other manuals for this product are written into the included CD-ROM titled “User’s Manual (detailed)”. Before using the CD-ROM, please read the following to ensure the proper use. System requirements The system for using the CD-ROM requires the following. ®...

  • Page 22: Specifications

    Specifications Item Specification Product name Liquid crystal projector Liquid Crystal Panel 1,024,000 pixels (1280 horizontal x 800 vertical) Lamp 210W UHP Speaker Power supply AC 100-120 V/3.1 A, AC 220-240 V/1.6 A Power consumption AC 100-120 V:310 W, AC 220-240 V:300 W 5 ~ 35°C (Operating) Temperature range (Except for the use the interactive function.)

  • Page 23: Troubleshooting - Warranty And After-Service

    Troubleshooting - Warranty and after-service If an abnormal operation (such as smoke, strange odor or excessive sound) should occur, stop using the projector immediately. If a problem occurs with the projector, refer to “Troubleshooting” of “Operating Guide”, “Network Guide” or other related manuals, followed by performing the suggested checks. If this does not resolve the problem, please consult your dealer or service company.

  • Page 24: Appendix: Pen Operation Items

    Appendix: Pen operation Items • On a horizontal surface • Mounted on the wall or ceiling Projection distance Screen height Screen size (diagonal) inch inch inch inch type(inch) 0.120 0.426 16.8 0.295 11.6 1.102 43.4 0.188 0.494 19.5 0.332 13.1 1.274 50.2 0.256...
  • Page 25 Access point Computer VCR/DVD/Blu-ray Disc player COMPUTER IN2 COMPUTER IN1 HDMI USB TYPE B TYPE A DC5V 0.5A S-VIDEO AUDIO OUT AUDIO IN1 AUDIO IN3 MONITOR OUT CONTROL VIDEO AUDIO IN2 Microphone Speakers Monitor system (with an amplifi er) RGB IN USB storage device COMPUTER IN2...
  • Page 26 Computer Access point RS-232C COMPUTER IN2 COMPUTER IN1 HDMI USB TYPE B TYPE A DC5V 0.5A S-VIDEO AUDIO IN1 AUDIO IN3 AUDIO OUT MONITOR OUT CONTROL VIDEO AUDIO IN2 Computer DISPLAY COMPUTER IN2 COMPUTER IN1 HDMI USB TYPE B TYPE A DC5V 0.5A S-VIDEO...
  • Page 27 [unit: mm] 4 25...
  • Page 28 DUKANE CORP AV SERVICE DEPT 2900 Dukane Drive St Charles, IL 60174 800-676-2487 / 630-762-4032 Fax 630-584-5156 403-8107HWI-Concise-00 avservice@dukane.com www.dukane.com/av...
