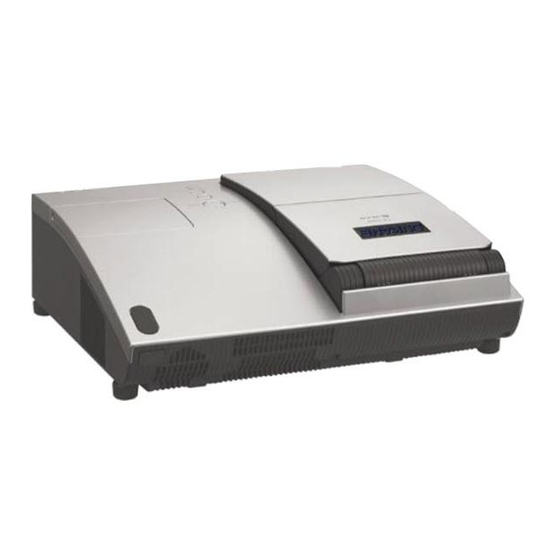

Projector
8100
User's Manual (concise)
Thank you for purchasing this product.
Please read the manuals for the product beforehand, in order to use the product safely
and more effectively. To read the manuals in the CD, see the " 6. Using the CD
manual " (  17).
WARNING
■ Before using this product, be sure to read all the manuals for the product. Heed all the
warnings and cautions in the manuals or on the product. Follow all the instructions in the
manuals or on the product. Retain the manuals in a safe place for future reference.
Contents
. Checking the contents ...................2
2. Arrangement ..................................2
6. Using the cable cover ....................6
8. Starting the projector .....................8
0. Operation .....................................9
6. Using the CD manual ................7
7. Regulatory notices .....................8
19. Specifications ............................20


Advertisement

Table of Contents
loading

Related Manuals for Dukane ImagePro 8100

Summary of Contents for Dukane ImagePro 8100

  • Page 1: Table Of Contents

    Projector 8100 User's Manual (concise) Thank you for purchasing this product. Please read the manuals for the product beforehand, in order to use the product safely and more effectively. To read the manuals in the CD, see the “ 6. Using the CD manual ”...

  • Page 2: Checking The Contents

    1. Checking the contents Check that all the following items are included. If any items are missing, tell your dealer soon. (1) Projector (2) Remote control with two batteries (3) Power cord (4) Computer cable (5) Cable cover with a screw (6) User’s manuals (a booklet, a CD) (7) Security label WARNING...
  • Page 3 2. Arrangement (continued) Refer to the following for the projection distance. The values shown in the table are calculated for a full size screen: 1024x768. Table for 4:3 screen (±8%) inch inch inch inch inch * 0.5 *(0.2) 38.3 24.4 98.2 39.8 25.2...

  • Page 4: Connecting With Your Devices

    3. Connecting with your devices Before connecting them, make sure that the devices are suitable to connect with this projector, and prepare the required signal cables and adapters. Consult your dealer if the accessory that is not included in this product is required. Refer to the following for connection.

  • Page 5: Connecting With A Power Supply

    4. Connecting with a power supply Before connection, confirm that the power outlet AC Inlet is suitable for this projector and the power cord. Then follow the procedure below for connection. Insert the end of the power cord with the socket into the AC inlet of the projector.

  • Page 6: Using The Security Bar And Slot

    5. Using the security bar and slot This projector has the security bar for a commercial anti-theft chain or wire up to 10 mm Security slot in diameter, and also the security slot for the Kensington lock. For details, see the manual of the security tool. NOTE •...

  • Page 7: Preparing For The Remote Control

    7. Preparing for the remote control The accessory remote control needs batteries. Use the batteries included in this product or two new batteries of the specified type: HITACHI MAXELL , part number LR6 or R6P . Follow the following procedure. Remove the battery cover in the back of the remote control.

  • Page 8: Starting The Projector

    8. Starting the projector Turn on the projector and the connected devices. Turn on the projector ahead of other connected devices, unless mentioned in the manuals. For this projector, follow the procedure below. POWER indicator Press the side marked " I " of the power switch, STANDBY/ON button as the power-on position.

  • Page 9: Adjusting The Projection Position

    9. Adjusting the projection position This projector has four elevator feet in the bottom. Use them to adjust the projection position. max. 43 mm Elevator feet CAUTION ■ Do not lengthen the elevator feet to 43 mm or more. The foot lengthened exceeding the limit may come off from the projector, and result in an injury.

  • Page 10: Selecting An Aspect Ratio

    0. Operation (continued) Selecting an aspect ratio ASPECT button Each time you press the ASPECT button VIDEO COMPUTER SEARCH on the remote control, it switches the VOLUME button ASPECT AUTO BLANK aspect ratio of the image, in turn. MAGNIFY HOME PAGE UP VOLUME MUTE button...

  • Page 11: Turning The Projector Off

    11. Turning the projector off Turn the projector off after turning off the other connected devices, unless mentioned in the manuals. For this projector, follow the procedure below. Press the STANDBY/ON button (on the projector or remote control). The “ Power off? ” dialog appears on the screen POWER indicator for about 5 seconds.

  • Page 12: Replacing The Lamp

    12. Replacing the lamp The projection lamp has finite product life that is different in each lamp. Please replace the lamp as soon as possible when the pictures appear dark, or when the color tone is poor. Using the lamp for long periods of time may make the lamp burned out or broken. Preparation of a spare lamp and early replacement are recommended.
  • Page 13 2. Replacing the lamp (continued) NOTE • Please reset the lamp time only when you have replaced the lamp, for a suitable indication about the lamp. High High High WARNING Voltage Temperature Pressure ■ The projector uses a high-pressure mercury glass lamp. The lamp can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time.

  • Page 14: Maintaining The Air-Filter

    13. Maintaining the air-filter Please check and clean the air-filter periodically, for keeping normal ventilation. When the indicators or a message prompts you to clean the air-filter, comply with it as soon as possible. When it is damaged or too soiled, replace the filter unit. To prepare the new filter unit, call your dealer and tell the type number: QD60122 Turn the projector off and unplug the power cord from the power outlet.

  • Page 15: Caring For The Mirror And Lens

    14. Caring for the mirror and lens If the projection mirror or lens is flawed, soiled or fogged, it could cause deterioration of display quality. Please take care of the mirror and lens, being cautious of handling. Turn the projector off and unplug the power cord from the power outlet.

  • Page 16: Replacing The Clock Battery

    15. Replacing the clock battery This projector has internal clock that uses a battery. When the clock of the network function does not work correctly, please try solution by replacement of the battery: HITACHI MAXELL , part number CR2032 . Battery cover Turn the projector off and unplug the power cord from the power outlet.

  • Page 17: Using The Cd Manual

    16. Using the CD manual The detailed manuals for this product are written into the included CD titled “ User’s Manual (detailed) ”. Before using the CD, please read the following to ensure the proper use. System requirements The system for using the CD requires the following. Windows®: OS: Microsoft®...

  • Page 18: Regulatory Notices

    17. Regulatory notices WARNING: In the US Declaration of Conformity Trade name: Hitachi Model Number: CP-A100 Responsible Party: Hitachi America, Ltd. Address: 900 Hitachi Way, Chula Vist, CA 91914-3556 U.S.A. Telephone Number: +1.800.265-2141 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 19: Warranty And After-Service

    7. Regulatory notices (continued) Information for users applicable in European Union countries This symbol on the product or on its packaging means that your electrical and electronic equipment should be disposed at the end of life separately from your household wastes. There are separate collection systems for recycling in EU.

  • Page 20: Specifications

    19. Specifications Item Specifications Product name Liquid crystal projector Panel size 1.6 cm (0.63 type) Liquid Crystal Drive system TFT active matrix Panel Pixels 786,432 pixels (1024 horizontal x 768 vertical) Lens F=2.1 f=5.1 mm Lamp 220 W UHB Audio output Power supply AC 100-120V/3.6A, AC 220-240V/1.5A Power consumption...
