Smooth Fitness 835 User Manual

Motorized treadmill
Hide thumbs

Advertisement

Table of Contents

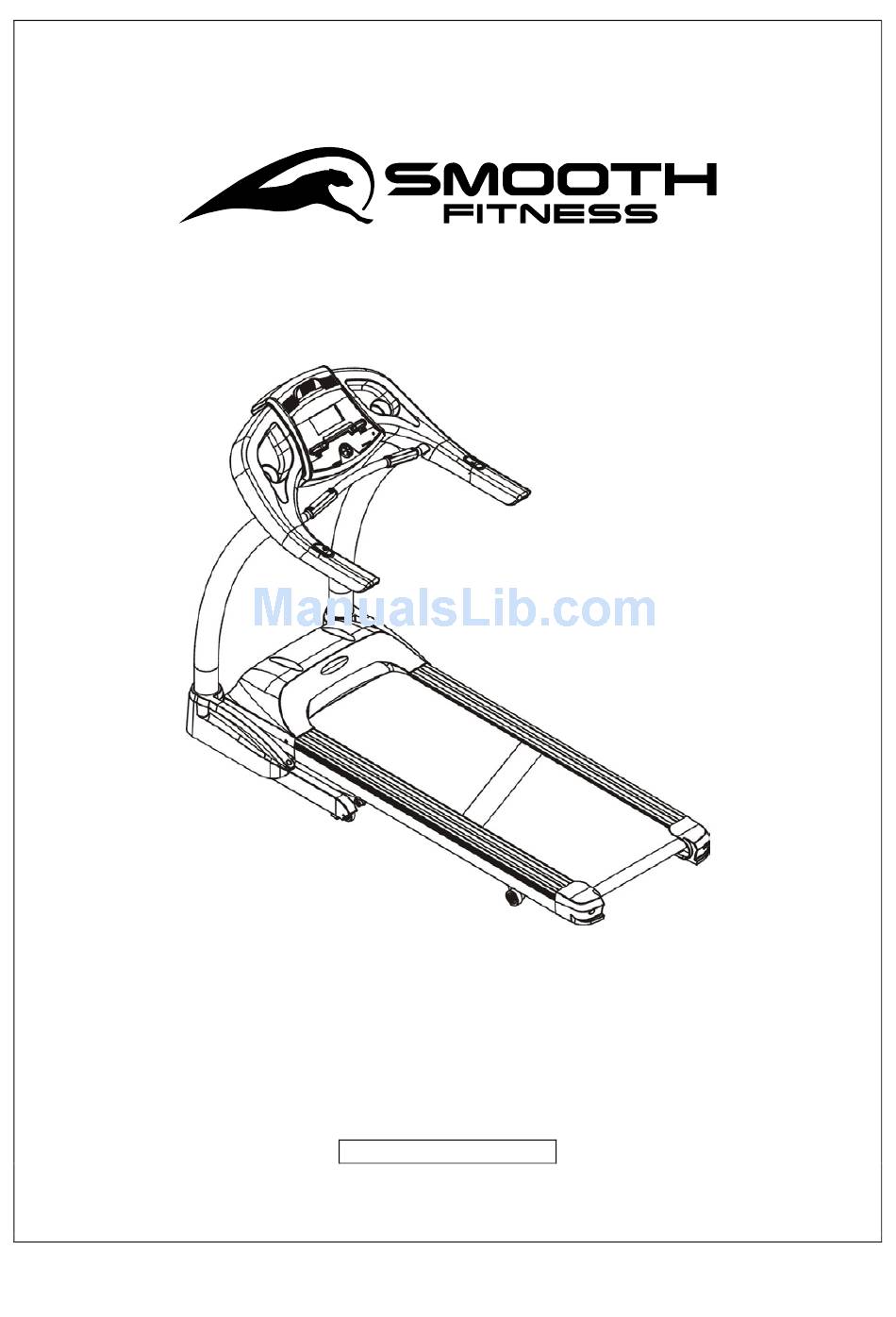

USER'S MANUAL
835 MOTORIZED TREADMILL
USER WEIGHT LIMITATION: 400lbs(181kgs).
SERIAL NUMBER (found on frame):

Advertisement

Table of Contents
loading

Related Manuals for Smooth Fitness 835

Summary of Contents for Smooth Fitness 835

  • Page 1 USER’S MANUAL 835 MOTORIZED TREADMILL USER WEIGHT LIMITATION: 400lbs(181kgs). SERIAL NUMBER (found on frame):...
  • Page 2 835i TREADMILL PRECAUTIONS For future service or related questions: Please staple your receipt and/or write in the name and phone number of the retail store where you purchased your treadmill. Name: ______________________________ Phone Number: ___________________ Receipt: ______________________ Precautions: WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and information before operating the treadmill.
  • Page 3 www.smoothfitness.com PRECAUTIONS Pour réparations futures ou questions connexes : Please staple your receipt and/or write in the name and phone number of the retail store where you purchased your treadmill. Name: ______________________________ Phone Number: ___________________ Receipt: ______________________ Précautions: AVERTISSEMENT : Pour réduire les risques de brûlures, d’incendie, de choc électrique ou de blessures aux personnes, lire les précautions importantes et l’information suivantes avant de se servir du tapis roulant.

  • Page 4: Power Requirements

    835i TREADMILL POWER REQUIREMENTS Power Requirements: IMPROPER CONNECTION OF THE EQUIPMENT GROUNDING CONNECTOR CAN RESULT IN THE RISK OF AN ELECTRIC SHOCK. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE MAN IF YOU ARE IN DOUBT AS TO WHETHER THE PRODUCT IS PROPERLY GROUNDED. DO NOT MODIFY THE PLUG PROVIDED WITH THE PRODUCT, IF IT WILL NOT FIT THE OUTLET;...
  • Page 5 www.smoothfitness.com POWER REQUIREMENTS Alimentation : UN MAUVAIS BRANCHEMENT DU CONNECTEUR DE MISE À LA TERRE DE L’ÉQUIPEMENT POURRAIT PROVOQUER UN CHOC ÉLECTRIQUE. EN CAS DE DOUTE, CONSULTER UN ÉLECTRICIEN OU UN RÉPARATEUR QUALIFIÉ POUR SAVOIR SI LE PRODUIT EST CORRECTEMENT MIS À LA TERRE. NE PAS MODIFIER LA FICHE FOURNIE AVEC LE PRODUIT. SI ELLE N’ENTRE PAS DANS LA PRISE, FAIRE INSTALLER UNE PRISE APPROPRIÉE PAR UN ÉLECTRICIEN PROFESSIONNEL.

  • Page 6: Before You Begin

    835i TREADMILL BEFORE YOU BEGIN Open the boxes: Open the boxes of your new equipment. Inventory all parts included in the boxes, and Supplied Hardware lists on page 7 for a full count of the parts included. If you are missing any parts or have any questions contact us directly at 888-800-1167 Gather your tools: Before you begin, make sure that you have gathered all the necessary tools you may require to assemble the unit...
  • Page 7 www.smoothfitness.com SUPPLIED COMPONENTS / SUPPLIED HARDWARE This list identifies the major components you will use to assemble this product. Description Qty. 835i -101 Treadmill Base 835i -212 Console Assembly 835i -311 Left Upright 835i -310 Right Upright 835i -309 Left Base Cover 835i -305 Right Base cover 835i -302...

  • Page 8: Complete Parts List

    835i TREADMILL COMPLETE PARTS LIST Item No. Description Qty. 835i -100 835i - Base Frame 835i - Horizontal Adjustment 835i - Front Mobile Wheel Cover 835i - Front Mobile Wheel 835i - M4x10mm Bolt 835i - M4x12mm Bolt 835i - Air Shock 835i - M8x30mm Bolt...
  • Page 9 www.smoothfitness.com COMPLETE PARTS LIST Item No. Description Qty. 835i - Right End Cap Left End Cap 835i - 835i - M4x15mm Bolt Lower Console Wire 835i - 835i - Power Cord Power Socket 835i - M3x8mm Bolt 835i - 835i - ON-OFF Switch Power Breaker 835i -...
  • Page 10 835i TREADMILL Item No. Description Qty. 835i -200 835i -201 Console frame 835i -202 Hand pulse upper cover 835i -203 Hand pulse lower cover 835i -204 Bolt M3*20mm 835i -205 Hand pulse plate 835i -206 Upper console cover 835i -207 Console housing 835i -208 Panel, console...
  • Page 11 www.smoothfitness.com COMPLETE PARTS LIST Item No. Description Qty. 835i -300 835i -301 Right handle bar 835i -302 Left handle bar 835i -303 Receiver 835i -304 M8 Flat Washer 835i -305 Right protective cover 835i -306 M8x15mm Bolt 835i -307 Upper motor cover 835i -308 M4x10mm Bolt 835i -309...

  • Page 12: Parts Diagram

    835i TREADMILL PARTS DIAGRAM MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED...
  • Page 13 www.smoothfitness.com PARTS DIAGRAM MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.
  • Page 14 835i TREADMILL PARTS DIAGRAM A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.

  • Page 15: Assembly - Please Read All Steps Before Beginning Your Work

    www.smoothfitness.com ASSEMBLY – PLEASE READ ALL STEPS BEFORE BEGINNING YOUR WORK. STEP 1: Assemble the Upright NOTE: Make sure all wires are recessed into the frame. DO NOT trap or pinch. DO NOT tighten bolts until STEP2. When attaching the Right upright (310) first attach the 8 pin data cable to the wire in the upright.
  • Page 16 835i TREADMILL ASSEMBLY STEP 2: Attach the Handle Bars (1). Take out right handle bar from carton, connect handle button wire (223). (2). Attach the Right and Left Handle Bar and secure using the M8x15mm Allen Head Bolt (306) with M8 Flat Washer (304). Speed Incline Tighten all bolts and fasteners now...
  • Page 17 www.smoothfitness.com ASSEMBLY STEP 3: Attach the Console to Left and Right Uprights (1) Connect Upper Console Wire (from console) and Lower Console Wire (from Right Upright) as shown below (222 to 144). Connect the adaptor wire (244 to 154). (2) Place the console housing over the Left and Right Uprights and secure using the 2 x M8x100mm Allen Head Bolt (312) with 2 x M8 Flat Washer (304) Insert the bolt through the upper hole.
  • Page 18 835i TREADMILL ASSEMBLY STEP 4: Tighten the Lower Upright Bolt and attach Lower Protective Cover (1) Fully tighten the M8x15mm Allen Head Bolt (308) to for STEP1. (2) Attach the Left and Right Protective Cover, and secure using M4x10mm Pan Head Screw (308).
  • Page 19 www.smoothfitness.com ASSEMBLY STEP 5: Attach power cord (145) to front of base from in diagram below.
  • Page 20 835i TREADMILL ASSEMBLY STEP 6: Insert Safety Key (218) into Bottom Center of Console prior to operation. Your treadmill will not Function with out the safety key.
  • Page 21 www.smoothfitness.com ASSEMBLY STEP 7: After assembly is complete, remove the foam spacer from the left and right side rails. Foam...
  • Page 22 835i TREADMILL ASSEMBLY How to fold and unfold the treadmill: Your treadmill can be folded up and unfold for space saving storage. To do this follow the instructions here: Fold Up 1. To fold the deck you first need to bring the treadmill to the lowest incline level and then remove the power cord 2.
  • Page 23 Your treadmill should not have to be lubricated usually within 3 months. Smooth Fitness recommends lubricating the walking deck a minimum of twice a year for light use (2 days a week) and four times a year for heavier use(3 times a week multiple users) Please visit www.smoothfitness.com...
  • Page 24 835i TREADMILL MAINTAINENCE To apply lubricant under the walking belt: 1. Position the walking belt so that the seam is located on top and in center of the walking board. 2. Insert the nozzle of the lubricant container under the belt 3.

  • Page 25: Important Steps

    www.smoothfitness.com IMPORTANT STEPS Warning: Before using this product, please consult your personal physician for a complete physical examination. Frequent and strenuous exercise should be approved by your doctor first. If any discomfort should result from your use of this product, stop exercising and consult your doctor. Proper usage of this product is essential. Please read your manual carefully before exercising.

  • Page 26: Muscle Chart

    835i TREADMILL MUSCLE CHART Targeted muscle groups: The exercise routine that is performed on this product will develop primarily lower body muscle groups. These muscle groups are shown in gray color on the chart below. MUSCLE GROUPS Shoulder muscles Calf muscles Pectoral muscles Trapezius muscles Bicep muscle...

  • Page 27: Stretching Routine

    www.smoothfitness.com STRETCHING ROUTINE Warm up and cool down: A successful exercise program consists of a warm-up, aerobic exercise, and a cool-down. Do the entire program at least two and preferably three times a week, resting for a day between workouts. After several months, you can increase your workouts to four or five times per week.
  • Page 28 835i TREADMILL STRETCHING ROUTINE Read carefully the following before using your treadmill ♦ Always stretch your muscles before exercise program. Warm up slowly by walking at a slow speed. Increase workout intensity gradually until you reach your desired workout pace. Decrease workout intensity gradually to an easy walk, allowing your heart rate to decrease to a normal situation.

  • Page 29: Computer Operation

    To set up your account, refer to the instructions in the Getting Started Guide contained in your Smooth Fitness customer care kit or visit www.my smoothtrainer.com *Not all Smooth Fitness products include the Smooth Customer Care Kit...
  • Page 30 835i TREADMILL COMPUTER OPERATION Dot-matrix Safety Key Pad If the safety key is not present the treadmill will not function...
  • Page 31 www.smoothfitness.com COMPUTER OPERATION Display Function: Program Displays program selection. Gender Displays set gender. M= Male, F=Female Calories Displays calories burned. Displays set age value. Heart Rate Displays hand grip and wireless Heart Rate reading. Weight Displays set weight value. Speed Displays the running speed.
  • Page 32 Virtual Fitness Trainer USB device. Once complete simply plug in the MY Smooth Virtual Fitness Trainer USB device to you compatible Smooth Fitness exercise machine. Displayed on the equipment will be , your name, weight height and age. Press “START” button to begin your workout, the console will record your exercise data automatically, every 20 seconds, to your MY Smooth Virtual Fitness Trainer USB device.
  • Page 33 www.smoothfitness.com COMPUTER OPERATION P2 Program: 1. Press 【Program Select】key to select 【PROGRAM】 then press enter to enter the program. There are 21 preset programs. 2. Press the Speed ㄧ / 十 to change the program 【 】、【 】、【 SPEED WEIGHT LOSS SPEED ROLLING HILLS SPEED 】、【...
  • Page 34 835i TREADMILL COMPUTER OPERATION SPEED TRAINING INTERVAL： Each Level speed value (incline=0) Seg. SPEED SUMMIT： Each Level speed value (incline=0) Seg. ENDURANCE TRAINING SPEED INTERVAL： Each Level speed value (incline=0) Seg.
  • Page 35 www.smoothfitness.com COMPUTER OPERATION SPEED STRENGTH： Each Level speed value (incline=0) Seg. COUNTRY RUN： Each Level speed value (incline=0) Seg. GRADUATING SPEED INTERVAL： Each Level speed value (incline=0) Seg.
  • Page 36 835i TREADMILL COMPUTER OPERATION INCLINE WEIGHT LOSS： Each Level incline value (speed=0.6mph) Seg. INCLINE ROLLING HILLS： Each Level incline value (speed=0.6mph) Seg. INCLINE TRAINING INTERVAL： Each Level incline value (speed=0.6mph) Seg.
  • Page 37 www.smoothfitness.com COMPUTER OPERATION ENDURANCE TRAINING INCLINE INTERVAL： Each Level incline value (speed=0.6mph) Seg. MOUNTAIN SUMMIT： Each Level incline value (speed=0.6mph) Seg. INCLINE STRENGTH： Each Level incline value (speed=0.6mph) Seg.
  • Page 38 835i TREADMILL COMPUTER OPERATION COUNTRY HIKE： Each Level incline value (speed=0.6mph) Seg. GRADUATING HILLS： Each Level incline value (speed=0.6mph) Seg. VALLEY RUN： Each Level speed & incline value Seg.
  • Page 39 www.smoothfitness.com COMPUTER OPERATION CROSS TRAINING： Each Level speed & incline value Seg. COMBINATION INTERVAL TRAINING： Each Level speed & incline value Seg.
  • Page 40 835i TREADMILL COMPUTER OPERATION CROSS COUNTRY： Each Level speed & incline value Seg. MOUNTAIN JOG： Each Level speed & incline value Seg.
  • Page 41 www.smoothfitness.com COMPUTER OPERATION P3 HRC(Heart Rate Control): 1. Press【Program Select】to select the【HRC】program and press enter. 2. There are 4 types of HRC program. TARGET H.R., FAT BURN, CARDIO, PERFORMANCE, press Speed ㄧ / 十 to select the desired HRC program then press【Enter】to confirm. 3.
  • Page 42 835i TREADMILL HANDLE BUTTONS Handle buttons: Speed button Incline button...
  • Page 43 www.smoothfitness.com MUSIC JACK USAGE NOTE: High speaker volume may interfere with the heart rate accuracy. Please decrease the speaker volume when you are using the heart rate function. ※ Warning: After removing the safety key, wait for 5 seconds to re-insert in. USB Charger：...

  • Page 44: Troubleshooting

    835i TREADMILL TROUBLESHOOTING SYMPTOM CAUSE SOLUTION Please check power input and fuse. A). Not plugged in. Contact your dealer if unit is plugged in, No power to display B). Power switch not activated powered on and circuit breaker is C). Power input circuit breaker blown. depressed.

  • Page 45: Limited Warranty

    Smooth Fitness will provide a replacement part free of charge if a defect is found during the Warranty period. Smooth Fitness may at its discretion, choose to provide any of following parts or repair options. In the event that a part is determined in need of replacement, upon receipt of the part by Smooth Fitness, Smooth Fitness may send out the part by UPS ground or another such carrier directly to the customer’s home.
  • Page 46 mooth Fitness 780 5 King of Prussia, PA 19406 Toll Free Customer Service: 1.888.800.1167 Website: www.smoothfitness.com...
