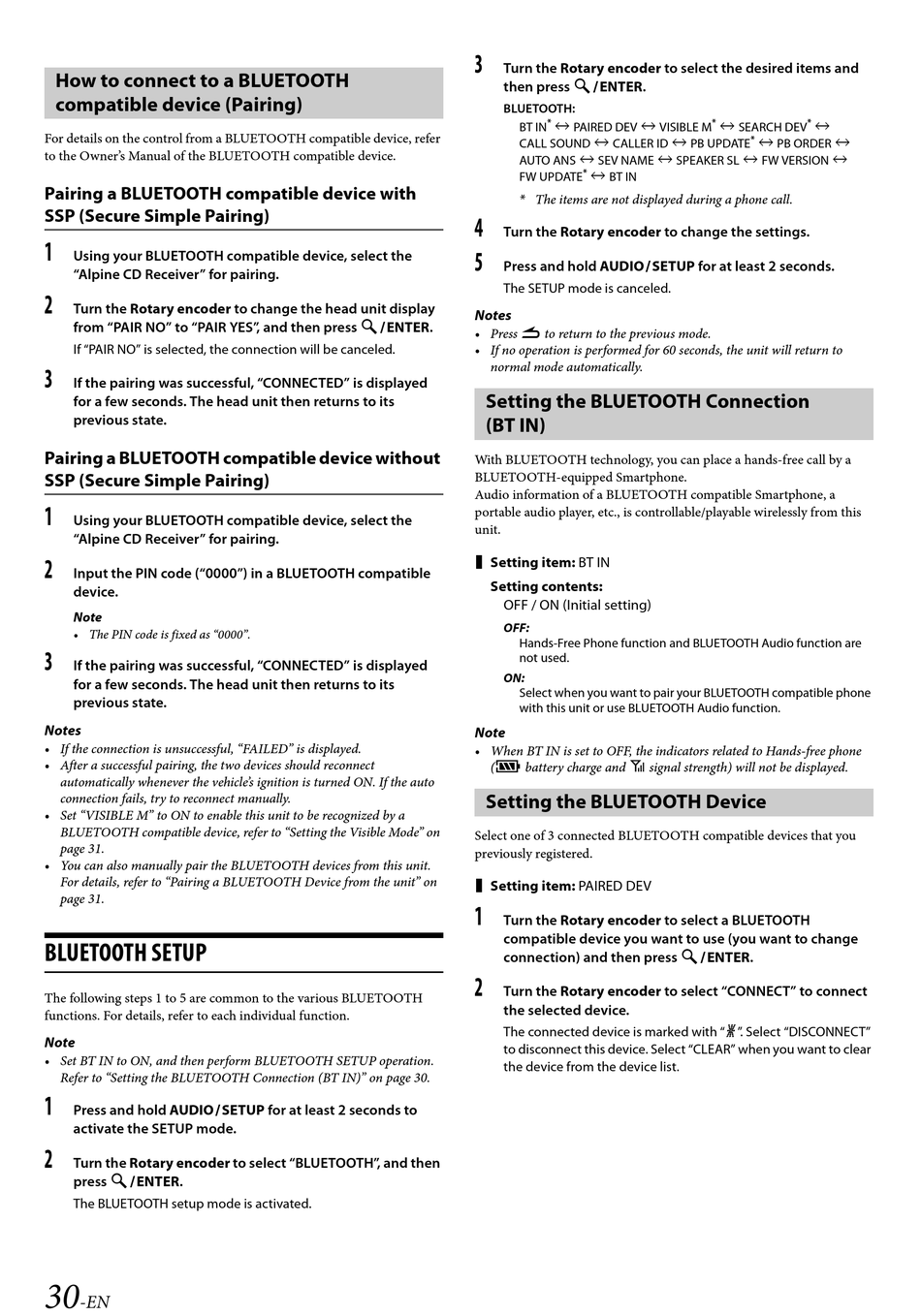

How to connect to a BLUETOOTH
compatible device (Pairing)
For details on the control from a BLUETOOTH compatible device, refer
to the Owner’s Manual of the BLUETOOTH compatible device.
Pairing a BLUETOOTH compatible device with
SSP (Secure Simple Pairing)
1
Using your BLUETOOTH compatible device, select the
“Alpine CD Receiver” for pairing.
2
Turn the Rotary encoder to change the head unit display
from “PAIR NO” to “PAIR YES”, and then press ENTER.
If “PAIR NO” is selected, the connection will be canceled.
3
If the pairing was successful, “CONNECTED” is displayed
for a few seconds. The head unit then returns to its
previous state.
Pairing a BLUETOOTH compatible device without
SSP (Secure Simple Pairing)
1
Using your BLUETOOTH compatible device, select the
“Alpine CD Receiver” for pairing.
2
Input the PIN code (“0000”) in a BLUETOOTH compatible
device.
Note
• The PIN code is fixed as “0000”.
3
If the pairing was successful, “CONNECTED” is displayed
for a few seconds. The head unit then returns to its
previous state.
Notes
• If the connection is unsuccessful, “FAILED” is displayed.
• After a successful pairing, the two devices should reconnect
automatically whenever the vehicle’s ignition is turned ON. If the auto
connection fails, try to reconnect manually.
• Set “VISIBLE M” to ON to enable this unit to be recognized by a
BLUETOOTH compatible device, refer to “Setting the Visible Mode” on
page 31.
• You can also manually pair the BLUETOOTH devices from this unit.
For details, refer to “Pairing a BLUETOOTH Device from the unit” on
page 31.

BLUETOOTH SETUP

The following steps 1 to 5 are common to the various BLUETOOTH
functions. For details, refer to each individual function.
Note
• Set BT IN to ON, and then perform BLUETOOTH SETUP operation.
Refer to “Setting the BLUETOOTH Connection (BT IN)” on page 30.
1
Press and hold AUDIOSETUP for at least 2 seconds to
activate the SETUP mode.
2
Turn the Rotary encoder to select “BLUETOOTH”, and then
press ENTER.
The BLUETOOTH setup mode is activated.
-EN
3
Turn the Rotary encoder to select the desired items and
then press ENTER.
BLUETOOTH:
*
*
*
 PAIRED DEV  VISIBLE M
 SEARCH DEV
BT IN
*
CALL SOUND  CALLER ID  PB UPDATE
 PB ORDER 
AUTO ANS  SEV NAME  SPEAKER SL  FW VERSION 
*
 BT IN
FW UPDATE
* The items are not displayed during a phone call.
4
Turn the Rotary encoder to change the settings.
5
Press and hold AUDIOSETUP for at least 2 seconds.
The SETUP mode is canceled.
Notes
• Press t to return to the previous mode.
• If no operation is performed for 60 seconds, the unit will return to
normal mode automatically.
Setting the BLUETOOTH Connection
(BT IN)
With BLUETOOTH technology, you can place a hands-free call by a
BLUETOOTH-equipped Smartphone.
Audio information of a BLUETOOTH compatible Smartphone, a
portable audio player, etc., is controllable/playable wirelessly from this
unit.
 Setting item: BT IN
Setting contents:
OFF / ON (Initial setting)
OFF:
Hands-Free Phone function and BLUETOOTH Audio function are
not used.
ON:
Select when you want to pair your BLUETOOTH compatible phone
with this unit or use BLUETOOTH Audio function.
Note
• When BT IN is set to OFF, the indicators related to Hands-free phone
(C battery charge and i signal strength) will not be displayed.

Setting the BLUETOOTH Device

Select one of 3 connected BLUETOOTH compatible devices that you
previously registered.
 Setting item: PAIRED DEV
1
Turn the Rotary encoder to select a BLUETOOTH
compatible device you want to use (you want to change
connection) and then press ENTER.
2
Turn the Rotary encoder to select “CONNECT” to connect
the selected device.
The connected device is marked with “l”. Select “DISCONNECT”
to disconnect this device. Select “CLEAR” when you want to clear
the device from the device list.
Page 30
