Installation Instructions - Cadet The Com-Pak Plus Owner's Manual

READ ALL
INSTRUCTIONS
AND SAFETY
INFORMATION
IMPORTANT!
It is extremely
important you verify
that the electrical
supply wires are
the same voltage as
the heater (i.e. 120
volt heater to 120
volt power supply
and 240 volt heater
to 240 volt power
supply). If replacing
an existing heater,
check the labels of
the old heater and
replace using the
same voltage.
Hooking a 240 volt
heater to a 120 volt
power supply will
drastically reduce
the heater's output.
Hooking a 120 volt
heater to a 240 volt
power supply will
destroy the heater.
Connecting your
heater to an
incompatible
power supply will
void the warranty.
2

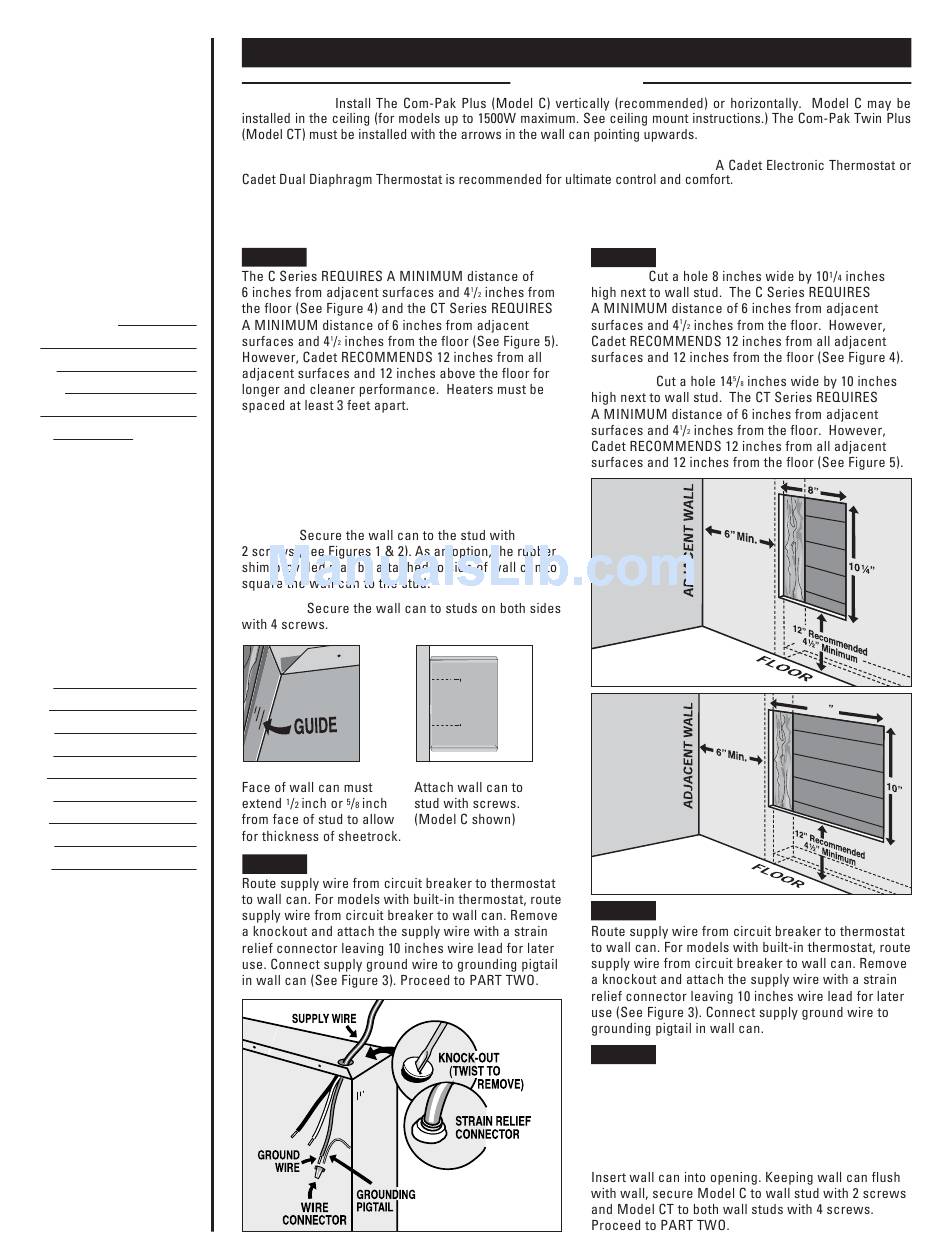

Installation Instructions

PLACEMENT:
THERMOSTAT:
A thermostat is required for models without a built-in thermostat.
How do I install for
new construction walls?
Mount The Wall Can
STEP 1
Review the wall can label for correct direction
(as noted by the UP arrows) before mounting the
wall can in the opening. In the VERTICAL mounting
position the elements of the heater assembly will be
at the top, in the HORIZONTAL mounting position the
elements of the heater assembly will be to the left.
Model C:
Model CT:
Figure 1 Figure 2
Route Supply Wires
STEP 2
Part One
How do I install in an existing wall?
Cut Hole In Wall
STEP 1
Model C:
Model CT:
Figure 4
Model C
Figure 5
Model CT
Route Supply Wires
STEP 2
Mount Wall Can
STEP 3
Review the wall can label for correct direction
(as noted by the UP arrows) before mounting the
wall can in the opening. In the VERTICAL mounting
position the elements of the heater assembly will be
at the top, in the HORIZONTAL mounting position the
elements of the heater assembly will be to the left.
Figure 3
1 4
/
5
8
