Section 1: Getting Started

1.1 Axiom Keyboards Overview

1.1.1 Top Panel Overview
1.1.2 Back Panel Overview
1.1.3 Control Definitions

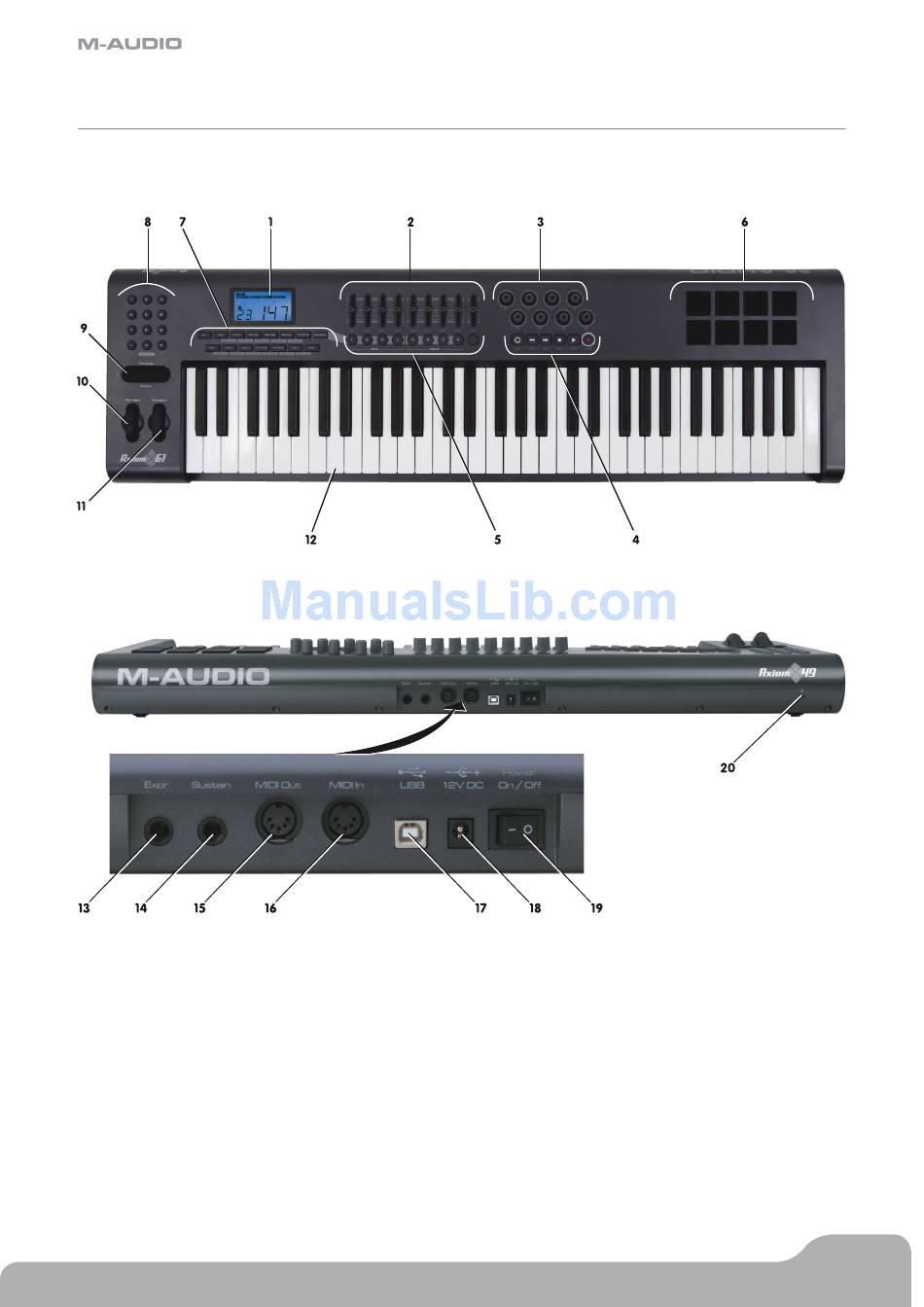

These controls are referred by name throughout this manual.
1: LCD display
2: Sliders (Axiom 49/61 only)
3: Encoders
4: Transport buttons
5: Assignable buttons (Axiom
49/61 only)
6: Trigger Pads
7: Function buttons
8: Numeric Keypad (Axiom
49/61 only)
9: Octave buttons
10: Pitch Bend wheel
11: Modulation wheel
12: Keyboard with Aftertouch
13: Expression pedal socket
14: Sustain Pedal socket
15: MIDI OUT port
16: MIDI IN port
17: USB 1.1 port
Axiom Line User Guide
18: DC power socket
19: Power switch
20: Kensington Lock Hole
