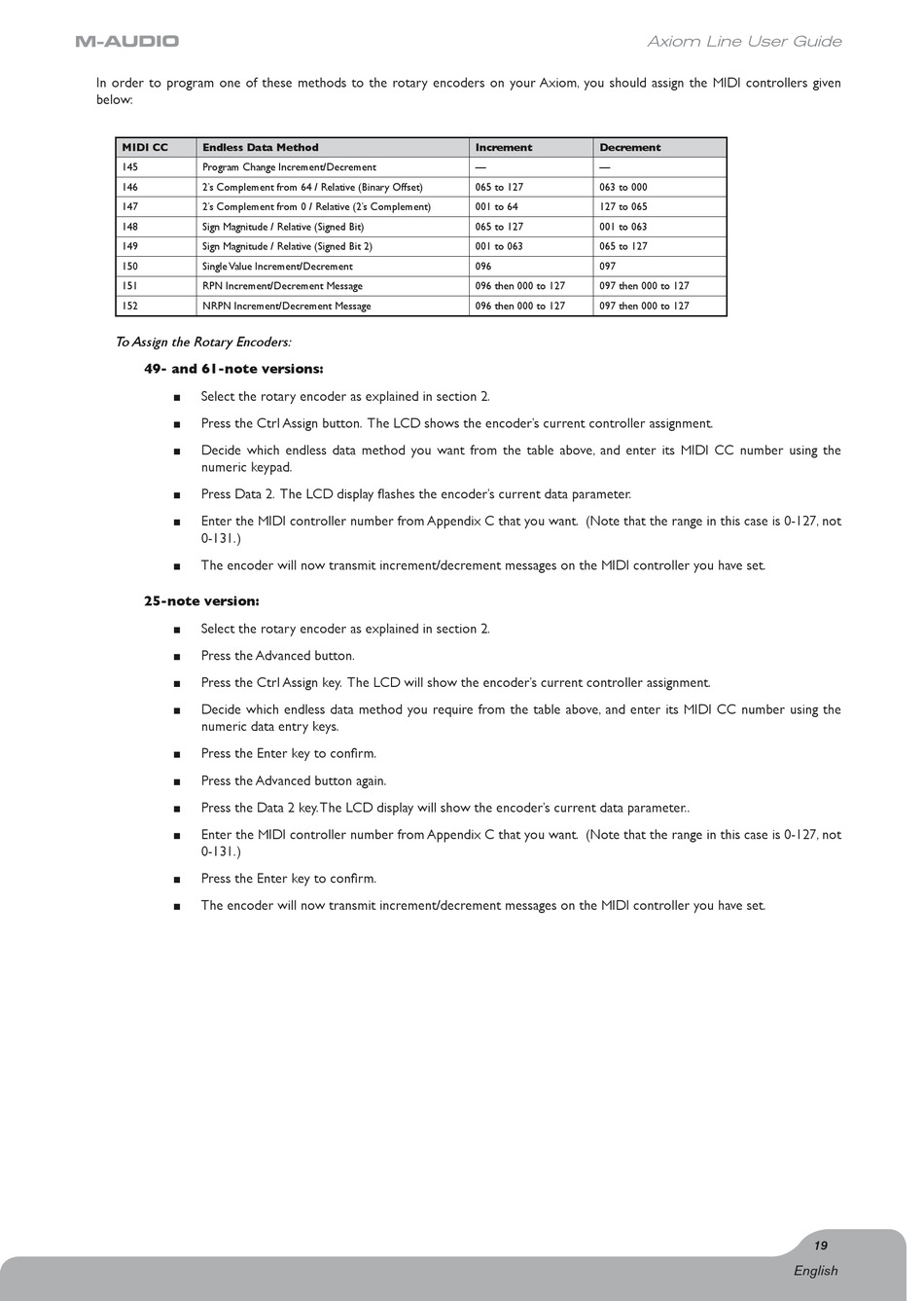

M-Audio Axiom Line User Manual page 20

In order to program one of these methods to the rotary encoders on your Axiom, you should assign the MIDI controllers given
below:
MIDI CC Endless Data Method
145 Program Change Increment/Decrement
146 2's Complement from 64 / Relative (Binary Offset)
147 2's Complement from 0 / Relative (2's Complement)
148 Sign Magnitude / Relative (Signed Bit)
149 Sign Magnitude / Relative (Signed Bit 2)
150 Single Value Increment/Decrement
151 RPN Increment/Decrement Message
152 NRPN Increment/Decrement Message
To Assign the Rotary Encoders:
49- and 61-note versions:
Select the rotary encoder as explained in section 2.
<
Press the Ctrl Assign button. The LCD shows the encoder's current controller assignment.
<
Decide which endless data method you want from the table above, and enter its MIDI CC number using the
<
numeric keypad.
Press Data 2. The LCD display flashes the encoder's current data parameter.
<
Enter the MIDI controller number from Appendix C that you want. (Note that the range in this case is 0-127, not
<
0-131.)
The encoder will now transmit increment/decrement messages on the MIDI controller you have set.
<
25-note version:
Select the rotary encoder as explained in section 2.
<
Press the Advanced button.
<
Press the Ctrl Assign key. The LCD will show the encoder's current controller assignment.
<
Decide which endless data method you require from the table above, and enter its MIDI CC number using the
<
numeric data entry keys.
Press the Enter key to confirm.
<
Press the Advanced button again.
<
Press the Data 2 key. The LCD display will show the encoder's current data parameter..
<
Enter the MIDI controller number from Appendix C that you want. (Note that the range in this case is 0-127, not
<
0-131.)
Press the Enter key to confirm.
<
The encoder will now transmit increment/decrement messages on the MIDI controller you have set.
<
Axiom Line User Guide
Increment Decrement
— —
065 to 127 063 to 000
001 to 64 127 to 065
065 to 127 001 to 063
001 to 063 065 to 127
096 097
096 then 000 to 127 097 then 000 to 127
096 then 000 to 127 097 then 000 to 127
