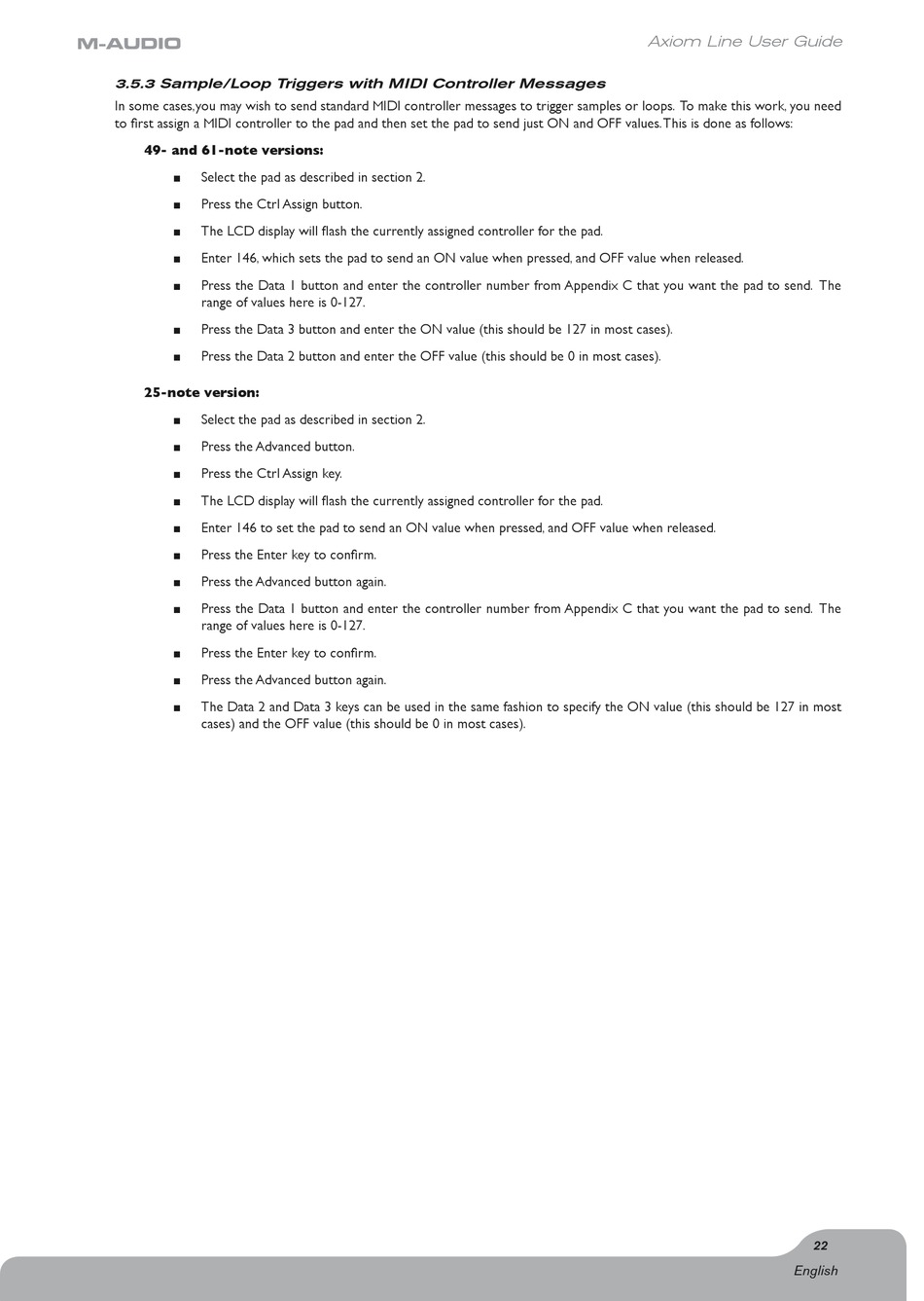

3.5.3 Sample/Loop Triggers with MIDI Controller Messages

In some cases,you may wish to send standard MIDI controller messages to trigger samples or loops. To make this work, you need

to ﬁrst assign a MIDI controller to the pad and then set the pad to send just ON and OFF values. This is done as follows:

49- and 61-note versions:

Select the pad as described in section 2.

Press the Ctrl Assign button.

The LCD display will ﬂash the currently assigned controller for the pad.

Enter 146, which sets the pad to send an ON value when pressed, and OFF value when released.

Press the Data 1 button and enter the controller number from Appendix C that you want the pad to send. The

range of values here is 0-127.

Press the Data 3 button and enter the ON value (this should be 127 in most cases).

Press the Data 2 button and enter the OFF value (this should be 0 in most cases).

25-note version:

Select the pad as described in section 2.

Press the Advanced button.

Press the Ctrl Assign key.

The LCD display will ﬂash the currently assigned controller for the pad.

Enter 146 to set the pad to send an ON value when pressed, and OFF value when released.

Press the Enter key to conﬁrm.

Press the Advanced button again.

Press the Data 1 button and enter the controller number from Appendix C that you want the pad to send. The

range of values here is 0-127.

Press the Enter key to conﬁrm.

Press the Advanced button again.

The Data 2 and Data 3 keys can be used in the same fashion to specify the ON value (this should be 127 in most

cases) and the OFF value (this should be 0 in most cases).
