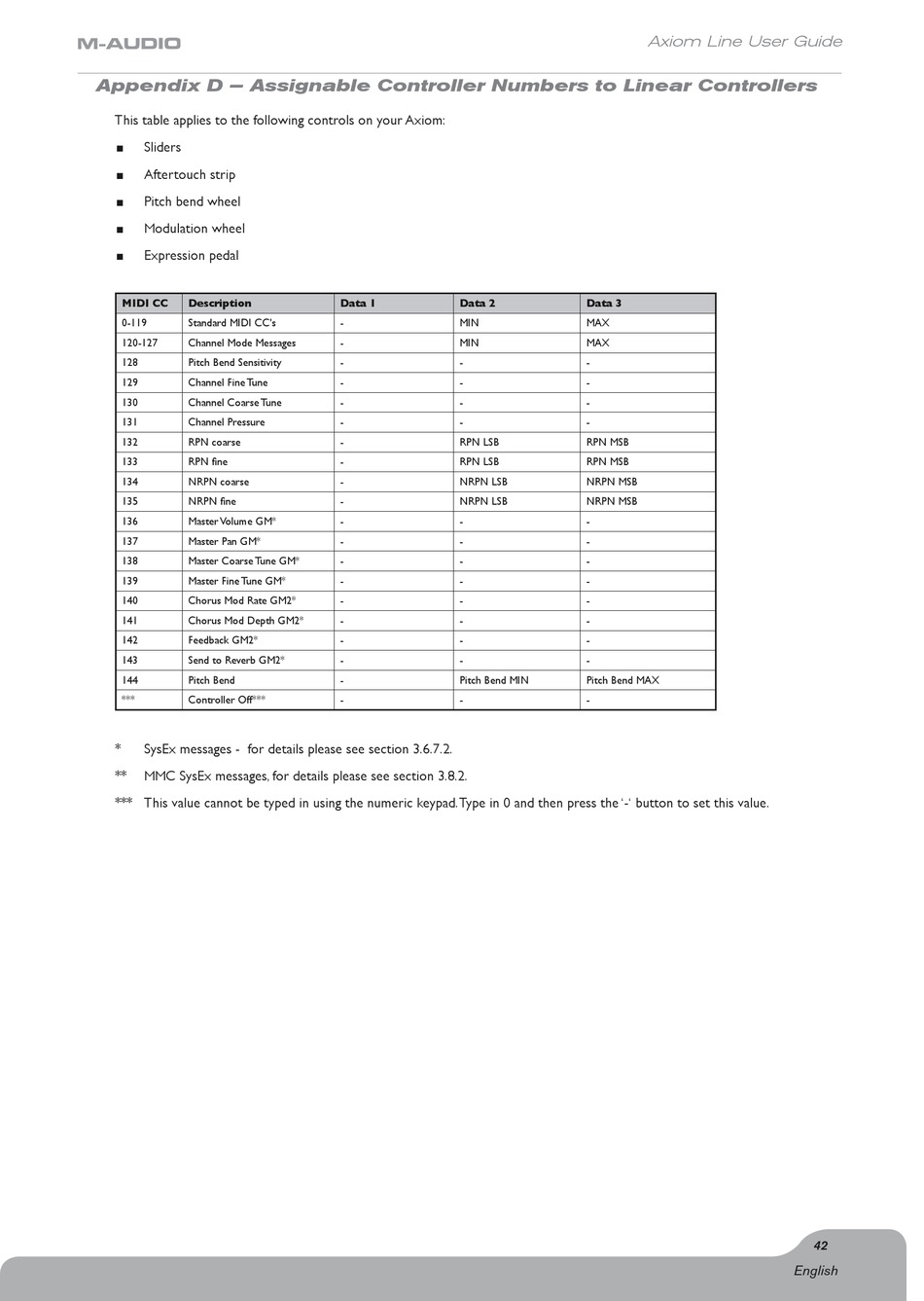

Appendix D – Assignable Controller Numbers to Linear Controllers
This table applies to the following controls on your Axiom:
Sliders
<
Aftertouch strip
<
Pitch bend wheel
<
Modulation wheel
<
Expression pedal
<
MIDI CC Description
0-119 Standard MIDI CC's
120-127 Channel Mode Messages
128 Pitch Bend Sensitivity
129 Channel Fine Tune
130 Channel Coarse Tune
131 Channel Pressure
132 RPN coarse
133 RPN fine
134 NRPN coarse
135 NRPN fine
136 Master Volume GM*
137 Master Pan GM*
138 Master Coarse Tune GM*
139 Master Fine Tune GM*
140 Chorus Mod Rate GM2*
141 Chorus Mod Depth GM2*
142 Feedback GM2*
143 Send to Reverb GM2*
144 Pitch Bend
*** Controller Off***
* SysEx messages - for details please see section 3.6.7.2.
** MMC SysEx messages, for details please see section 3.8.2.
*** This value cannot be typed in using the numeric keypad. Type in 0 and then press the '-' button to set this value.
Data 1 Data 2
- MIN
- MIN
- -
- -
- -
- -
- RPN LSB
- RPN LSB
- NRPN LSB
- NRPN LSB
- -
- -
- -
- -
- -
- -
- -
- -
- Pitch Bend MIN
- -
Axiom Line User Guide
Data 3
MAX
MAX
-
-
-
-
RPN MSB
RPN MSB
NRPN MSB
NRPN MSB
-
-
-
-
-
-
-
-
Pitch Bend MAX
-
