Getting Around AltiAdmin

IP Trunk Current Traffic Statistics Window

Here's an example of the IP Trunk Current Traffic Statistics window.

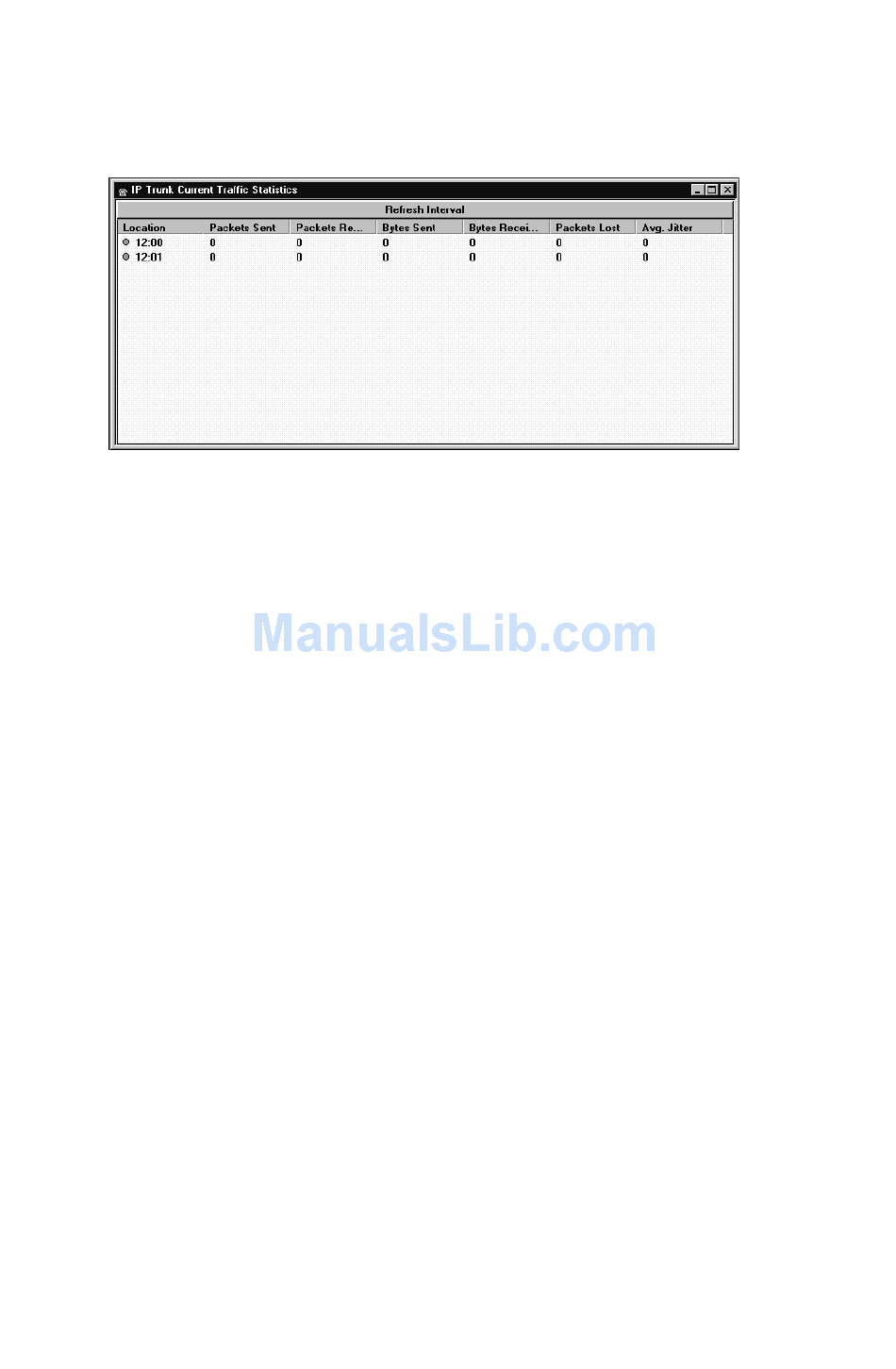

Figure 8. IP Trunk Current Traffic Statistics window
The information you see, which is for currently active calls, is as follows.
The packet and byte data that follows is for data sent or received from other
AltiServ systems over the public or private IP network :
• Location - the Triton VoIP board ID:channel ID
• Packets Sent - the number of voice packets sent
• Packets Received - the number of voice packets received
• Bytes Sent - the total size (in bytes) of all voice packets sent
• Bytes Received - the total size (in bytes) of all voice packets received
• Packets Lost - the number of voice packets that have been lost due to
prolonged delays, network congestion or routing failure.
• Average Jitter - displays the average length of delay per voice packet
in milliseconds. This number can be used to measure the quality of
service on the network that connects the source and destination sites.
Under 100 milliseconds is good, while a higher figure indicates a longer
than average delay.
Setting the Refresh Interval
The IP Trunk Current Traffic Statistics window is updated according to
the Refresh Interval configuration. By default, the Refresh Interval is set
at refresh the data in the window every 5 seconds. To change the refresh
interval, click the Refresh Interval button and use the slide rule to set the
time to an interval to a number of seconds up to one minute. Each tick on
the rule represents 5 seconds. To set the time to 0 is to turn off refreshing
the data.
32 AltiWare OE 4.0 Getting Started Manual
