Rollers Removals

Roller, Upper Feed Removal

1. Remove the top cover. Go to
page 4-8.
2. Remove the screw from the print cable shield and remove the
shield.

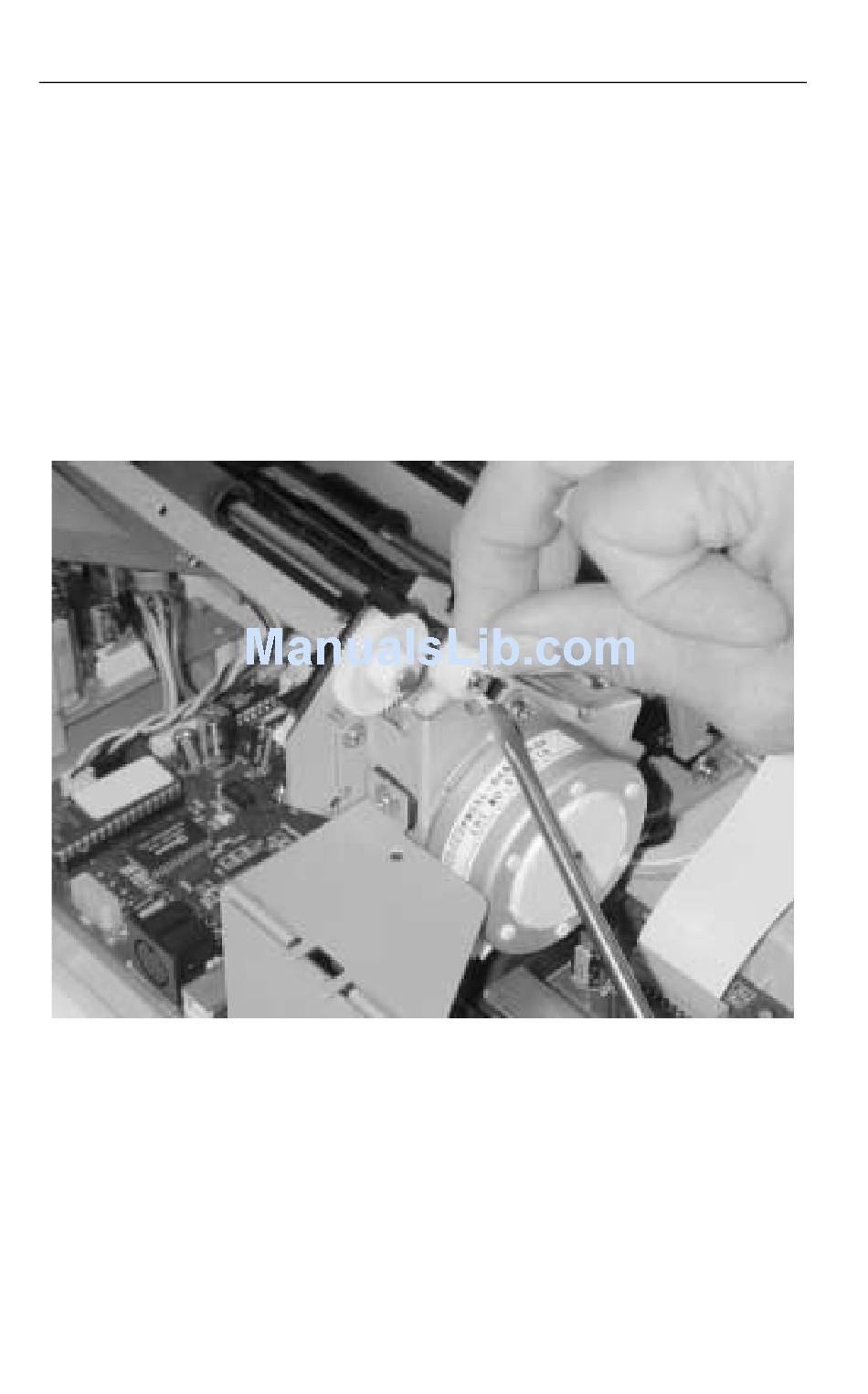

3. Remove the gear from the left end of the upper feed roller, as
shown.
4-36
Service Manual
"Covers, Top Removal" on
