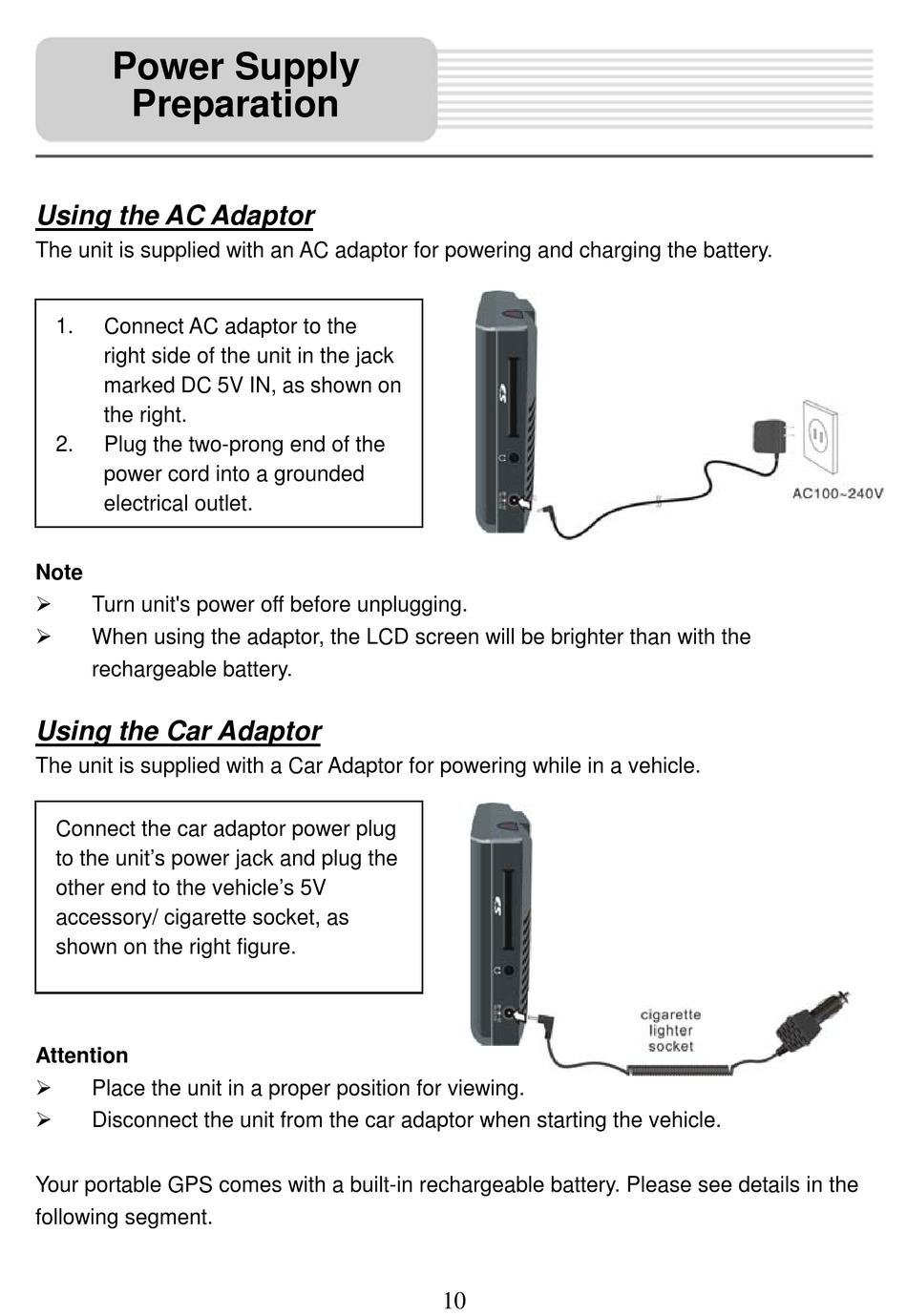

Power Supply
Preparation
Using the AC Adaptor
The unit is supplied with an AC adaptor for powering and charging the battery.
1. Connect AC adaptor to the
right side of the unit in the jack
marked DC 5V IN, as shown on
the right.
2. Plug the two-prong end of the
power cord into a grounded
electrical outlet.
Note
 Turn unit's power off before unplugging.
 When using the adaptor, the LCD screen will be brighter than with the
rechargeable battery.
Using the Car Adaptor
The unit is supplied with a Car Adaptor for powering while in a vehicle.
Connect the car adaptor power plug
to the unit's power jack and plug the
other end to the vehicle's 5V
accessory/ cigarette socket, as
shown on the right figure.
Attention
 Place the unit in a proper position for viewing.
 Disconnect the unit from the car adaptor when starting the vehicle.
Your portable GPS comes with a built-in rechargeable battery. Please see details in the
following segment.
10
