Nextar Q4 Owner's Manual

Nextar q4: hardware guide
Hide thumbs Also See for Q4:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
，

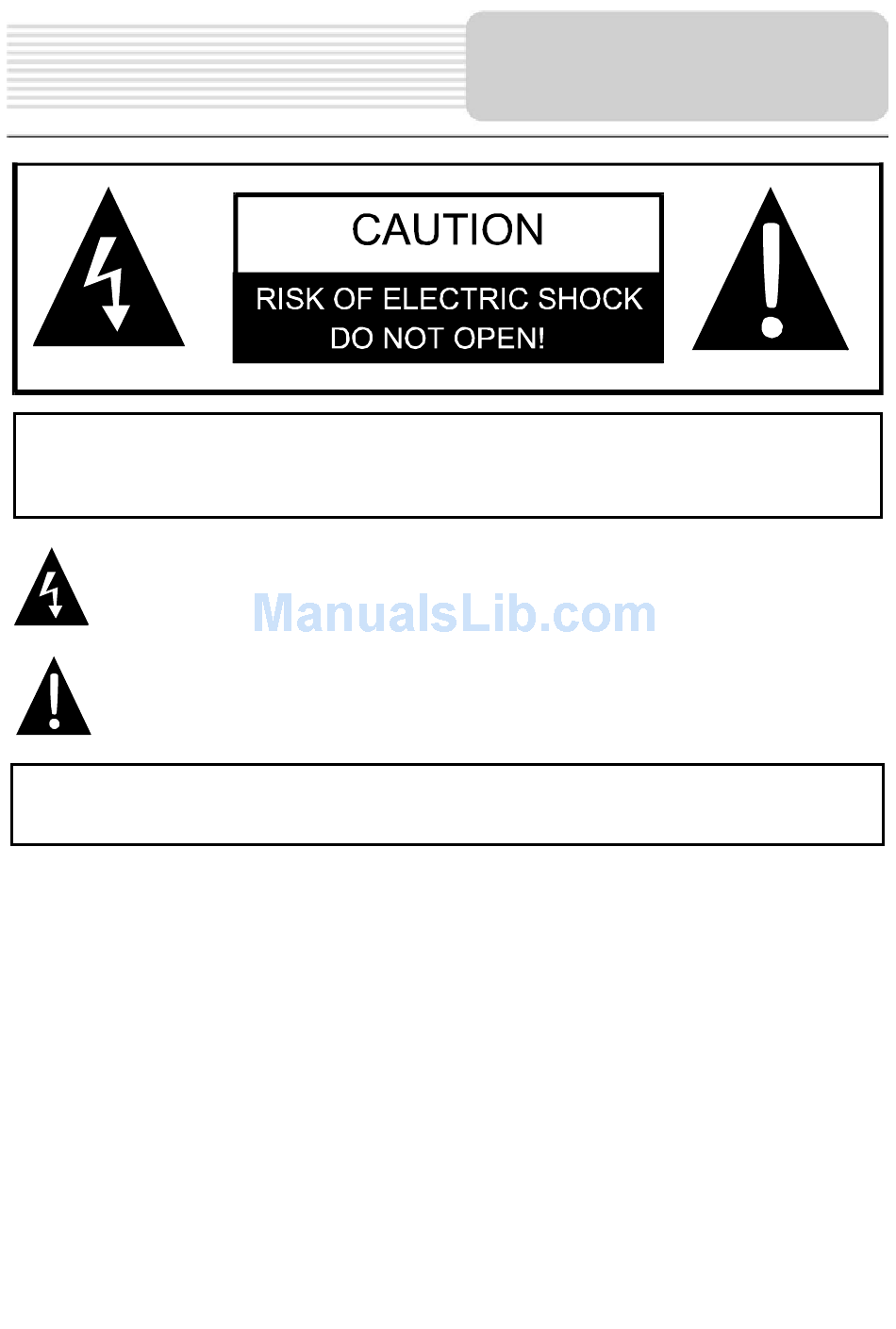

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of sufficient magnitude to
constitute a risk of electric to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OF MOISTURE.
POWER SUPPLY:
Connect the supplied adapter to the side of the unit in the USB port. Plug the two-prong
end of the power cord to an AC100-240V outlet. If you have difficulty inserting the plug,
turn it over and reinsert it. If the unit will not the used for a long time, disconnect the plug
from the outlet.
NOTE:
Before plugging the power cord into an AC outlet, make sure that all the connections
have been made.
CAUTION: These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so.
Refer to service manual for servicing instructions. To reduce the risk of fire or electric
shock, do not expose this apparatus to rain or moisture.
Important Safety
Instructions
1

Advertisement

Table of Contents
loading

Related Manuals for Nextar Q4

Summary of Contents for Nextar Q4

  • Page 1: Important Safety Instructions

    ， CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric to persons.
  • Page 2 Important Safety Instructions NOTES Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a damp cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.
  • Page 3 UL has only tested for fire, shock or casualty hazards as outlined in UL’s Standard(s) for Safety [Note-Consider referencing specific UL standard]. UL Certification does not cover the performance or reliability of the GPS hardware and GPS operating software.
  • Page 4 Important Safety Instructions Note: This equipment has been tested and found to comply with limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the...

  • Page 5: Accessories

    Accessories List ITEM NOTE Accessories and their part number are subject to modification without prior notice due to improvements. Accessories NAME Owner’s Manual AC Adaptor Car Adaptor Mounting Bracket USB Cable Mounting cradle Touch Pen Dashboard mount disk SD Card Pouch...

  • Page 6: Table Of Contents

    Contents …………………………………..……..…..1 Important Safety Instructions ……………………………….……….…...5 Accessories ……………………………….………..…...7 View of Main Unit ………………………………..…………...8 System Connections ……………………………….…….….….10 Power Supply Preparation …………………………….……….….….12 General Setup ……………………………….……….…..16 MP3 Player …………………………….……………...18 Photo Viewer ……………………………….……….…..20 Use of the Mount Accessories ……………………………….……….…..21 Troubleshooting ……………………………….……….…..23 Specifications...

  • Page 7: View Of Main Unit

    POWER Button Press for a longer time to enter or exit the standby mode. Card Port Insert the SD card into the slot. Earphone Jack Connect earphone for private listening. When the earphone is connected to this jack, the speaker will be turned off automatically. USB Port Connect to the supplied adapter to charge the unit.

  • Page 8: System Connections

    System Connections Always ensure that the unit and any other external device connected to the unit are switched off and unplugged from the power supply before you attempt to connect the unit to any external device. Connecting to PC The unit is designed with a USB port which allows you to connect the unit to PC for map updating.
  • Page 9 System Connections Inserting SD Card The unit is designed with SD Card jack which allows you to insert the SD card into the unit as shown below: To remove the card, gently press the card in with your fingernail. The card unlocks and protrudes slightly.

  • Page 10: Power Supply Preparation

    Do not operate the unit while driving a vehicle. Place the unit in a proper position for viewing. Disconnect the unit from the Car Adaptor when starting the vehicle. Your portable GPS unit comes with a built-in rechargeable battery. Please see details in the following segment.

  • Page 11: Charging The Rechargeable Battery

    About Rechargeable Battery Your portable GPS device comes with a built-in rechargeable battery. Charge the battery fully before initial use. Charging time is normally about 3.5 hours. A fully charged battery delivers about 2.5 hours of use. Working conditions and precautions for the rechargeable battery New batteries should be fully charged before initial use.

  • Page 12: General Setup

    General Setup System Main Menu When in navigation mode, In the SETTINGS menu, tap EXIT, a confirmation message appears. Tap Exit in the confirmation message to return to the system main menu, as shown below. In the main menu, there are four items for selecting. Touch the corresponding item to enter.
  • Page 13 Language in the settings menu to enter Language settings menu for language selecting, as shown below: Tap the buttons to select language. Then tap cancel. Backlight in the settings menu to enter Backlight settings menu for backlight adjusting, as shown below: Tap the first group Tap the second group time (--/5/10/30/60/120).
  • Page 14 General Setup Date & Time in the settings menu to enter Date & Time settings menu for changing to the current time zone, as shown below: Tap the buttons to select the proper Time Zone. Tap the Date group to change the corresponding date and tap the group to change the corresponding time.
  • Page 15 General Setup Screen in the settings menu, the screen will display as below: This item is used to calibrate the sensitivity of the touch screen. Tap the center of “+” as it moves around the screen. If you touch the center of “+” every time, it will disappear after having moved through a cycle (center→top left corner→bottom left corner→bottom right corner→top right corner).

  • Page 16: Mp3 Player

    Playing Music The unit is designed with SD card slot. You can insert the SD card with MP3 and WMA files. It supports MP3, WMA format files playback. Note: Do not store MP3 and WMA format files in the Flash storage, for the flash storage is used to store map data, any attempt to open the Flash storage may result in the map data missing and lost.
  • Page 17 When you open the play list, the system will look for audio files on its SD memory card and create a play list automatically. If the play list consists of more than one screen, tap the up arrow for the previous page and the down arrow In the play list, double tap the songs to start playback.

  • Page 18: Photo Viewer

    Photo Viewer The unit is designed with SD card slot. You can insert the SD card with JPEG files. It supports JPEG format files playback. Note: Do not store JPEG format files in the Flash storage, for the flash storage is used to store map data, any attempt to open the Flash storage may result in the map data missing and lost.
  • Page 19 If the pictures list consists of more than one screen, tap the up arrow previous page and the down arrow menu. Tap a picture to select it and tap In the pictures list, double tap a picture to play it on screen, as shown below. On the playback screen, the Photo Viewer has following playback features: to rotate the picture.

  • Page 20: Use Of The Mount Accessories

    Use of the Mount Accessories When using the unit in vehicle, you can use the supplied mount accessories (mount bracket, mount cradle and dashboard mount disk) to mount the unit in the vehicle. Take the following steps to operate: See Fig. 1 to slide the mount cradle onto the end of the mount bracket. See Fig.

  • Page 21: Troubleshooting

    Turn up the volume or turn on the sound output. Adjust the brightness of the LCD. Make sure to use the unit out of room; if in the vehicle, you can use the external GPS antenna to solve this problem.
  • Page 22 Troubleshooting PROBLEM The unit can receive signals now but can’t then or signals received are not stable. Other possibilities: Static or other external interference may cause the unit function abnormally. In order to recover normal status, please unplug the power supply cord and then plug it into the outlet again to reset the unit.

  • Page 23: Specifications

    TFT screen size Frequency Response Audio Signal-to-noise Rate Audio distortion+noise Channel Separation Dynamic Range Power Power Consumption Dimensions Design and specifications are subject to change without notice. AC 100-240V ～ 50/60Hz ; DC 5V 117mmX80mmX20mm (L*W*D) Specifications 4.3 inches 20Hz - 20kHz ≥65dB ≤-20dB (1kHz) ≥70dB (1kHz)
  • Page 24 © 2008 Nextar (Hong Kong) Limited. Nextar is a trademark and service mark of Nextar (Hong Kong) Limited. All other brand names, trademarks and service marks are property of their owners. Nextar may find it necessary to modify, amend or otherwise change or update this manual.
