Ink Carrier Belt Removal - Lexmark P122 Photo Jetprinter Service Manual

4102-P01

Ink Carrier Belt Removal

1. Remove the top cover.
2. Remove the ink carrier assembly.

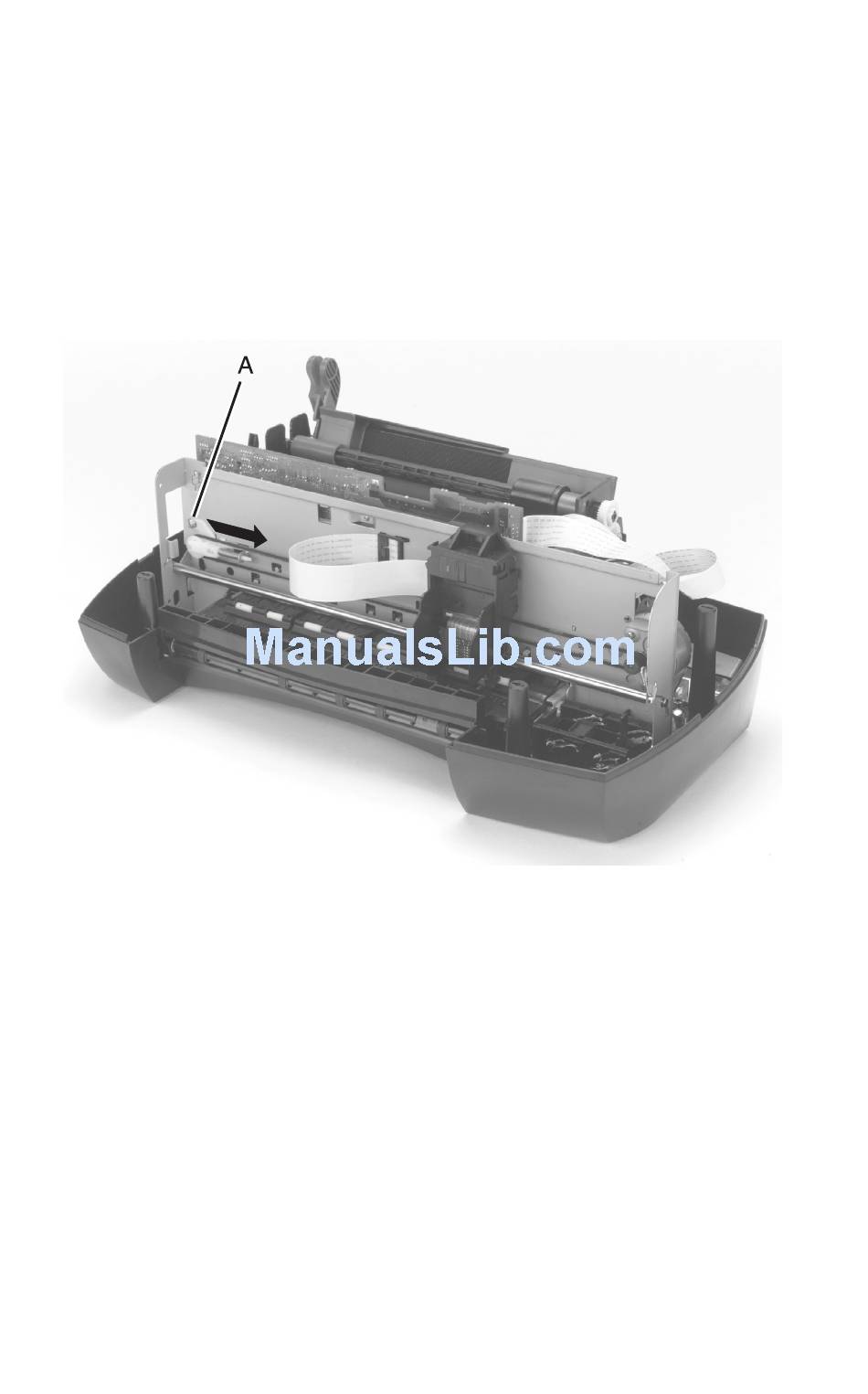

3. Loosen the belt tension pulley mounting screw (A), slide the
pulley in the direction of the arrow and retighten the mounting
screw.
4. Remove the belt.
