- Page 1 CABINET LINER AND DOOR PARTS ICE CUBE MAKER For Models: KUIS15NRTW4, KUIS15NRTT4, KUIS15NRTB4, KUIS15NRTS4 (White) (Biscuit) (Black) (Stainless Steel) 03−10 Litho In U.S.A. (mjb)(bay) Part No. W10327049 Rev.A...

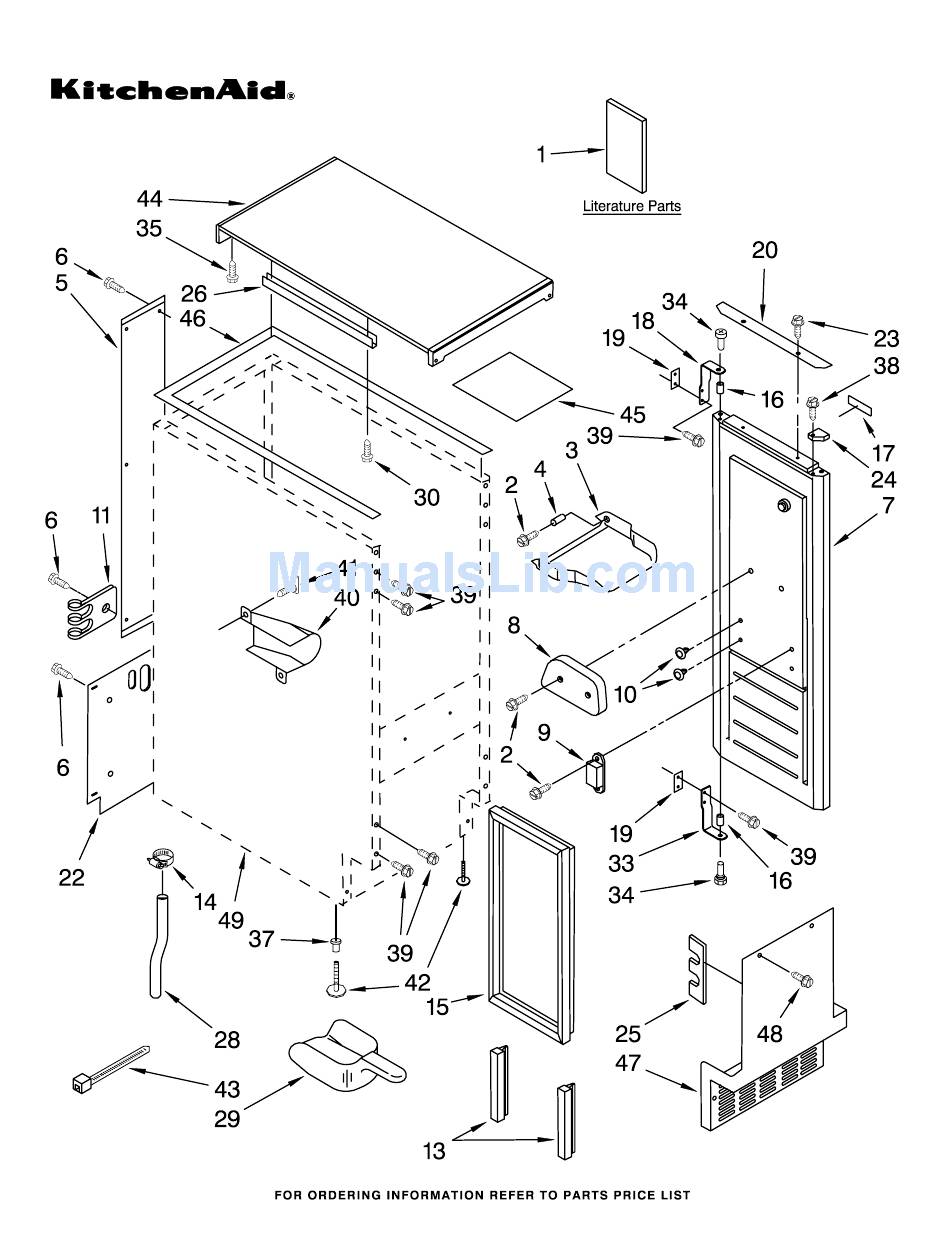

- Page 2 CABINET LINER AND DOOR PARTS For Models: KUIS15NRTW4, KUIS15NRTT4, KUIS15NRTB4, KUIS15NRTS4 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2185710 Hinge, Top 585158 Scoop Literature Parts 2185709 Shim, Hinge 3400884 Screw W10206423 Use & Care Guide Handle, Door 2185711 Hinge, Bottom W10206442 Service &...
- Page 3 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIS15NRTW4, KUIS15NRTT4, KUIS15NRTB4, KUIS15NRTS4 (White) (Biscuit) (Black) (Stainless Steel) W10327049...
- Page 4 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIS15NRTW4, KUIS15NRTT4, KUIS15NRTB4, KUIS15NRTS4 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION 1 W10163596 Valve, Complete Water 2217286 Tube, Plastic 488208 Screw 2185523 Dispenser, Water 5 W10218037 Evaporator 2313705 Pump, Drain 2313851 Tube, Reservoir Pump 4387492 Tube, Water Fill...
-
Page 5: Pump Parts
PUMP PARTS For Models: KUIS15NRTW4, KUIS15NRTT4, KUIS15NRTB4, KUIS15NRTS4 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION 2313628 Pump−Recirculating 3400884 Screw 8−18 X 5/8 2185677 Cover, Pump 2313844 Bracket, Connector Assembly 2313627 Bracket−Pump 2313643 Sensor−Water Level 2310092 Wiring Harness Main To Pump 2313702 Pump Assembly W10327049... -
Page 6: Control Panel Parts
CONTROL PANEL PARTS For Models: KUIS15NRTW4, KUIS15NRTT4, KUIS15NRTB4, KUIS15NRTS4 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION 2185738 Box, Control 2310139 Transformer 2304122 Assembly, Switch (ALSO ORDER #4) 4 W10206463 Overlay 5 W10226156 Control Board 2149705 Switch, Plunger Grid/Light 2187585 Wire Assy. Active Overlay Jumper 745362 Bulb 2313633 Thermostat, Bin... -
Page 7: Unit Parts
UNIT PARTS For Models: KUIS15NRTW4, KUIS15NRTT4, KUIS15NRTB4, KUIS15NRTS4 (White) (Biscuit) (Black) (Stainless Steel) W10327049... - Page 8 UNIT PARTS For Models: KUIS15NRTW4, KUIS15NRTT4, KUIS15NRTB4, KUIS15NRTS4 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION 2185532 Bracket, Fan Mtg. 2185675 Pad, Foam 2188935 Blade, Fan 2315558 Motor & Mounting Plate Assembly 5 W10193296 Wiring Harness, Complete Unit (Includes Power Cord) 304392 Screw 7 W10136195 Compressor (Includes...
- Page 9 OPTIONAL PARTS (NOT INCLUDED) For Models: KUIS15NRTW4, KUIS15NRTT4, KUIS15NRTB4, KUIS15NRTS4 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) 8171307 Cleaner, Icemaker 503695 Sealer, Cork (1/4 Pound) 797403 Cement, Insulation (1 Oz.) 505587 Sealer, Mastic (1 Qt.) 212643 Sealer, Gum (22 Pcs.
