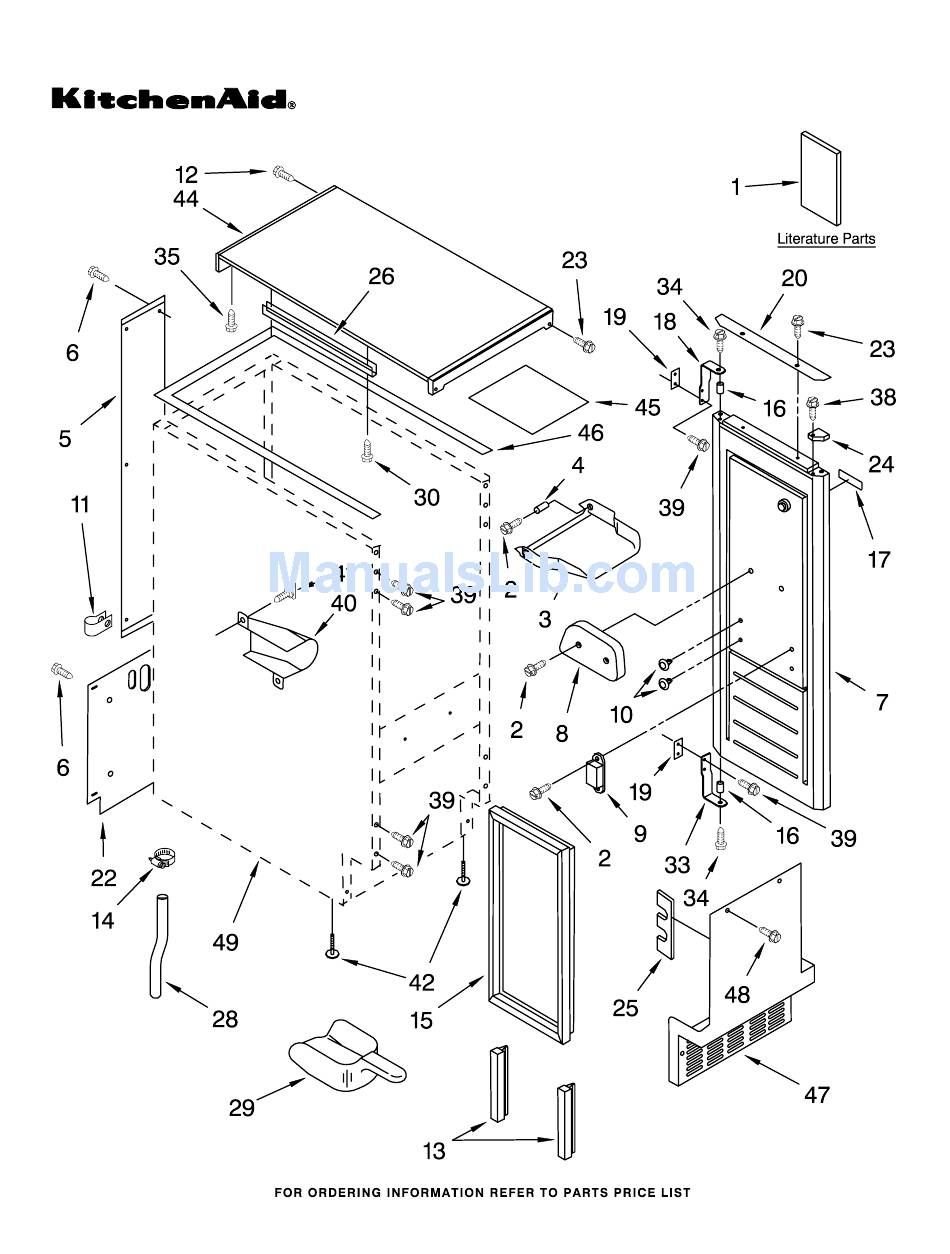

- Page 1 CABINET LINER AND DOOR PARTS ICE CUBE MAKER For Models: KUIS15NRHW6, KUIS15NRHT6, KUIS15NRHB6, KUIS15NRHS6 (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) 5−09 Litho In U.S.A. (ebk) (eeb) Part No. 8198925...
-
Page 2: Cabinet Liner And Door Parts
CABINET LINER AND DOOR PARTS For Models: KUIS15NRHW6, KUIS15NRHT6, KUIS15NRHB6, KUIS15NRHS6 (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Grill, Front 2185730 Assembly, Literature Parts 2185571W White Unit Cover LIT2217404 Use & Care Guide 2185571T Biscuit Screw LIT2217232 Service &... - Page 3 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIS15NRHW6, KUIS15NRHT6, KUIS15NRHB6, KUIS15NRHS6 (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) 8198925...
- Page 4 EVAPORATOR ICE CUTTER GRID AND WATER PARTS For Models: KUIS15NRHW6, KUIS15NRHT6, KUIS15NRHB6, KUIS15NRHS6 (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) Illus. Part DESCRIPTION 2185758 Valve, Complete Water 2217286 Tube, Plastic 488687 Screw 8−15 X 5/8 2185523 Dispenser, Water W10218037 Evaporator 627018 Nut, Compression 841707 Insert, Tube 2172593 Tube, Water Fill 488660 Nut, Speed...
-
Page 5: Pump Parts
PUMP PARTS For Models: KUIS15NRHW6, KUIS15NRHT6, KUIS15NRHB6, KUIS15NRHS6 (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) Illus. Part DESCRIPTION 2217220 Pump, Water (Complete) 3400884 Screw 8−18 X 5/8 2185677 Cover, Pump 2185585 Bracket, Connector Assembly 8198925... -
Page 6: Control Panel Parts
CONTROL PANEL PARTS For Models: KUIS15NRHW6, KUIS15NRHT6, KUIS15NRHB6, KUIS15NRHS6 (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) Illus. Part DESCRIPTION 2185738 Box, Control 2185657 Transformer 2185592 Assembly, Switch (ALSO ORDER #4) 4 2208317W Overlay 6100499 P.C. Board 2149705 Switch, Plunger 2185694 Lens, LED 2185692 Wiring Harness Grid/ Light 745362 Bulb... -
Page 7: Unit Parts
UNIT PARTS For Models: KUIS15NRHW6, KUIS15NRHT6, KUIS15NRHB6, KUIS15NRHS6 (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) 8198925... - Page 8 UNIT PARTS For Models: KUIS15NRHW6, KUIS15NRHT6, KUIS15NRHB6, KUIS15NRHS6 (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) Illus. Part DESCRIPTION 2185532 Bracket, Fan Mtg. 2185675 Pad, Foam 2190685 Blade, Fan 2188537 Motor, Fan 2187286 Wiring Harness, Complete Unit (Includes Power Cord) 304392 Screw 8−18 X 1/2 2208370 Compressor A201435 Clip, Mounting A201441 Shim (4)
