3Com Router 3016 Installation Manual page 45

7 Select Browse in the Send File dialog box, shown in Figure 1, and select the
application you want to download.

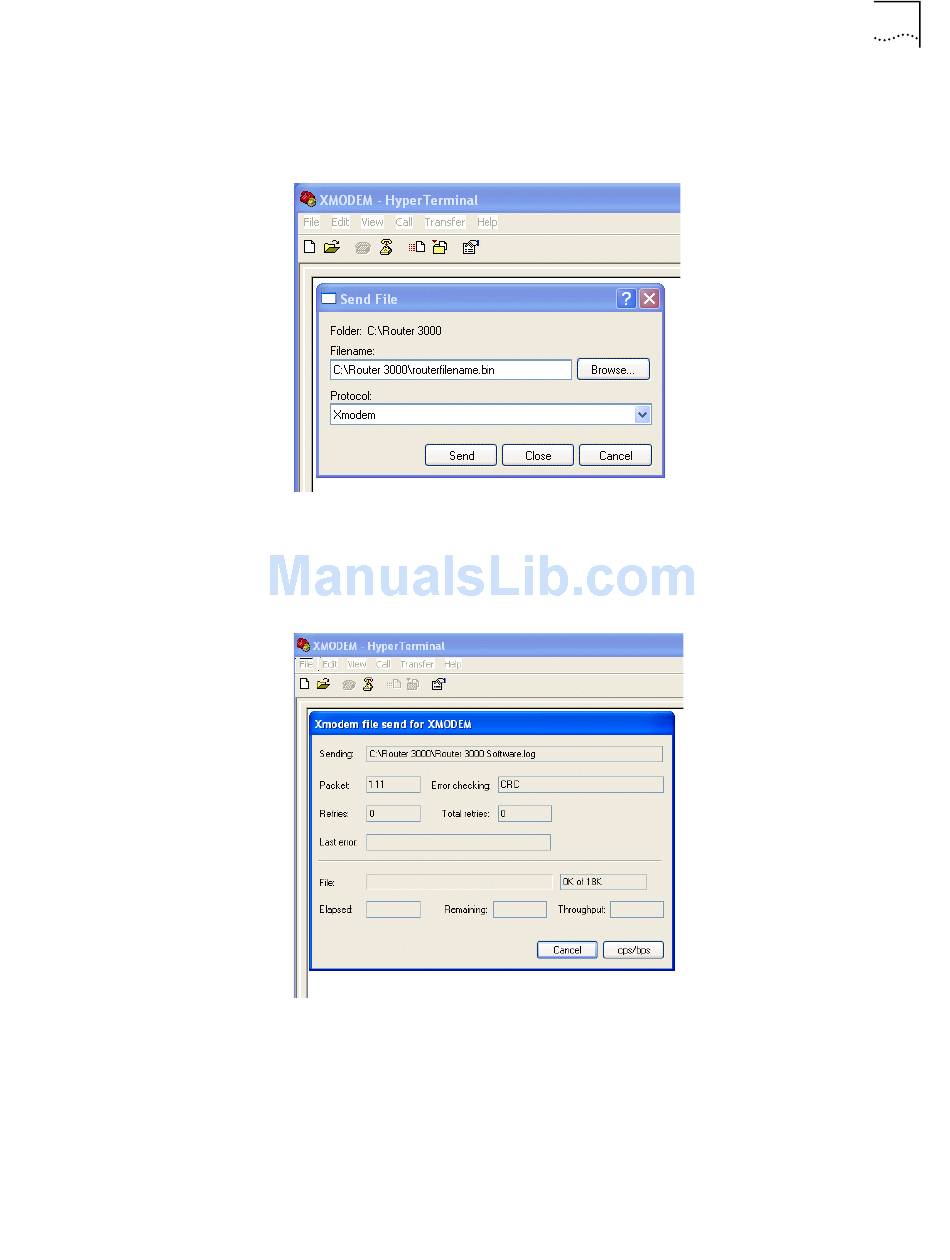

Figure 1 Send File Dialog Box
8 In the Protocol dropdown menu, select Xmodem.
9 Click Send. The system displays the Xmodem file send dialog box, shown in
Figure 2.
Figure 2 Xmodem File Send Dialog Box
After the download is complete, the system begins the operation of writing to
Flash memory, after which, the following information will be displayed in the
terminal interface, indicating that the download is completed:
Download completed.
Writing to flash memory...
Please wait,it needs a long time (about 5 min).
#############################
Write Flash Success.
Please return to 9600 bps. Press ENTER key to reboot the system.
Software Maintenance 45
