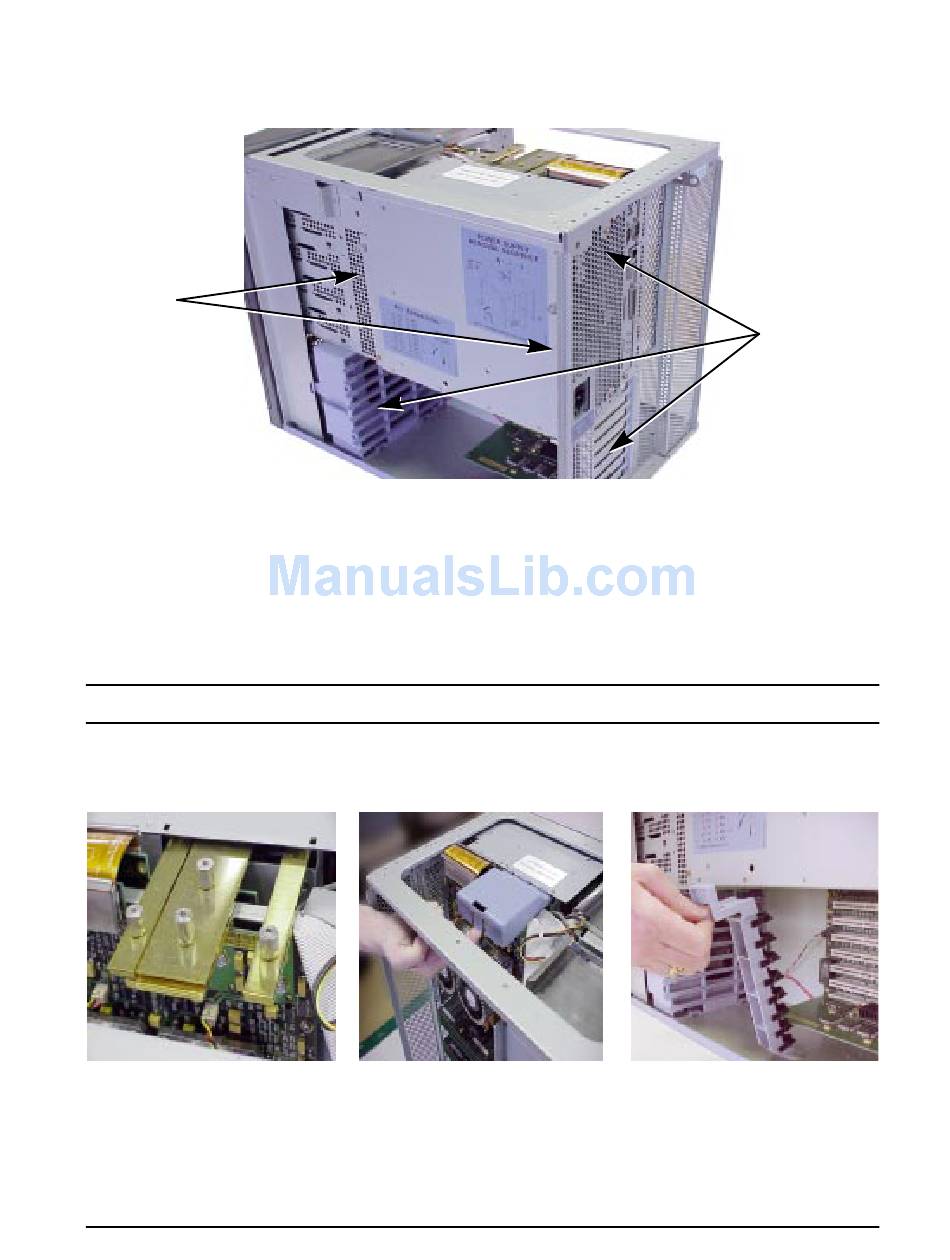

Figure 2-10. Installing the Power Supply, Steps 1–2
Step 1: Replace
Jack Screws
2. Replace the two T-15 Torx screws in the back of the workstation and the one T-15 Torx
screw in the lower left corner of the power supply (Step 2 above).
Replace the T-15 Torx thumbscrews connecting the bus bars to the power supply. (Bus
bar screws have washers and are longer than the other T-15 Torx screws.) Adjust the
bus bars as necessary to prevent them from touching. The screws should be tightened
firmly to insure contact (Step 3 below).
CAUTION
Verify that adjacent bus bars are not touching each other.
Figure 2-11. Installing the Power Supply, Steps 3–5
Step 3: Replace Busbar Screws
Figure 2-12. Replace the bus bar shield (Step 4).
3. Replace the PCI retainer clip (Step 5).
Chapter 2
Step 4: Replace Busbar Shield
Parts Removal and Replacement
Power Supply
Step 2: Replace
T-15 Torx Screws
Step 5: Replace PCI Retainer Clip
21
