Chapter 2

Installation

EasyCoder F2 and F4
2
• Open the electronics compartment by removing the front/
left-hand cover, which is held by three #T20 Torx screws
from the media compartment side of the center section.
Switch off the power and disconnect the power cord. The
electronics compartment contains high voltage components
and wires. Do not open the electronics compartment before
the printer is safely disconnected from any AC supply.
• Remove the two #T10 Torx screws that hold the interface
cover plate on the printer's rear plate. Remove the cover
plate.
EasyCoder F-Series IEEE 1284 Parallel Interface Board – Installation Instructions Ed. 2
Warning!

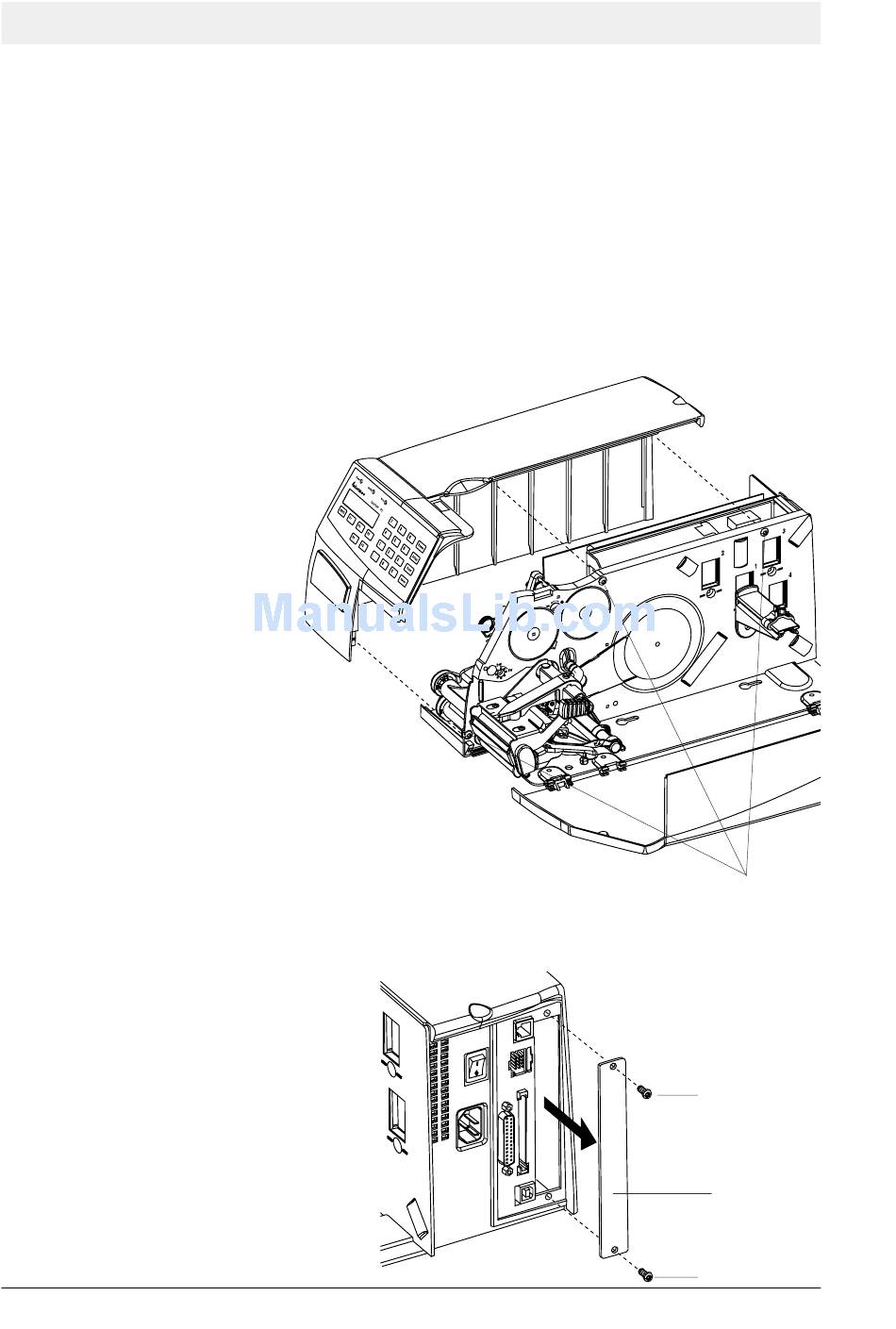

#T20 Torx screws (x3)
#T10 Torx screw
Cover Plate
#T10 Torx screw
