Chapter 2 Installation
EasyCoder F2 and F4,
cont.
4
• Make sure that the cable between CPU board and interface
board runs as illustrated below.
• Put back the front/left-hand cover.
• Connect the power cord.
• Now you have one new interface connector ("centronics:")
on the printer's rear plate in addition to the standard inter-
faces "uart1:" and "usb1:". Connect the parallel interface
cable and switch on the power.
Information in this manual is subject to change without prior notice and
does not represent a commitment on the part of Intermec Printer AB.
© Copyright Intermec Printer AB, 2001. All rights reserved. Published in
Sweden.
EasyCoder, EasyLAN, Fingerprint, and LabelShop are registered trade-
marks of Intermec Technologies Corp. The word Intermec, the Intermec
logo, InterDriver, and PrintSet are trademarks of Intermec Technologies
Corp.
Centronics is a registered trademark of Genicom Corp.
Torx is a registered trademark of Camcar Division of Textron Inc.
EasyCoder F-Series IEEE 1284 Parallel Interface Board – Installation Instructions Ed. 2

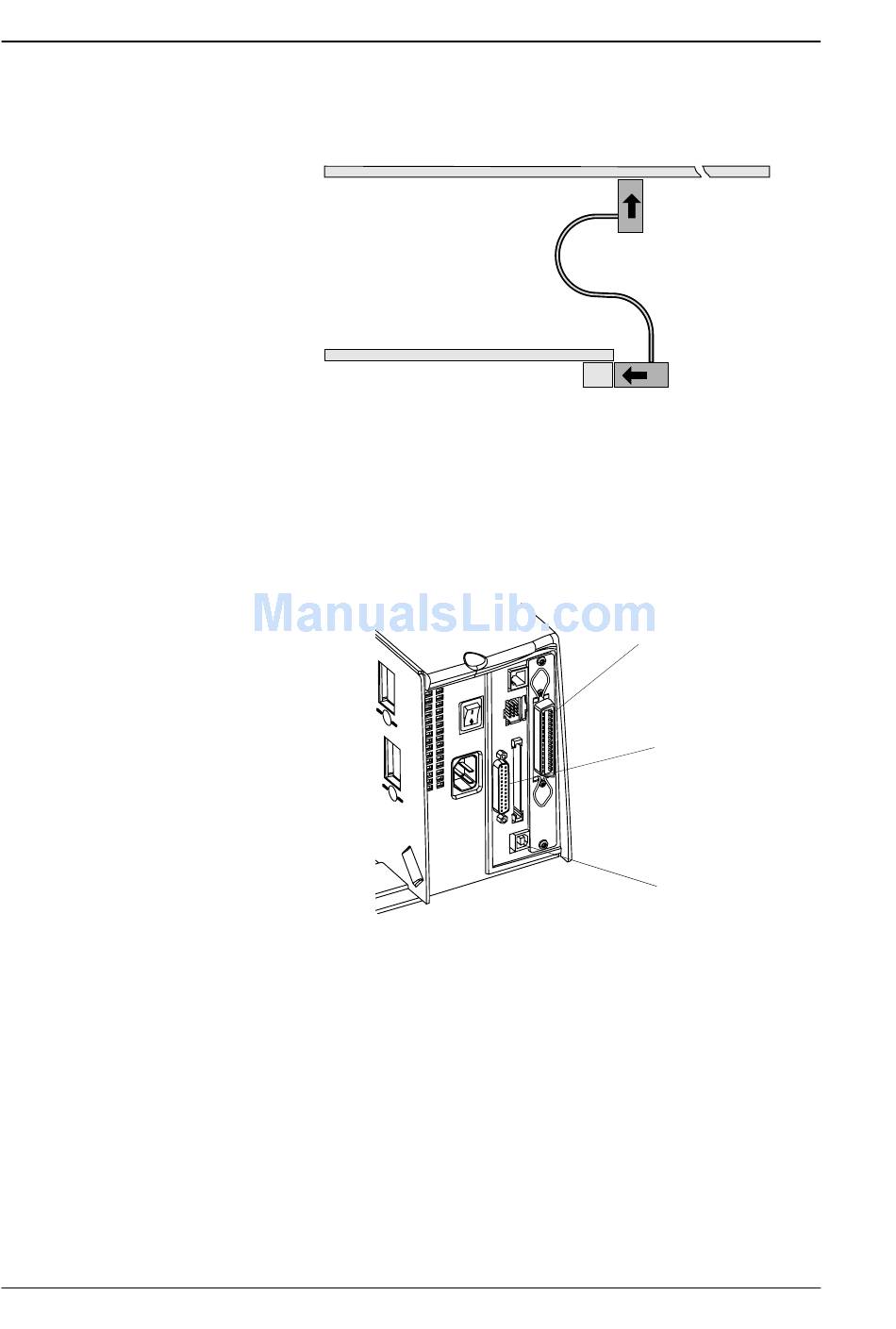

CPU Board
