Intermec EasyCoder F2 Installation Instructions page 4

EasyCoder F2 and F4,
cont.
EasyCoder F-Series IEEE 1284 Parallel Interface Board – Installation Instructions Ed. 2
• Save the cover plate for possible later use. Keep the
screws.

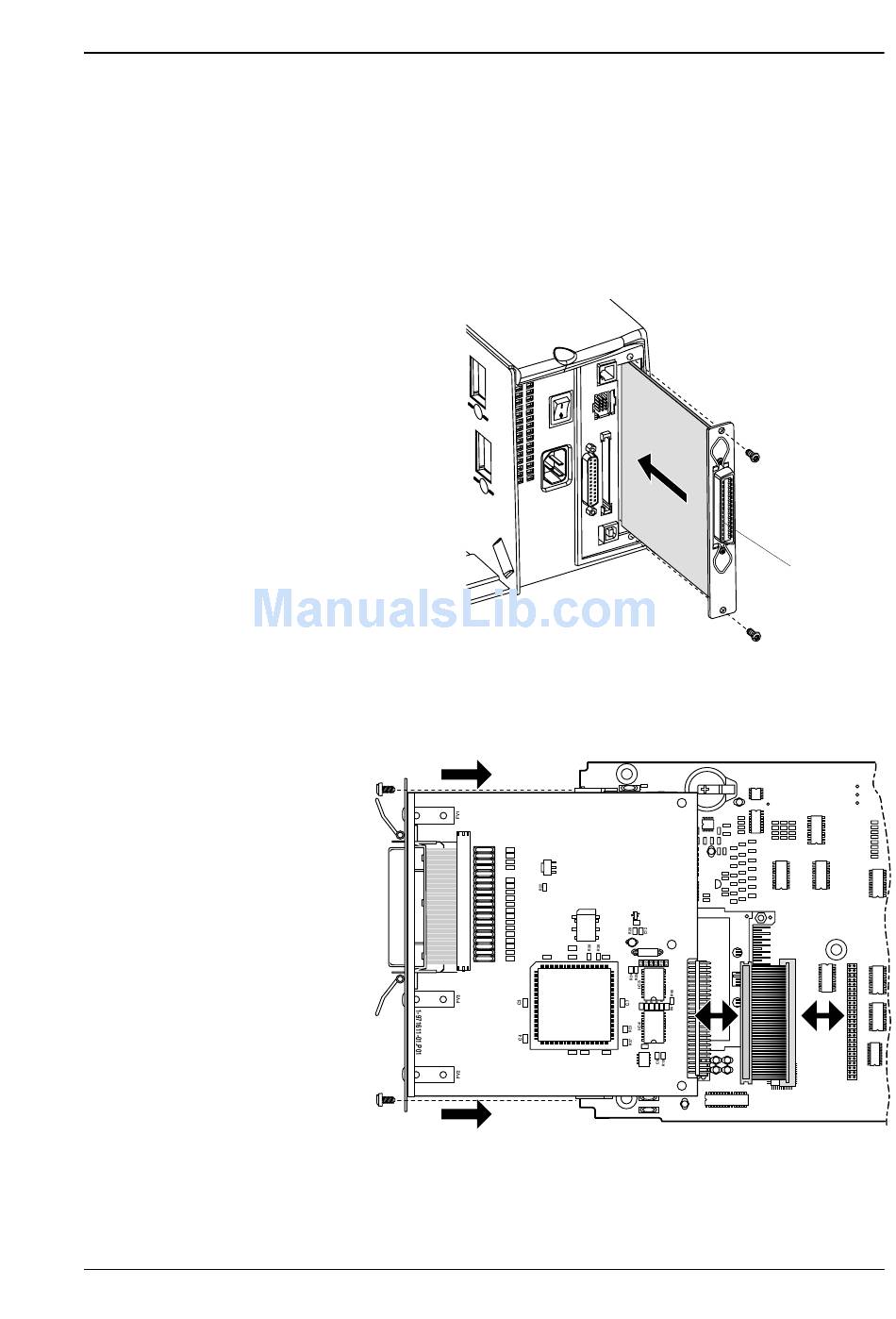

• Insert the interface board with the components side facing
right, as seen from behind.
• Attach the interface board to the printer's rear plate by
means of the two screws left over when you removed the
original cover plate.
• Connect the fl at cable included in the kit between connector
P81 on the CPU board and connector P1 on the interface
board (also see the next page.)
L16
R16
L17 R17
L18 R18
L15 R15
L19
L14
R14
L13 R13
L12 R12
L11 R11
L10 R10
L8
R8
L7 R7
L6
R6
L5 R5
L4 R4
L3 R3
L2 R2
L1
R1
L9 R9
IC1
P3
Chapter 2 Installation
P35
IC305
P33
T1
IC5A
D2
R21
C10
D1
C14
P1 P1
C8
C2
C1
C11
C13
C5 R32 C6
IC2
Interface
Board
P81
3
