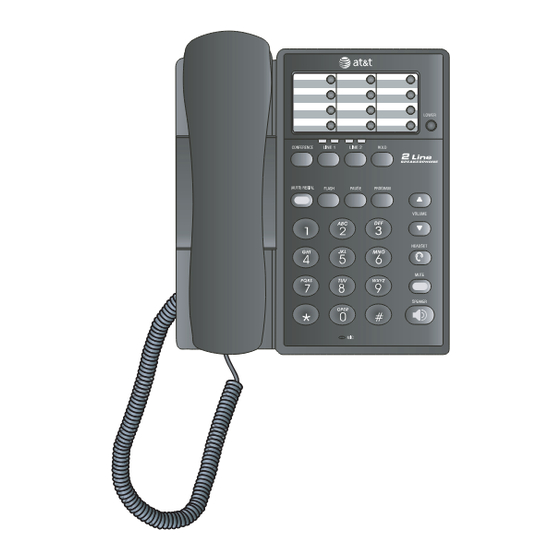

- Page 1 User’s manual Two-line speakerphone...
- Page 2 Congratulations on purchasing your new AT&T product. Before using this AT&T product, please read the Important product information on pages 26-27 of this manual. Please thoroughly read the user’s manual for all the feature operations and troubleshooting information necessary to install and operate your new AT&T product.
- Page 3 You must install the bat- STOP! See page 5 tery before using the tel- for easy instructions. ephone. www.telephones. For customer service or product information, visit our website at att.com 1 (800) 222-3111. 1 (866) 288-4268 or call In Canada, dial CAUTION: To reduce the risk of fire or injury to persons or damage to the telephone, read and follow these instructions carefully: •...
-
Page 4: Table Of Contents
User’s manual Two-line speakerphone Table of contents Getting started Temporary tone dialing .....15 Hold .............16 Quick reference guide ......2 Switch between lines during a Parts checklist .........3 call ............15 Before you install ........4 Three-way conference calls ...15 Battery installation .......5 Directory Tabletop installation ......6 Wall mounting .........8... -
Page 5: Getting Started
Getting started Quick reference guide One-touch keys LOWER Press to dial the number Press LOWER, then stored (page 20). t h e d e s i re d o n e - touch key to dial the number stored in lower locations (page 20). -
Page 6: Parts Checklist
Getting started Parts checklist Save your sales receipt and original packaging in case it is necessary to ship your telephone for warranty service. Check to make sure the telephone package includes the following: User’s manual Quick start guide Two-line speakerphone Two-line speakerphone User's manual Quick start guide... -
Page 7: Before You Install
Getting started Before you install To use this product as a two-line telephone, you must have a two-line modular wall jack or two separate one-line modular wall jacks. To use both lines of a two-line telephone, your local telephone company must provide two telephone numbers. -
Page 8: Battery Installation
Getting started Battery installation Before using the telephone, you should install four AA alkaline batteries (purchased separately). You can use the telephone without batteries to dial and receive calls. However, the line lights and the automatic redial feature will not work, and the speakerphone and optional headset may not work properly in all conditions. -
Page 9: Tabletop Installation
Getting started Tabletop installation After installing the batteries, if you wish to use the telephone on a tabletop, flip the wall mounting bracket upward. A single two-line wall jack If there is a single two-line wall jack, use only the black (4-connector) line cord. Plug one end into the jack labeled L1 or L1/L2 on the back of the telephone. - Page 10 Getting started Tabletop installation Two one-line wall jacks If there are two one-line wall jacks, use both long line cords. Plug one end of the clear cord into the jack labeled L1 or L1/L2 on the back of the telephone. Then, plug the other end into the wall jack for Line 1.
-
Page 11: Wall Mounting
Getting started Wall mounting A single two-line wall jack If there is a single two-line wall jack, use only the black line cord. Install the telephone as shown below: 1. Plug one end of the black line cord into the jack labeled L1 or L1/L2 on the back of the telephone. - Page 12 Getting started Wall mounting Two one-line wall jacks If there are two separate one-line wall jacks, use both line cords. 1. Plug one end of the clear cord into the jack labeled L1 or L1/L2 on the back of the telephone. Plug one end of the black cord into the jack labeled L2 or DATA on the back of the telephone base.
-
Page 13: Data Port & Optional Headset
Getting started Data port & optional headset If you want to connect another device (such as a modem or fax machine) to the wall jack, use the jack labeled L2 or DATA on the back of the telephone base. A call picked up at another extension on the line used by the data port may interrupt a fax, modem or message transmission. -
Page 14: Telephone Operation
Telephone operation Base settings Choose dial mode The factory default setting is TONE. If you do not have touch tone dialing service in your area, it will be necessary to change the setting to PULSE. To set your telephone for dial pulse (rotary) service: Lift the handset (or press SPEAKER) and press a LINE key. -
Page 15: Telephone Operation
Telephone operation Telephone operation Making and answering calls To make a call: • Press LINE 1 or LINE 2 to select a line. Lift the handset, then dial a number. • To end, replace the handset in the telephone base. -OR- •... -
Page 16: Switch Between Handset, Headset, And Speakerphone Mode
Telephone operation Telephone operation Switch between handset, headset, and speaker- phone mode While using the handset: • Press HEADSET to switch to headset (if a headset is connected) or press SPEAKER to switch to speakerphone. While using the headset: • Lift the handset and the headset is automati- cally turned off. -
Page 17: Erase Redial Memory
Telephone operation Telephone operation Erase redial memory Press a LINE key to select the line. Lift the handset or press SPEAKER or press HEADSET (if a headset is connected). Press PROGRAM, (AUTO) REDIAL, PROGRAM. Automatic redial This telephone can automatically and repeatedly redial the last number you dialed. -
Page 18: Options While On Calls
Telephone operation Options while on calls Set handset, speakerphone, headset volume While on calls, press VOLUME to increase or decrease the listening volume. There will be a triple-beep when you reach the maximum or minimum volume setting. Mute While on a call, press MUTE to silence the micro- phone during a conversation. -
Page 19: Hold
Telephone operation Options while on calls Hold Press HOLD to put a call on hold. You can place the handset in the telephone base after a call is put on hold. To return the call: • Press the appropriate LINE key and lift the handset. -OR- •... -
Page 20: Three-Way Conference Calls
Telephone operation Options while on calls Three-way conference calls You can use both lines at the same time to set up a three-way conference call. Make or answer a call and press HOLD. Make a call on the other line. Press CONFERENCE. -
Page 21: Directory
Directory Directory Telephone numbers called most frequently can be stored in speed dial keys so that they can be dialed with only one key press. You can enter 24 telephone numbers with up to 24 digits each. There are 12 speed dial keys and each key has two locations (upper location and lower locations) to store two telephone numbers separately. -
Page 22: Speed Dialing
Directory Speed dialing To store a number in speed dial Press SPEAKER, or press HEADSET (if a headset is connected) or lift the handset. Press and release PROGRAM. There will be a beep. Enter the telephone number you want to store (up to 24 digits) or press (AUTO) REDIAL to store the number last dialed. - Page 23 Directory Speed dialing To call a speed dial number • Press LINE 1 or LINE 2 to select a line. • Lift the handset, or press SPEAKER, or press HEADSET (if a headset is connected). • Press and release the desired speed dial key. -OR- Press LOWER, then press the desired speed dial key.
-
Page 24: Appendix
Appendix Alert tones & indicator lights Alert tones Confirmation tone Command completed successfully. You have made a mistake. Five beeps The volume level is at the maximum or minimum Three beeps setting. A series of beeps Low battery warning. Indicator lights LINE Red: •... -
Page 25: Troubleshooting
Appendix Troubleshooting If you have difficulty with your telephone, please try the suggestions below. www.telephones.att.com For Customer Service, visit our website at 1 (800) 222-3111. 1 (866) 288-4268. call In Canada, dial My telephone • Make sure the telephone line cord is plugged firmly into the does not work telephone base and the modular wall jack. - Page 26 Appendix Troubleshooting • Test a working telephone at the same telephone jack. If another telephone has the same problem, the problem is in the telephone jack. Contact your local telephone company (charges may apply). • The telephone line cord might be malfunctioning. Try installing a new telephone line cord.
- Page 27 Appendix Troubleshooting I hear other • Disconnect the telephone base from the telephone jack. calls when using Plug in a different telephone. If you still hear other calls, the telephone the problem is probably in the wiring or local service. Call your local telephone company.
- Page 28 Appendix Troubleshooting Diffculty storing • Review To store a number in speed dial on page 19 to numbers in the make sure you are pressing the correct sequence of keys. memory • If you are interrupted by a recorded announcement telling you to hang up (or a loud buzzing noise), hang up and try to enter the number more quickly.
-
Page 29: Important Product Information
Appendix Important product information This symbol is to alert you to important operating or servicing instructions that may appear in this user’s manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electric shock. Safety information •... -
Page 30: Save These Instructions
Appendix Important product information Especially about corded telephones • Electrical power: The telephone must be connected to a working electrical outlet. The electrical outlet should not be controlled by a wall switch. Calls cannot be made if the telephone base is unplugged or switched off, or if the electrical power is interrupted. -
Page 31: Fcc And Acta Information
Appendix FCC and ACTA information If this equipment was approved for connection to the telephone net- work prior to July 23, 2001, it complies with Part 68 of the Federal Communications Commission (FCC) rules. If the equipment was approved after that date, it complies with the Part 68 rules and with Technical Requirements for Connection of Equipment to the Telephone Network adopted by the Administrative Council for Terminal Attachments (ACTA). - Page 32 Appendix FCC and ACTA information 3. Repair instructions If this equipment is malfunctioning, it must be unplugged from the modular jack until the problem has been corrected. Repairs to this telephone equip- ment can only be made by the manufacturer or its authorized agents. For repair procedures, follow the instructions outlined under the limited warranty.
-
Page 33: Part 15 Of Fcc Rules
Appendix Part 15 of FCC rules Some telephone equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used properly, may cause interference to radio and television reception. This product has been tested and found to meet the standards for a class B digital device, as specified in part 15 of the FCC rules. -
Page 34: Limited Warranty
Appendix Limited warranty The AT&T brand is used under license - any repair, replacement or warranty service, and all questions about this product should be directed to: In the www.telephones.att.com United States of America visit our website at 1 (800) 222-3111 1 (866) 288-4268 call . - Page 35 Appendix Limited warranty 4. What is not covered by this limited warranty? This limited warranty does not cover: • PRODUCT that has been subjected to misuse, accident, shipping or other physical damage, improper installation, abnormal operation or handling, neglect, inundation, fire, water, or other liquid intrusion; or •...
- Page 36 Appendix Limited warranty 6. What must you return with the PRODUCT to get warranty service? You must: a. Return the entire original package and contents including the PRODUCT to the service location along with a description of the malfunction or difficulty;...
-
Page 37: Technical Specifications
Appendix Technical specifications 1.1B Battery power 4 AA alkaline batteries Product weight 1.85 pounds Product dimensions 8.27 inches long x (unpacked) 7.01 inches wide x 3.94 inches high Operating temperature 32°F to 122°F 0°C to 50°C... -
Page 38: Index
Appendix Index Alert tones, 21 Speakerphone, 12 Answering calls, 12 Speed dial, 19 Battery installation, 5 Technical specifications, 34 Temporary tone dialing, 15 Troubleshooting, 22 Call waiting, 15 Volume control, 15 Dialing, directory dialing, 20 mode, 11 Directory, 18 dial number, 20 make an entry, 19 Erase redial memory, 14 Flash (switchhook flash), 15... - Page 39 www.telephones.att.com © 2007 Advanced American Telephones. All rights reserved. AT&T and the AT&T logo are trademarks of AT&T Knowledge Ventures, licensed to Advanced American Telephones. Printed in China. Issue 1 AT&T 08/07.
