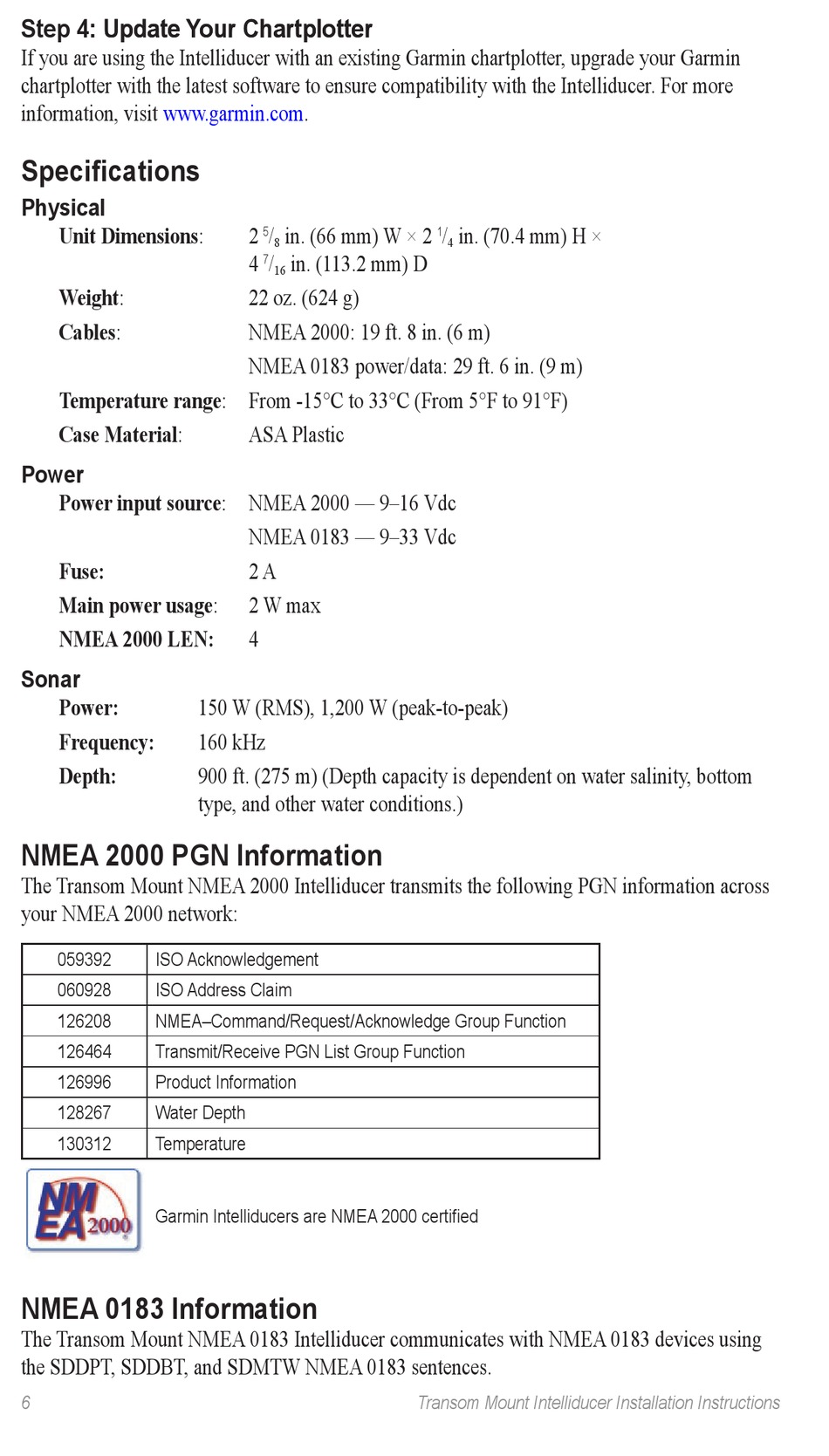

Step 4�: �pdate �our Chartplotter
: �pdate �our Chartplotter
If you are using the Intelliducer with an existing Garmin chartplotter, upgrade your Garmin
chartplotter with the latest software to ensure compatibility with the Intelliducer. For more
information, visit www.garmin.com.
Specifications
Physical
unit Dimensions:
Weight:
Cables:
Temperature range: From -15°C to 33°C (From 5°F to 91°F)
Case Material:
Power
Power input source: NMEA 2000 — 9–16 Vdc
Fuse:
Main power usage:
NMEA 2000 LEN:
Sonar
Power:
Frequency:
Depth:
NMEA 2000 PGN Information
The Transom Mount NMEA 2000 Intelliducer transmits the following PGN information across
your NMEA 2000 network:
059392
ISO Acknowledgement
060928
ISO Address Claim
126208
NMEA–Command/Request/Acknowledge Group Function
126464
Transmit/Receive PGN List Group Function
126996
Product Information
128267
Water Depth
130312
Temperature
Garmin Intelliducers are NMEA 2000 certified
NMEA 0183 Information
The Transom Mount NMEA 0183 Intelliducer communicates with NMEA 0183 devices using
the SDDPT, SDDBT, and SDMTW NMEA 0183 sentences.
2
/
in. (66 mm) W × 2
5
8
4
/
in. (113.2 mm) D
7
16
22 oz. (624 g)
NMEA 2000: 19 ft. 8 in. (6 m)
NMEA 0183 power/data: 29 ft. 6 in. (9 m)
ASA Plastic
NMEA 0183 — 9–33 Vdc
2 A
2 W max
4
150 W (RMS), 1,200 W (peak-to-peak)
160 kHz
900 ft. (275 m) (Depth capacity is dependent on water salinity, bottom
type, and other water conditions.)
/
in. (70.4 mm) H ×
1
4
Transom Mount Intelliducer Installation Instructions
