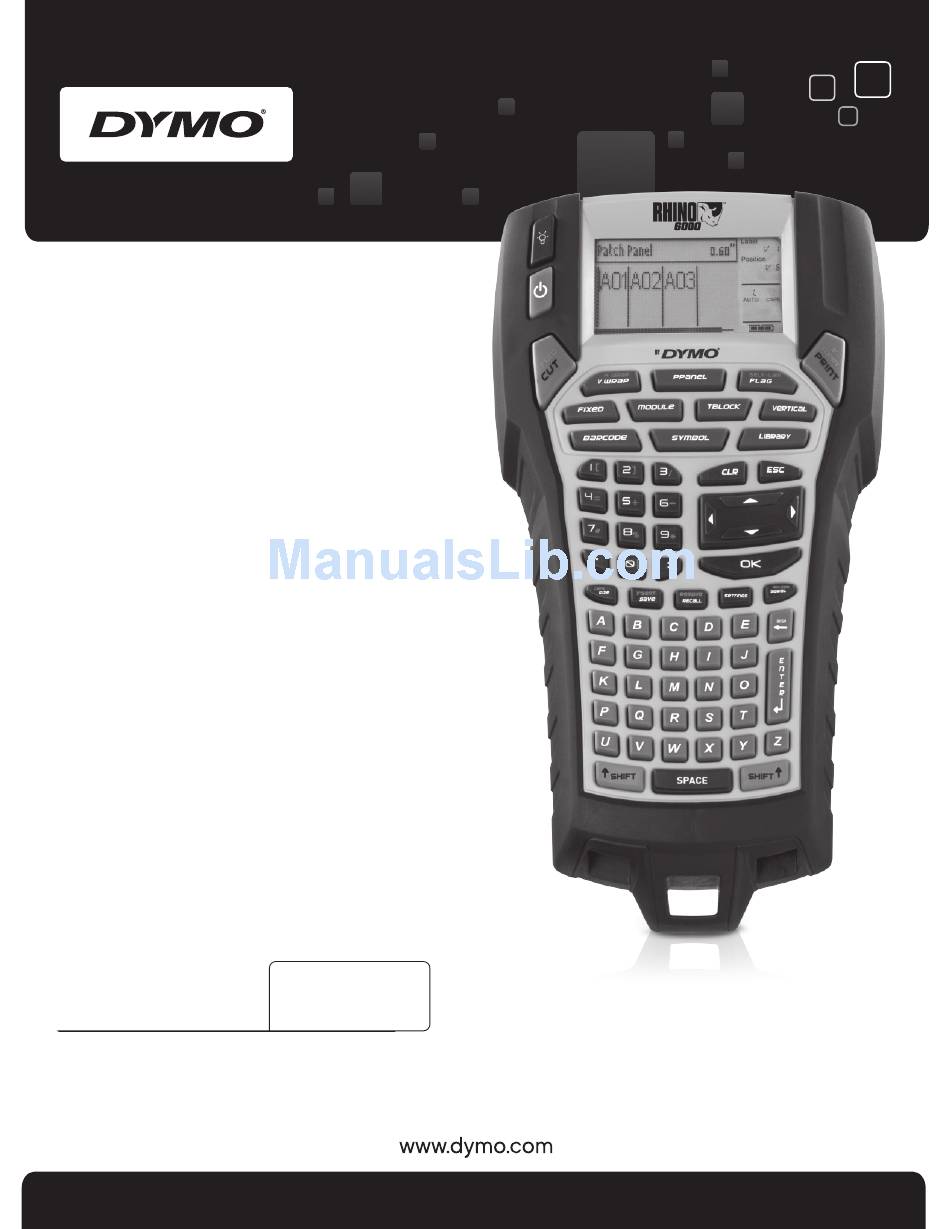

  • Page 1 User Guide Rhino 6000...

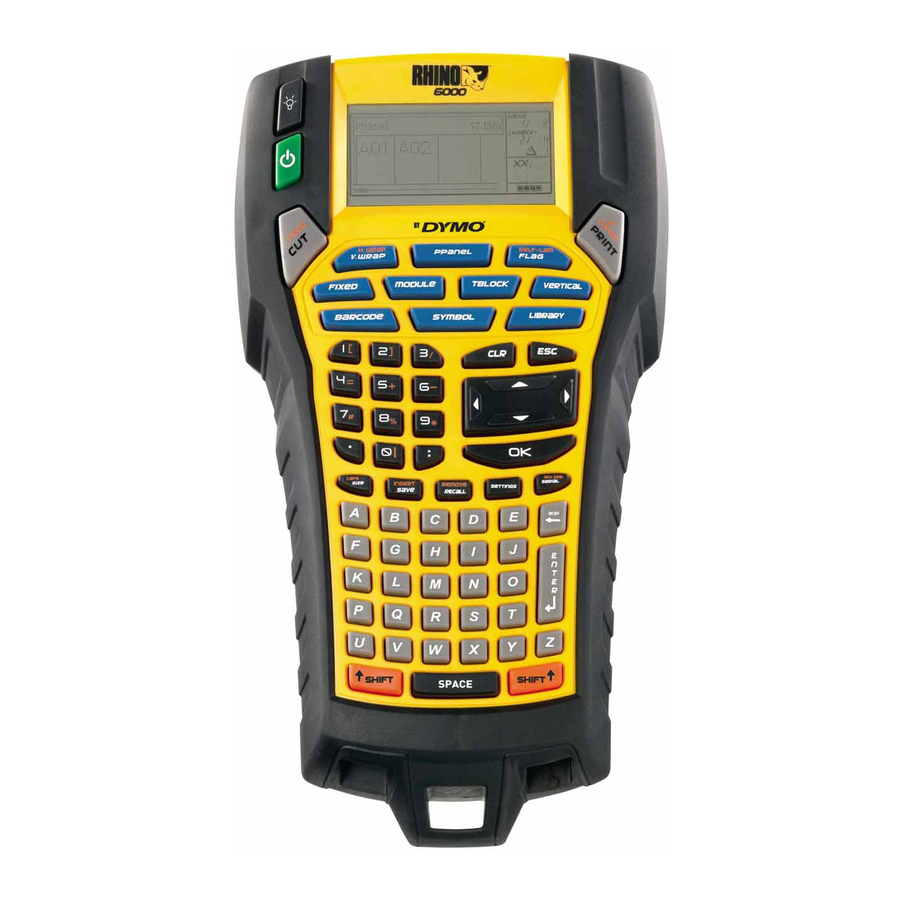

  • Page 2 Tape Exit Backlight LCD display Power Print/# of copies Cut/Feed Hot Keys Library Barcode Escape Symbol Clear Navigation keys Serialization Size/CAPS Save/Insert Settings Recall/Remove Backspace Enter Shift USB connector Space bar Power connector Figure 1 RHINO 6000 LabelPrinter...

  • Page 3: Table Of Contents

    Contents About Your New Printer ............1 Getting Started .
  • Page 4 Creating Multi-Line Labels ............. . . 6 Using International Characters .
  • Page 5 Using Simultaneous Serialization ............13 Using Advanced Serialization .

  • Page 7: About Your New Printer

    Figure 2 heat shrink tubes. 2. Plug the other end of the power adapter into a Visit www.dymo.com for information on the full line power outlet. of labels and accessories for your printer. Inserting the Battery Pack...

  • Page 8: Recharging The Battery Pack

    5. Reset the tape width as described in Setting the Your printer comes with a starter tape cassette. Visit Tape Width. www.dymo.com for information about purchasing Setting the Tape Width additional tape cassettes. Each time you insert a tape cassette into the printer,...

  • Page 9: Selecting Units Of Measure

    Selecting Units of Measure Feature Caption bar indicators You can choose to work in inches or millimeters. To select the units of measure 1. Press SETTINGS and select Units. Battery level 2. Select Inch or mm. indicator 3. Press OK and then select Done (ESC). Figure 5 Getting to Know Your Printer When the text you have entered will not fit on the...

  • Page 10: Hiding The Caption Bar

    Hiding the Caption Bar Navigation Keys The Caption bar at the top of the display shows the The navigation keys operate as follows: current label type and for some label types, additional Function information about the label, such as size or barcode Moves one character to the left in the display type.

  • Page 11: Working With Label Files

    Working with Label Files Removing Labels from a File You can remove one or more labels from a label file. The printer creates and stores labels as label files. A To remove a label label file can contain one or more labels. When you create a new label, you also create a new label file.

  • Page 12: Formatting A Label

    Formatting a Label Creating Multi-Line Labels You can create multi-line labels depending upon the You can choose from a number of formatting options width of the label tape, as follows: to enhance the appearance of your labels. Tape Changing the Text Size 6 mm 9 mm 12 mm 19 mm 24 mm...

  • Page 13: Creating Wire Wrap Labels

    The hot keys toggle the label type on and off. For To create a horizontal wrap label example, if you choose Flag and later want a General 1. Press H.WRAP (SHIFT + V.WRAP). label, just press the Flag key a second time to remove 2.

  • Page 14: Creating Fixed Length Labels

    To print a flag label To create a patch panel label 1. Press FLAG. 1. Press PPANEL. 2. Enter the length for the flag portion of the label. 2. Select Port distance. Select AUTO to have the length automatically set to 3.

  • Page 15: Creating Module Labels

    Creating Module Labels 4. Select Multipliers and press OK. 5. Use the arrow keys to select the module number to The Module label type allows you adjust and press =. to label a row of fuses. You set the 6. Select the multiplier for that module. width of a fuse and the number of 7.

  • Page 16: Changing The Label Settings

    If the data from one label type will not fit in the new You can only print a barcode on 19 mm and 24 mm label type, the text that will not fit is shaded in the wide label tape. You can choose to print the human- display.

  • Page 17: Hiding Barcode Text

    Hiding Barcode Text To insert a symbol 1. Press SYMBOL. You can choose to hide the human-readable text for 2. Select Default, if necessary. the barcode. 3. Select a category of symbols. To hide barcode text 4. Use the arrow keys to find the symbol you want. 1.

  • Page 18: Inserting Library Text

    Inserting Library Text Adding Graphics Library text added to a label can be edited, formatted, When labels are transferred to the printer from RHINO or deleted just like text you enter from the keypad. Connect Software, any images are stored separately in To add text to a label the printer as graphic files.

  • Page 19: Using Simple Serialization

    Using Simple Serialization 5. Select the second character position you want to increment and press OK. Simple serialization creates a series of labels by 6. Select the amount you want to increment these incrementing one alphanumeric character in the characters on each label and press OK. You can pattern.

  • Page 20: Printing Options

    Printing Options To collate multiple copies 1. Press SETTINGS. You can choose to print multiple copies of the same 2. Select Collate multi. copies and press OK. label, collate the copies, pause to cut between labels, 3. Select On. advance the label tape, and adjust the print 4.

  • Page 21: Using Printer Memory

    Using Printer Memory To delete a label from memory 1. Press RECALL. The saved label files are displayed. The printer has a powerful memory feature that can 2. Use the arrow keys to move to the label file you wish store label files for later recall.

  • Page 22: Using Rhino Connect Software

    • Import data from any Windows program • Create labels using the step-by-step wizard • Print labels directly from RHINO Connect Software Visit www.dymo.com for more information about obtaining the software. In addition, you can download a free Windows printer driver so you can print directly to your RHINO printer from any Windows application.

  • Page 23: Symbols

    Symbols The following tables list the default symbols by category. Electrical Brackets Arrows Numbers Voice/Data Currency Audio/Video Warning Punctuation...

  • Page 24: Library Text

    Library Text The following tables list the library text by category. Location Audio ATTIC KITCHEN ANALOG PHONO BACK LAUNDRY ROOM AUDIO RIGHT BACK SPKR BASEMENT LEFT RIGHT FRONT SPKR BATH LIBRARY CENT FRONT SPKR RIGHT OUTD. SPKR BEDROOM LIVING ROOM CENTER BACKSPKR RIGHT SIDE SPKR BILLIARDS ROOM...
  • Page 25 Voice/ Data CABLE MODEM LAPTOP NETWORK DSLAM PHONE DEMARC PHONE SYSTEM DESKTOP VoIP INTERNET WIRELESS Security BACK DOOR HEAT DETECTOR CCTV HIGH WATER CAMERA HORN CARBON MONOXIDE LOW TEMP CELL MOTION SENSOR CONTACT CONTROLLER PHONE DOOR POOL DOOR CONTACT POWER DRIVEWAY REMOTE DUAL TECH...

  • Page 26: Troubleshooting

    Troubleshooting Review the following possible solutions if you encounter a problem while using your printer. Problem/Error Message Solution Battery Low • Attach the power adapter. Battery Empty • Recharge the battery pack. See Recharging the Battery Pack. • Insert new AA alkaline batteries as a temporary power source.
  • Page 27 • Press the jammed key firmly until it returns to its normal position. If you still need assistance, contact DYMO Customer Support for your country. A list of contact numbers for each country is listed inside the back cover of this User Guide.
  • Page 28 Safety Precautions for Lithium-Ion Rechargeable Battery Pack Inaccurate handling of Lithium-ion rechargeable battery may cause leakage, heat, smoke, an explosion, or fire. This could cause deterioration of performance or failure. This may also damage the protection device installed in the battery pack. This could damage equipment or injure users. Thoroughly follow the instructions below. While Charging è...

  • Page 29: Documentation Feedback

    We also welcome your suggestions about additional topics you would like to see covered in the documentation. Send email messages to: documentation@dymo.com Please keep in mind that this email address is only for documentation feedback. If you have a technical question,...

  • Page 31: Contacting Customer Support

    Contacting Customer Support The following table provides a list of telephone numbers to reach DYMO Sales and Support departments. You can also reach DYMO at www.dymo.com. Country Telephone Support Fax Support Australia 1800/ 633 868 1800/ 817 558 België/Belgique 02/713 38 08...
  • Page 32 This product is CE marked in accordance with the EMC directive and the low voltage directive and is designed to conform with the following international standards: US FCC Class B Compatibility Safety - EN 60950, IEC 950, UL 1950 EMC Compatibility EN 61000 3-2/3; EN 61000 4-2/3/4/5/6/8/11; ENV 50204; EU Immunity –...
