Summary of Contents for Dynaudio BM 10S
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS The lightning flash with an arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. Read these instructions. - Page 4 Never use cleaners or chemicals. About Wood Veneer Finishes Dynaudio speaker cabinets are finished with the highest quality real wood veneers. As with many natural products, wood finish may change color over time, particularly if exposed to bright sunlight.
-
Page 5: Table Of Contents
TABLE OF CONTENTS introduction Introduction Important Safety Instructions & Certificate of Conformity and Maintenance . . .a-b Table of Contents ..... . .3 Introduction . -
Page 6: Introduction

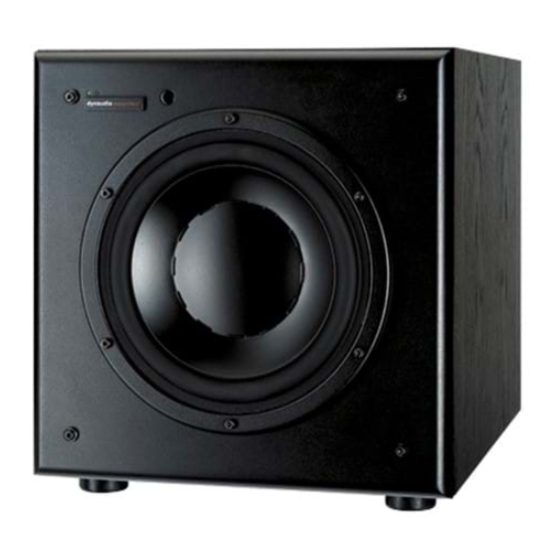

Congratulations! Thank you for purchasing this Dynaudio subwoofer. With it, you have chosen for the latest in audio technology and engineering, culminating into the finest in audio reproduction. With their dynamic, accurate performance and ease of integration into even elaborate systems, Dynaudio subwoofers are ideally suited to obtain maximum enjoyment from High-Resolution formats such as DVD-Audio™... -
Page 7: Quick Setup Reference
We strongly recommend that you do read through the instruction manual in order to get the best performance from your Dynaudio subwoofer, even if you already have installed the subwoofer. Installing: • Carefully unpack the subwoofer and accessories. -
Page 8: Installation And Connections
INSTALLATION & CONNECTIONS Unpacking Due to its weight and size, we strongly recommend that help is at hand when unpacking and installing the subwoofer. Unpack the subwoofer on a clean, even and soft area; floor carpeting is very suitable. Please refer to Fig. -
Page 9: Back Panel
Figure 2 1. Mains power Input. 2. Power switch 3. Balanced audio Input 4. Unbalanced audio Input 5. Balanced processed audio Output BACK PANEL 6. Unbalanced processed audio Output 7. Input Master/Slave function switch 8. Preset/Settings Store & Protect switch 9. -
Page 10: Setting Up & Tuning In
(Volume, Low-Pass filter (Hz), Phase and LF Extension). Using the Master/Slave feature of Dynaudio subwoofers this is easily achieved: The Master subwoofer (connected directly to the subwoofer Output of the amplifier or receiver) will control all Slave subwoofers (connected to the Master subwoofer). -
Page 11: Remote Control And Battery Connection
Provided your processor or receiver has a XLR symmetric or balanced Output for subwoofer you should consider using the XLR Input (No. 3 in fig. 2) on the Dynaudio subwoofer. In a setup with multiple subwoofers you can use the XLR connections between the Master and Slave subwoofers, even if the connection between the processor or receiver has been made using the RCA connectors. -
Page 12: Adjusting Settings
SETTING UP & TUNING IN Adjusting the settings and using the subwoofer Once you have ensured yourself that all necessary connections have been made, the subwoofer can be switched on and used. With the exception of the mains power switch (No. 2 in fig. 2) controlling the subwoofer is done through the DSC 1 remote control;... -
Page 13: Temporary Manual Mode For On/Standby
The right volume level is one of the critical aspects of correct and seamless integration of any subwoofer as part of a speaker system. Please refer to the chapter "Finding the correct settings" for more information. • Together with the other settings, the volume level can be stored in one of the 4 presets. -
Page 14: Setting Cross-Over Frequency
Selecting EXT On or Off EXT stands for Extension, in this case Low Frequency Extension. Dynaudio subwoofers allow for deep and accurate bass response even at high levels. In the EXT Off mode, the very deepest bass will be mildly filtered; this will allow the subwoofer to achieve even higher sound pressure levels. -
Page 15: Positioning The Subwoofer
Remember that the Dynaudio subwoofers allow for 4 different preset settings, so you can store a preset with the setting that matches the occasion (be it for action movie or music listening) best. - Page 16 POSITIONING THE SUBWOOFER Fig. 8 • Generally, avoid placing the subwoofer at ¼, ½ or ¾ of either the length or width of the room as at these locations the room-modes are likely to be strongest (the dashed lines in fig. 8) Fig.
-
Page 17: Finding Optimal Settings
FINDING THE OPTIMAL SETTINGS Multiple subwoofers. By using carefully positioned multiple subwoofers it is pos- sible to even out the different room-modes and thus create a more coherent overall bass response in the room. It is worth experimenting with different locations around the room for the additional subwoofers, even using the rear of the room. - Page 18 Output in the deeper bass range, in which case the cross- over frequency should be set to 60Hz. A small or very small speaker will have less deep bass Output in which case the setting should be 80Hz. or 100Hz. To find the correct setting in such scenarios: •...
-
Page 19: Phase
With the phase settings you can adjust the timing relationship between the subwoofers and main speakers. If either subwoofer or main speaker are slightly delayed in response in relation to the other, it can result in decreased bass Output in the frequency response area where they overlap each other.. -
Page 20: Troubleshooting
Problem The subwoofer switches itself off while music is being played The subwoofer responds intermittently to remote control commands The subwoofer will not switch on at all The subwoofer will not switch on automatically The subwoofer will not switch to standby automatically I cannot store a setting Subwoofer is switched on but no sound... -
Page 21: Factory Defaults
Factory Default settings. The factory default settings are as follows: Power Mode: Automatic Phase: 0° Level: EXT: LF Cut-off: 100Hz To reinstate the factory default settings: • Switch the subwoofer off completely using the switch on the back panel (No.2 in fig.2). •... -
Page 22: Technical Specifications
TECHNICAL SPECIFICATIONS Technical Specifications for BM10S BM12S Frequency Response (+/- 3 dB) Low Frequency Limit* High Frequency Limit* Amplifier Power Crossover Frequencies Crossover Slope Crossover Bypass Phase adjustment Inputs Input Sensitivity for Full Output* Maximum Input Input Impedance Output Master / Slave Link Remote Control No.
