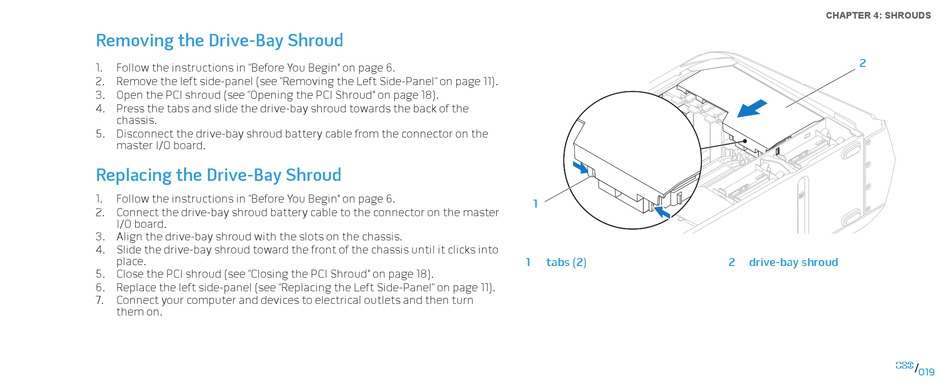

Removing the Drive-Bay Shroud

1. Follow the instructions in "Before You Begin" on page
2. Remove the left side-panel (see "Removing the Left Side-Panel" on page
3. Open the PCI shroud (see "Opening the PCI Shroud" on page
4. Press the tabs and slide the drive-bay shroud towards the back of the
chassis.
5. Disconnect the drive-bay shroud battery cable from the connector on the
master I/O board.

Replacing the Drive-Bay Shroud

1. Follow the instructions in "Before You Begin" on page
2. Connect the drive-bay shroud battery cable to the connector on the master
I/O board.
3. Align the drive-bay shroud with the slots on the chassis.
4. Slide the drive-bay shroud toward the front of the chassis until it clicks into
place.
5. Close the PCI shroud (see "Closing the PCI Shroud" on page
6. Replace the left side-panel (see "Replacing the Left Side-Panel" on page
7. Connect your computer and devices to electrical outlets and then turn
them on.
6.
11).
18).
6.
1
1 tabs (2)
18).
11).
CHAPTER 4: SHROUDS
2
2 drive-bay shroud
