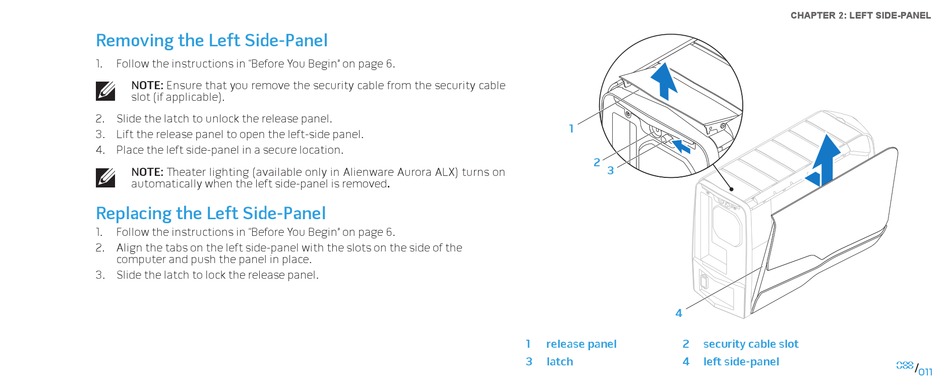

Removing the Left Side-Panel

1. Follow the instructions in "Before You Begin" on page
NOTE: Ensure that you remove the security cable from the security cable
slot (if applicable).
2. Slide the latch to unlock the release panel.
3. Lift the release panel to open the left-side panel.
4. Place the left side-panel in a secure location.
NOTE: Theater lighting (available only in Alienware Aurora ALX) turns on
automatically when the left side-panel is removed.

Replacing the Left Side-Panel

1. Follow the instructions in "Before You Begin" on page
2. Align the tabs on the left side-panel with the slots on the side of the
computer and push the panel in place.
3. Slide the latch to lock the release panel.
6.
6.
1 release panel
3 latch
1
2
3
4
2 security cable slot
4 left side-panel
CHAPTER 2: LEFT SIDE-PANEL
