Installing as a built-in cabinet

1
2

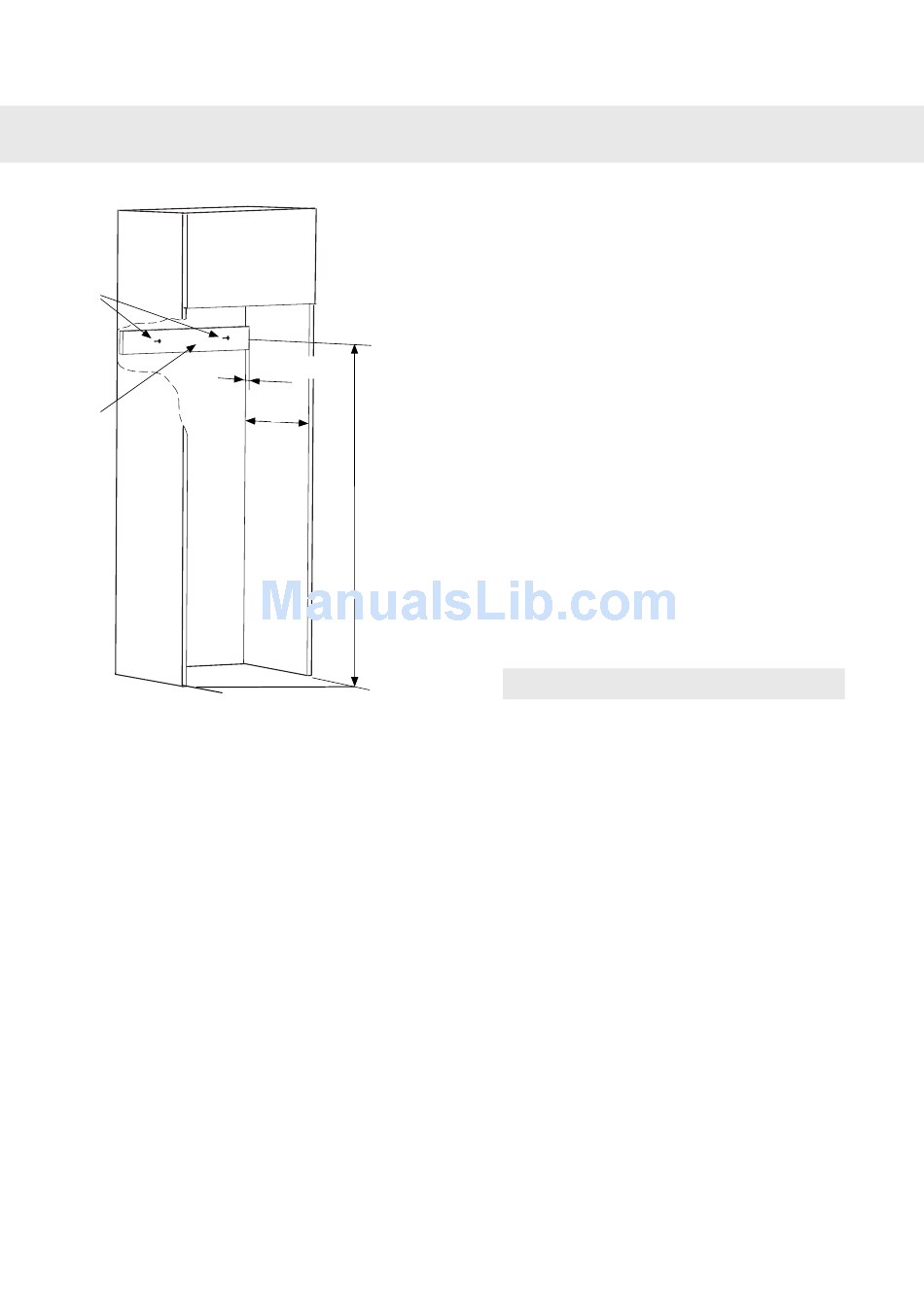

Figure 1
The drying cabinet has a depth of 23,6" (600 mm).
Use screws and, if applicable, plastic plugs of a
suitable length to match the material of the rear
wall of the recess.
1. Measure assembly depth "B" where the drying
cabinet is to be installed (see figure 1).
2. If assembly depth "B" is greater than 23,6" (600
mm), a wooden batten (2) of thickness "A"
must be cut to size. The wooden batten is not
supplied.
3. Slide the drying cabinet into position so that
the front aligns with the front of the recess.
Keep the door closed.
4. There should be an air gap of at least 0,4" (10
mm) above the drying cabinet (see figure 2) in
order to ensure optimum drying performance
from the cabinet.
16
A=B-23-5/8"
B
DC7573
59"-60"
DC7583
64-1/2"-
65-1/2"
Min. 23,6"
(600mm)
Customer Care Center
1-800-898-1879
www.askousa.com
5. Open the door. Align the drying cabinet
horizontally by following the instructions in the
"Level adjustment" section.
6. Pull out the top hanger section and use a pen
to mark the position of the hole on the wall
behind.
7. Slide the hanger section back in, close the
door, and pull out the drying cabinet again. If
assembly depth "B" is the same as the depth
of the drying cabinet, you can jump straight to
step 10 below.
8. Cut a wooden batten (2) of thickness "A" and
with a length of 19,7-22,6" (500-575 mm). It
must be as thick as the difference between
assembly depth "B" and 23,6" (600 mm). If
assembly depth "B" is 24,4" (620 mm), batten
thickness "A" must be 0,8" (20 mm).
9. Screw the wooden batten into position with two
screws (1) on the wall behind the drying
cabinet at the same height as the marked
holes, as set out in step 6.
NOTE!
Do not position the screws for the wooden
batten in the same location as the holes
marked on the wall for securing the drying
cabinet. Ensure that the wooden batten is
screwed firmly to the wall.
10. Plug the cable into the power outlet to ensure
that the cable is not pinched and that the plug
is easily unplugged.
11. Slide the drying cabinet into the recess. Make
sure the rear panel of the drying cabinet is up
against the wall or the wooden batten (2) at
the back of the recess. Also check that the front
of the drying cabinet aligns with the sides of
the recess.
12. Pull out the top hanger section and screw the
cabinet into position using the supplied
securing screws, then fit the cover plugs (see
figure 3).
