Hardware Installations and Upgrades
15. Connect the front panel cable between the control panel and the backplane. See letter "C" in the
figure.
16. Install the fan module. For instructions, see
17. Install the air baffle. For instructions, see
Installed)."
18. Install the processor air duct. For instructions, see
19. Install the PCI riser assembly. For instructions, see
20. Install the hot-swap hard drive(s). For instructions, see
Hard Disk Drive."
21. Install the floppy drive or CD-ROM / DVD-ROM drive. For instructions, see
Removing a Floppy
22. Install the chassis cover. For instructions, see
23. (Optional): Install the front bezel. For instructions, see
Intel® Server Chassis SR2400/SR2400DC User Guide

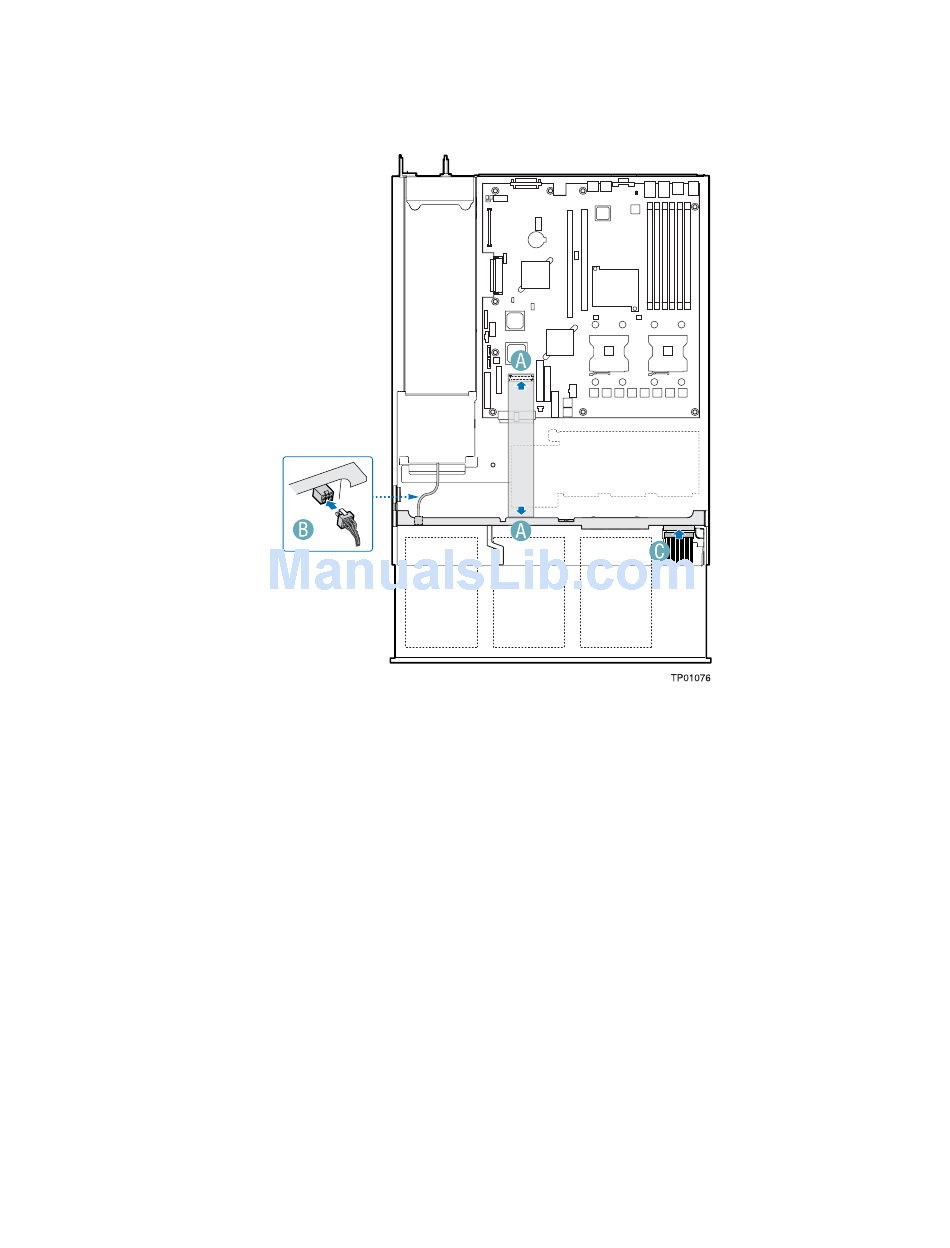

Figure 79. Installing a SATA or SCSI Backplane
"Installing the Fan
"Installing the Large Hot-swap Air Baffle (Backplane
Drive" and "Installing or Removing a CD-ROM or DVD-ROM
Module."
"Installing the Processor Air
"Installing the PCI Riser
"Removing a SATA or SCSI Hot-swap
"Installing the Chassis Cover."
"Installing the Front
Duct."
Assembly."
"Installing or
Drive."
Bezel."
89
