14. Secure the power distribution module to the chassis with two screws. See letter "B" in the
figure below for screw locations.
15. Connect the main power, CPU power, and power signal from the power supply to the server
board. Refer back to Figure 64 and see your server board documentation to locate the
connection points for these cables.
16. Install the air baffle. For instructions on installing the baffle and you have hot-swap drives
installed, see "Installing the Large Hot-swap Air Baffle (Backplane
on installing the baffle if you are using fixed drives, see
(No Backplane
17. (Hot-swap system only): Connect the 2x3 power cable to the backplane. Refer back to Figure
65 for a diagram of this connection point.
18. (Fixed drive system only): Connect the 2x3 power cable to the SATA power adapter cable
Refer back to Figure 66 to see how these cables connect.
19. (Hot-swap system only): Connect the flex cable to the server. Refer back to Figure 63 and see
your server board documentation to locate the connection points for this cable.
20. Install the hot-swap power supply/supplies. For instructions, see
Supply."
21. Install the PCI riser assembly. For instructions, see
22. Install the processor air duct. For instructions, see
23. Install the chassis cover. For instructions, see
82
B

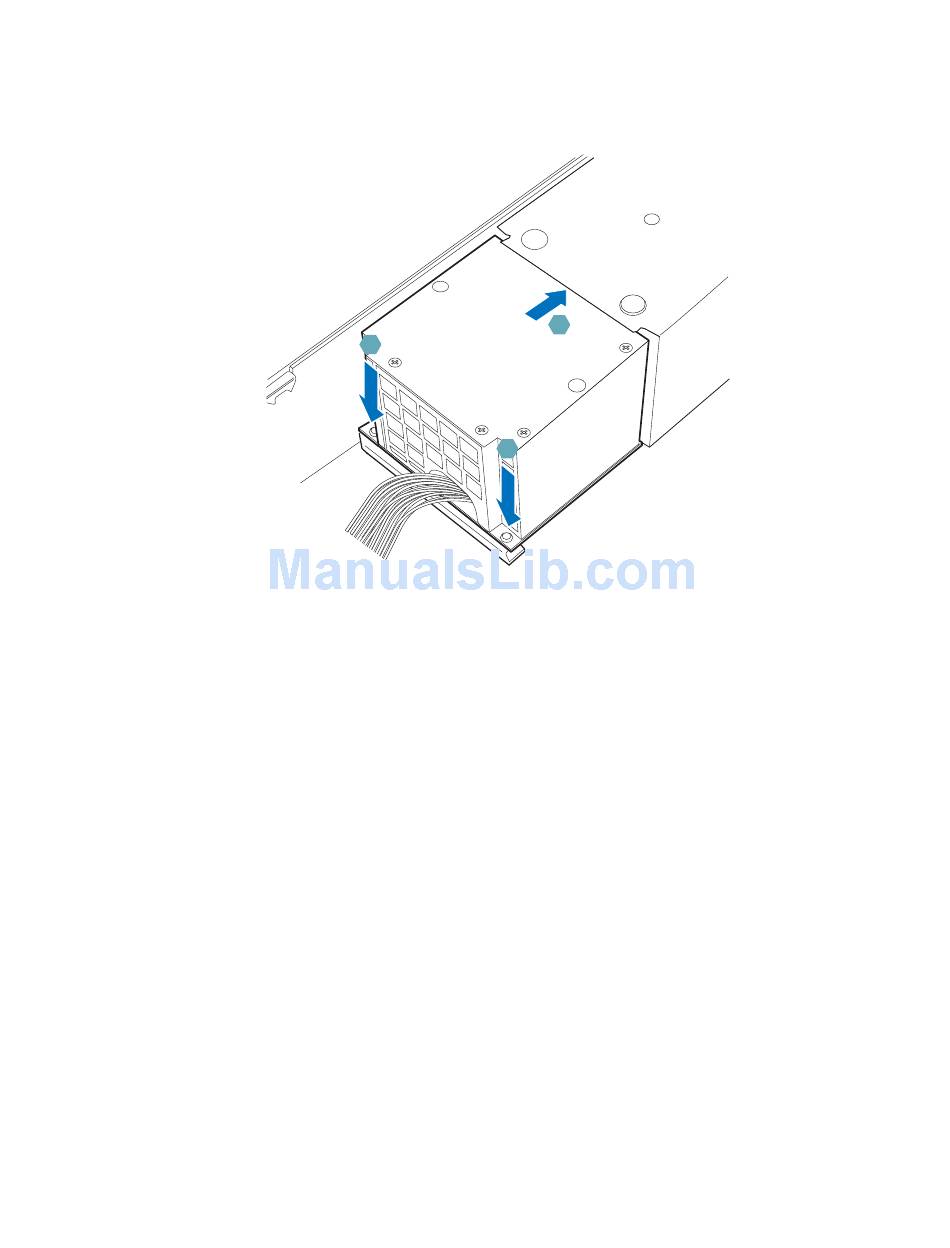

Figure 74. Installing the Power Distribution Module
Installed)."
A
B
AF00443
Installed)." For instructions
"Installing the Fixed Drive Air Baffle
"Installing a Hot-swap Power
"Installing the PCI Riser
"Installing the Processor Air
"Installing the Chassis Cover."
Assembly."
Duct."
