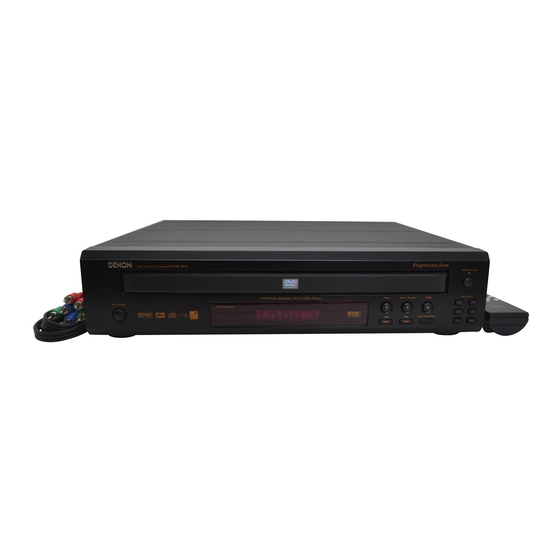

Denon DVM-1835 Operating Instructions Manual
Dvd video auto changer
Hide thumbs
Also See for DVM-1835:
- Specifications (2 pages) ,
- Instrucciones de operación (31 pages) ,
- Operating instructions manual (33 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Denon DVM-1835
Summary of Contents for Denon DVM-1835
- Page 1 DVD VIDEO AUTO CHANGER DVM-1835...
-
Page 2: Important Safeguards
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. -
Page 3: Precautions
Non-use periods - Turn off the unit when it is not in use. Unplug the unit from the household AC outlet if it is not to be used for a long time. Unplug the unit during lightning storms. Please read this operating instructions carefully before using your DVD player, and keep it for future reference. Important Use only discs marked with logos listed on page 6. -
Page 4: Table Of Contents
Do not use the DVD Player at least for 2 hours until its inside is dry. Avoid the Hazards of Electrical Shock and Fire •... -
Page 5: Introduction
INTRODUCTION The serial number of this product may be found on the back of the DVD player. No others have the same serial number as yours. You should record the number and other vital information here and retain this book as a per- manent record of your purchase to aid identification in case of theft. -
Page 6: About The Discs
¡ Any other discs without compatibility indications CAUTION: • Use caution not to pinch your finger in the disc slot. • Be sure to remove a disc and unplug the AC power cord from the outlet before carrying the DVD player. Recorded Disc size... -
Page 7: Features
User can resume playback from the part at which the play was stopped even if the power is turned off. ¡Component Video Out Jacks Jacks located on the back of the DVD Player which are used to send high-quality video to a TV via Component Video In Jacks. -
Page 8: Functional Overview
FRONT PANEL REMOTE CONTROL ENTER The buttons with circled numbers can only be operated with the remote control. DVM-1835 DVD VIDEO AUTO CHANGER 5 DVD Video Automatic Disc Loading System 1. ON/STANDBY, (POWER ON/OFF) Buttons [page 15] 2. Disc loading tray 3. -
Page 9: Tour Of The Remote Control
FUNCTIONAL OVERVIEW Tour of the remote control Buttons on remote control work in different ways for DVD, Audio CD, MP3, JPEG and WMA : Refer to the following table for correct use. POWER Buttons To switch the power between on and standby. - Page 10 FUNCTIONAL OVERVIEW Tour of the remote control MENU Button To call up the menu on a disc. TOP MENU Button To call up the top menu on a disc. ENTER, CURSOR Buttons To move the cursor and determine its position. RETURN Button To return to the previous operation in the setup menu.
-
Page 11: Display
FUNCTIONAL OVERVIEW Display Stays on when repeat title function is on. Stays on when the repeat function is on. Stays on when the A-B repeat function is on. Stays on when the inserted disc is being played back. Displays During Operation Power on No disc inserted Tray open... -
Page 12: Hook Ups
When using the DENON Satellite Remote Control, 1. Connect the DENON Satellite Remote Control to the REMOTE CONTROL IN jack of this player. This allows you to oper- ate this player with the Satellite Remote Control. -
Page 13: Connection To An Audio System
The following show examples of connections commonly used to connect the DVD player to TV and other components. If using this DVD player to play back a DVD in a Dolby Digital Multi-channel surround or DTS surround format, the DVD player outputs a Dolby Digital or DTS data stream from its OPTICAL or COAXIAL DIGITAL OUT jacks. -
Page 14: Connection To A Tv (For Video)
• If your TV is compatible with progressive scanning (525p/480p), connect the TV to the Component Video Output jacks of the DVD player. Refer to page 12. • Connect the DVD player directly to a TV. If the Audio/Video cables are connected to a VCR, pictures may be distorted due to the copy protection system. -
Page 15: Playing A Disc
If the playback does not start automatically, press the PLAY button. • If the disc has not been set on the tray, the DVD player will play the disc which is set on the right side tray. -
Page 16: Resume
PLAYING A DISC Resume During playback, press the STOP button. • Resume message will appear on the TV screen. Press the PLAY button, playback will resume from the point at which playback was stopped. • To cancel resume, press the STOP button twice. NOTES: •... -
Page 17: Track Search
PLAYING A DISC Track Search There are three ways to begin playback on an Audio CD, MP3, JPEG or WMA disc at a specific track. By using the Numeric buttons Press the Numeric buttons to enter the desired track number. •... -
Page 18: Repeat Track
PLAYING A DISC REPEAT TRACK To activate the repeat function, press the REPEAT button during playback. • The repeat mode changes as described below every time you press the button. TRACK (repeat off) (current track repeat) 5 Disc Repeat NOTES: •... -
Page 19: Mp3 / Jpeg / Wma Playback
This DVD player can reproduce images and sounds from data recorded in MP3, JPEG and WMA formats on CD-R and CD-RW discs. The DVD player can also run JPEG files stored on Kodak Picture CD. The user can enjoy picture images on the television set by reproducing Picture CDs. -
Page 20: Slide Show Mode (Jpeg)
“FIRST PLAY” will be highlighted. Notes on WMA: • The DVD player can reproduce data recorded as ISO 9660 level 2 with 31 characters file name included punctuation marks. The name of file can be displayed up to 25 characters. -
Page 21: Program Playback (Mp3 / Jpeg / Wma)
• If eight or more tracks were set in a program, use the SKIP H or G button to see all the tracks. Audio Language The DVD player allows you to select a language (if multiple languages are available) during DVD disc playback. Press the AUDIO button during playback. -
Page 22: Subtitle Language
PLAYING A DISC Subtitle Language The DVD player allows you to select a subtitle language (if multiple languages are available) during DVD playback. Press the SUBTITLE button during playback. Press the SUBTITLE button repeatedly to select your desired subtitle language. -
Page 23: Marker Setup Screen
PLAYING A DISC Marker Setup Screen Use markers to memorize your favourite places on a disc. Press the SEARCH MODE button four times during play- back. • The display screen and Markers will appear on the TV screen. Press the Cursor buttons (s or B) to select 1, 2, 3, 4, 5, 6, 7, 8, 9, or 10 and ensure that “_ : _ _ : _ _”... -
Page 24: Dvd Setup
Display Setting You can change certain aspects of the DVD display screens, on-screen messages and the display panel on the front of the DVD player. Press the SETUP button in stop mode. Press the Cursor button (B) to select CUSTOM, then press the ENTER button. -
Page 25: Audio Setting
DVD SETUP Audio Setting Choose the appropriate Audio settings for your equipment as it only affect during the playback of DVD discs of the DVD player. Press the SETUP button in stop mode. Press the Cursor button (B) to select CUSTOM, then press the ENTER button. - Page 26 DVD SETUP Language Code Language Frisian Abkhazian 4748 Galician Afar 4747 Georgian Afrikaans 4752 German [GER] Albanian 6563 Greek [GRE] Amharic 4759 Greenlandic Arabic 4764 Guarani Armenian 5471 Gujarati Assamese 4765 Hausa Aymara 4771 Hebrew Azerbaijani 4772 Hindi Bashkir 4847 Hungarian [HUN] Basque 5167...
-
Page 27: Maintenance
MAINTENANCE Cleaning the Cabinet • Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives. Cleaning Discs • When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the center out. Do not wipe in a circular motion. -
Page 28: Troubleshooting Guide
TROUBLESHOOTING GUIDE If the DVD player does not perform properly when operated as instructed in this Operating Instruction, check the player, con- sulting the following checklist. Problem No power No sound or picture Distorted picture Completely distorted picture or black/white picture with DVD... -
Page 29: Specifications
SPECIFICATIONS SIGNAL SYSTEM NTSC color APPLICABLE DISCS (1) DVD-Video discs 1-layer 12cm single-sided discs, 2-layer 12cm single-sided discs, 2-layer 12cm double-sided discs (1 layer per side) 1-layer 8cm single-sided discs, 2-layer 8cm single-sided discs, 2-layer 8cm double-sided discs (1 layer per side) (2) DVD-R/DVD-RW (3) Compact discs (Audio CD) 12cm discs, 8cm discs... - Page 30 MEMO...
- Page 31 MEMO...
- Page 32 TOKYO, JAPAN Denon Brand Company, D&M Holdings Inc. www.denon.com Printed in China 1VMN22544 00D 511 4533 002 E8625UD *****...
