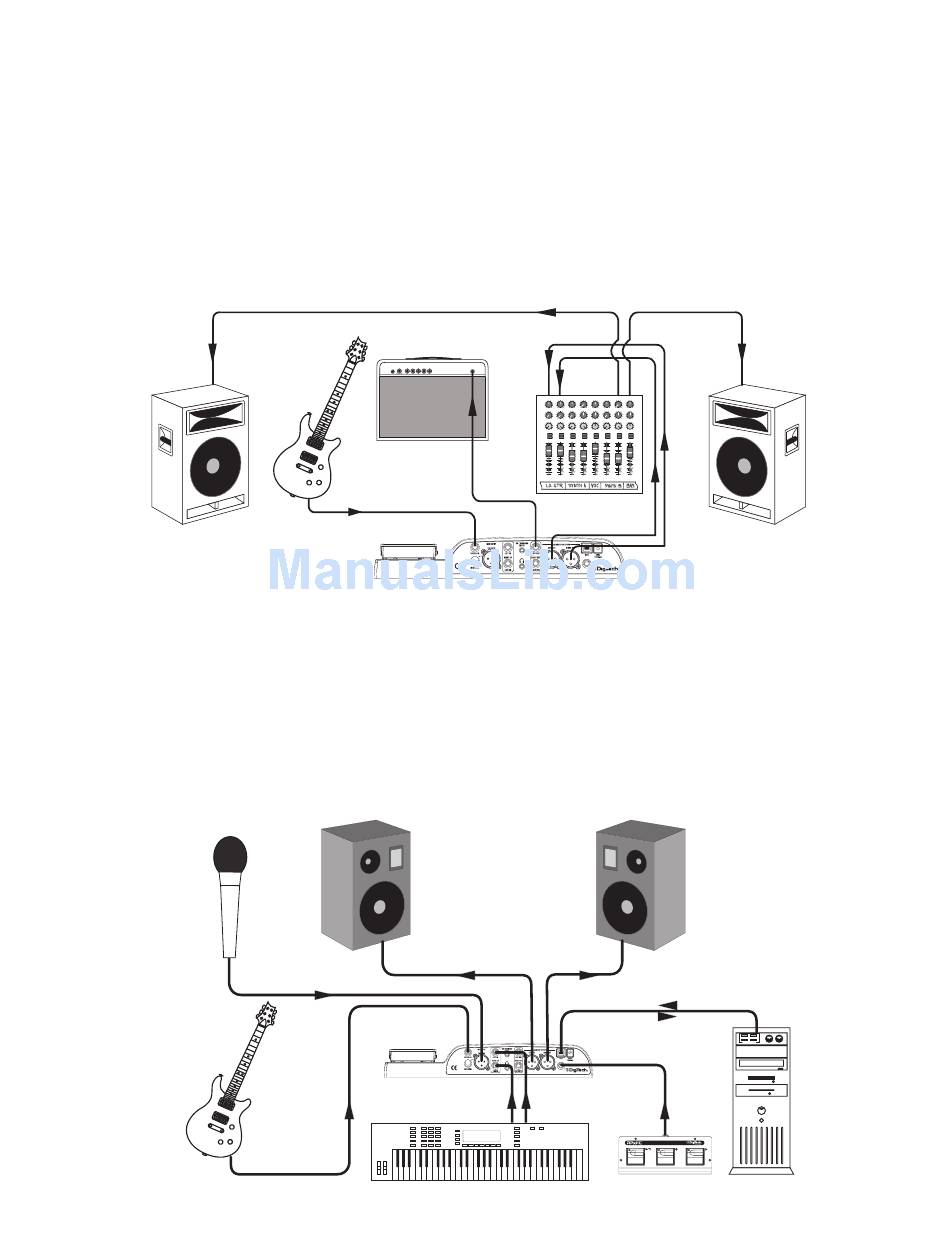

Amp / PA Rig

Connect your guitar to the Input of the RPx400. Connect a a mono instrument cable from the Left or
Right 1/4" Line Output of the RPx400 to the instrument input or effect return on your amplifier or
power amp/speaker cabinet rig. Connect the balanced XLR Left and Right outputs to the inputs on your
PA mixer and pan each of these channels hard left and hard right. Select SC XLR as your Output Mode
(see Output Modes on pg 23). This enables Cabinet Simulation on the feeds to the mixer and PA but
not to your guitar amp onstage. This connection scheme also applies for use with a power amp/speaker
cabinet rig.

Recording Setup

This is the classic recording setup utilizing the RPx400's mic and line inputs and a pair of powered refer-
ence monitors connected the RPx400's XLR outputs. This setup can also be used for live applications
where you would be performing along with playback from the Pro Tracks. recording software running on
your computer. See the Output Modes section on page 23 on how the XLR and 1/4" outputs and
Speaker Compensation can be implemented for various recording and live applications
