A Guided Tour of the RP300

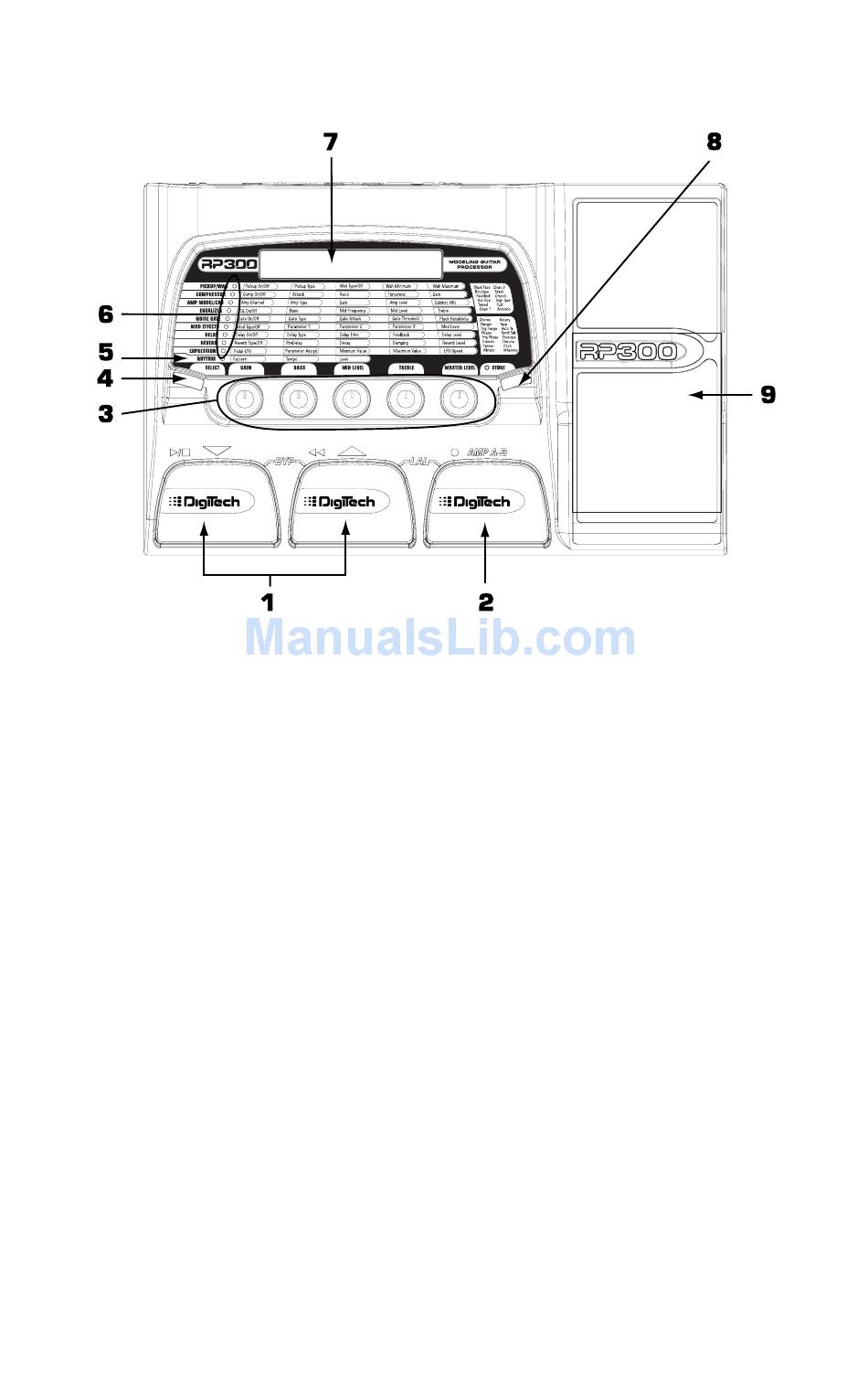

The Front Panel
1. Up/Down Footswitches - These 2 Footswitches are used to select Presets, access the
2. Amp A/B Footswitch - This Footswitch is used to switch between two amp channels for the
3. Knobs - These knobs perform various functions depending on which mode is currently
active in the RP300. In performance mode, the knobs control the Amp Gain, Bass
EQ, Mid EQ,Treble EQ, and Master Level. In Edit mode, these knobs adjust the
Parameter values listed directly above each knob for the selected effect. In Rhythm
Trainer, these knobs control the Pattern,Tempo, and Level. In Tuner mode, these
knobs are used to select the desired tuning reference.
4. Select Button - This button is used to enter the Edit mode, and to select individual effects
5. Rhythm - The Rhythm button is used to turn on and off the Rhythm Trainer drum loop.
When the Rhythm feature is active, the Rhythm LED lights and the selected drum
pattern plays continuously.
6. Matrix - The matrix provides information regarding the current Preset, and Parameter edit
functions. In performance mode, the LEDs running down the left side of the Matrix
will provide a visual indication of which effects are in use for the currently selected
Preset. In Edit mode, the LEDs indicate the Effect currently selected for editing.
2
WHAZUP30
Tuner, or bypass the RP300.The Footswitch on the left will
decrease, and the middle Footswitch will increase the Preset
number. Pressing both Footswitches together will bypass the
currently selected Preset. Pressing and holding both Footswitches
will access the Tuner.
selected preset.This switch is also used in conjunction with the Up
Footswitch, to access the Learn-A-Lick mode.
to be edited. Successive presses of this button will advance through all
available Effects. It is also used to change playback speed in Learn-A-Lick
mode.
