Rear Panel

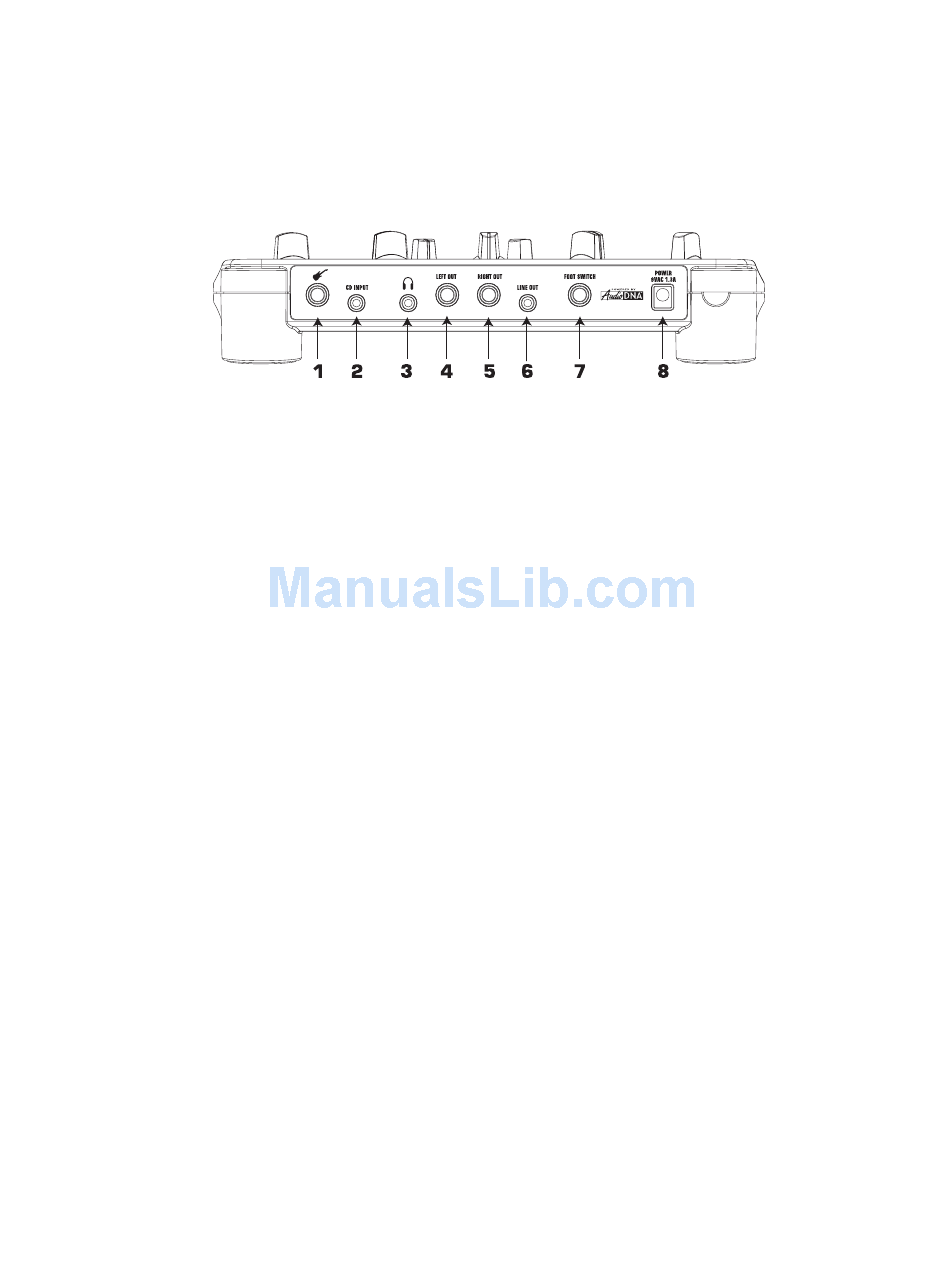

The Genesis1's rear panel has the following connections:
1. Input - Plug your instrument into this jack.
2. CD INPUT(1/8" Stereo TRS) - Connect a CD headphone output to this
jack.
3. Headphone Output - Plug stereo headphones to this jack.
4. LEFT OUTput - Connect an amplifier input, a power amp input, or line
input of a mixing console to this jack.
5. RIGHT OUTput - Use this jack in conjunction with the left output for
stereo applications. Connect a second amplifier input, or the right input
of a stereo power amp.
6. LINE OUTPUT - (1/8" Stereo TRS) - Connect to a computer sound
card input, or line level input with this jack.
7. FOOTSWITCH Jack - Connect the FS300 footswitch to remotely con-
trol effects to this jack.
8. POWER Jack - Connect only the Digitech PS913B power supply to this
jack.

Setup Connections

The Genesis 1 has several different connection options. You can run
mono into an amp or power amp, stereo into two amps, stereo direct
into a mixing console, direct into a computer sound card, or any
combination of these. Before connecting the Genesis 1 to your system,
make sure the Genesis 1 is OFF and your system is ON.

Powering Up

1.Turn the volume completely down on your system.
2. Connect the Genesis 1's outputs to the inputs of your system.
LEVEL
3.Turn the
Genesis 1.
4. Connect the power to the Genesis 1.
5. Bring up the volume on your system.
6.While playing, slowly turn up the
tening level on the Genesis 1.
2
knob down to the minimum position on the
LEVEL
knob to the desired lis-
