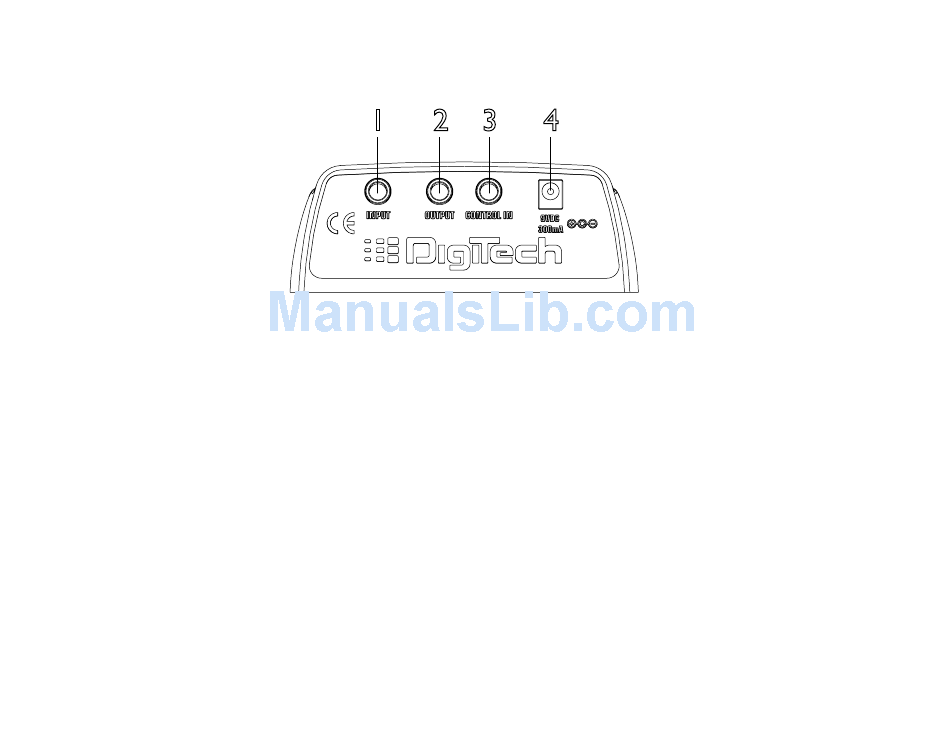

Rear Panel

1. Input - Connect your instrument to this jack.
2. Output - This is a stereo TRS jack. Connect from this jack to the input of a single amplifier for mono
applications, or use a TRS stereo "Y" cord to connect to the inputs of 2 amplifiers for stereo
applications. This jack also can be used as a headphone jack.
Note: When using the RP55 direct into a mixer or recording device, or when using
it with headphones, you can enable the Global Cabinet Modeling feature to
emulate speaker simulation on each of the RP55's presets. (See Page 20 for
more on Global Cabinet Modeling.)
3. Control In - Connect a passive mono volume or TS (tip/sleeve) expression pedal to this jack to control
Volume, Wah, and Whammy™ in the RP55. TRS expression pedals are not supported.
4. Power Input - Connect only the optional power supply or equivalent to this jack (see Specifications).
4
1 2 3 4
