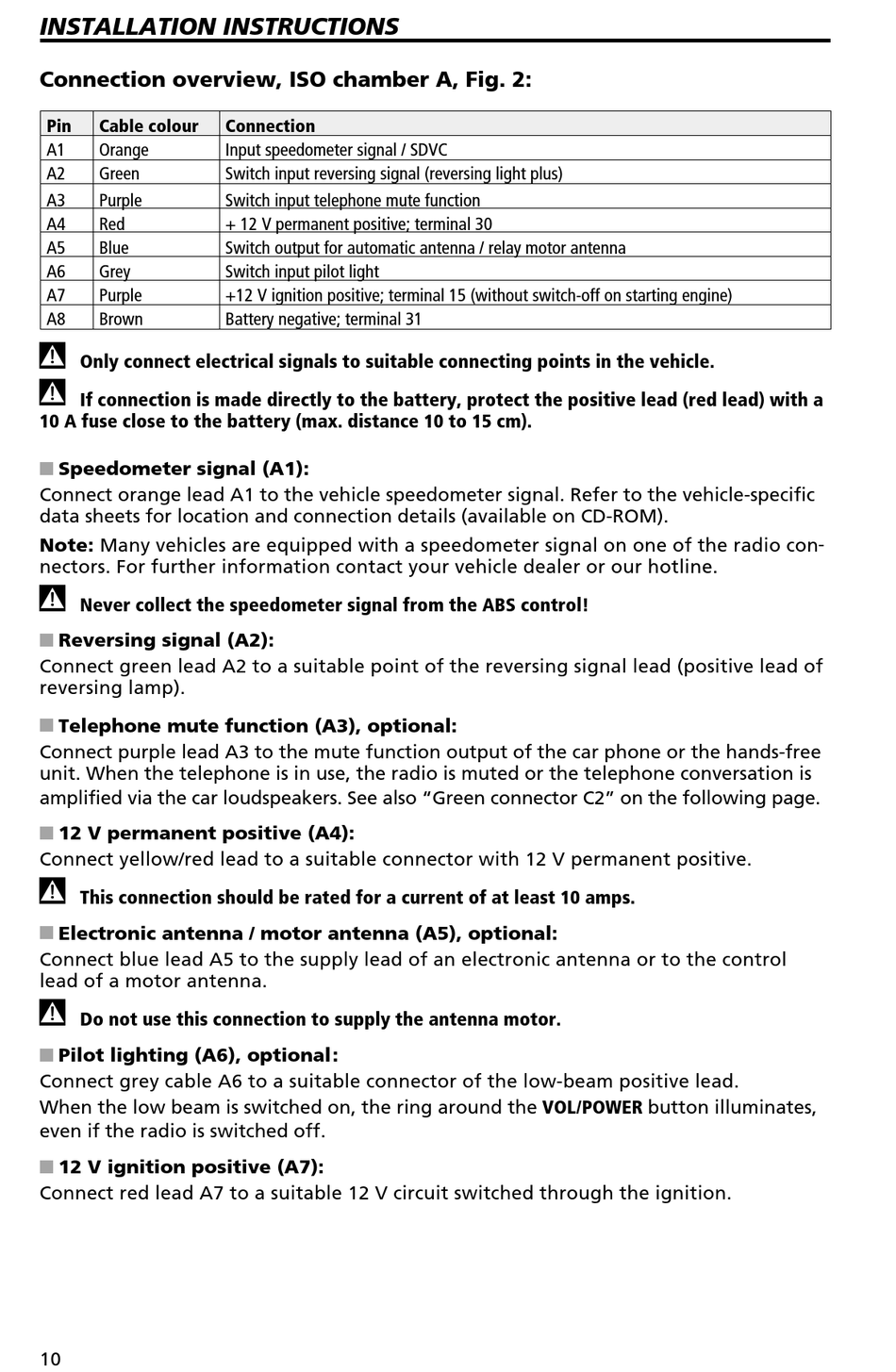

INSTALLATION INSTRUCTIONS

Connection overview, ISO chamber A, Fig. 2:
Pin Cable colour
A1 Orange
A2 Green
A3 Purple
A4 Red
A5 Blue
A6 Grey
A7 Purple
A8 Brown
A
Only connect electrical signals to suitable connecting points in the vehicle.
A
If connection is made directly to the battery, protect the positive lead (red lead) with a
10 A fuse close to the battery (max. distance 10 to 15 cm).
Speedometer signal (A1):
Connect orange lead A1 to the vehicle speedometer signal. Refer to the vehicle-specific
data sheets for location and connection details (available on CD-ROM).
Note: Many vehicles are equipped with a speedometer signal on one of the radio con -
nectors. For further information contact your vehicle dealer or our hotline.
A
Never collect the speedometer signal from the ABS control!
Reversing signal (A2):
Connect green lead A2 to a suitable point of the reversing signal lead (positive lead of
reversing lamp).
Telephone mute function (A3), optional:
Connect purple lead A3 to the mute function output of the car phone or the hands-free
unit. When the telephone is in use, the radio is muted or the telephone conversation is
amplified via the car loudspeakers. See also "Green connector C2" on the following page.
12 V permanent positive (A4):
Connect yellow/red lead to a suitable connector with 12 V permanent positive.
A
This connection should be rated for a current of at least 10 amps.
Electronic antenna / motor antenna (A5), optional:
Connect blue lead A5 to the supply lead of an electronic antenna or to the control
lead of a motor antenna.
A
Do not use this connection to supply the antenna motor.
Pilot lighting (A6), optional:
Connect grey cable A6 to a suitable connector of the low-beam positive lead.
When the low beam is switched on, the ring around the VOL/POWER button illuminates,
even if the radio is switched off.
12 V ignition positive (A7):
Connect red lead A7 to a suitable 12 V circuit switched through the ignition.
10
Connection
Input speedometer signal / SDVC
Switch input reversing signal (reversing light plus)
Switch input telephone mute function
+ 12 V permanent positive; terminal 30
Switch output for automatic antenna / relay motor antenna
Switch input pilot light
+12 V ignition positive; terminal 15 (without switch-off on starting engine)
Battery negative; terminal 31
