APRILIA RX 50 RACING - 2003 Manual page 26

00
1
4
00
00
1
4
00
00
1 ODO
000
00
26
MODE
MODE
MODE

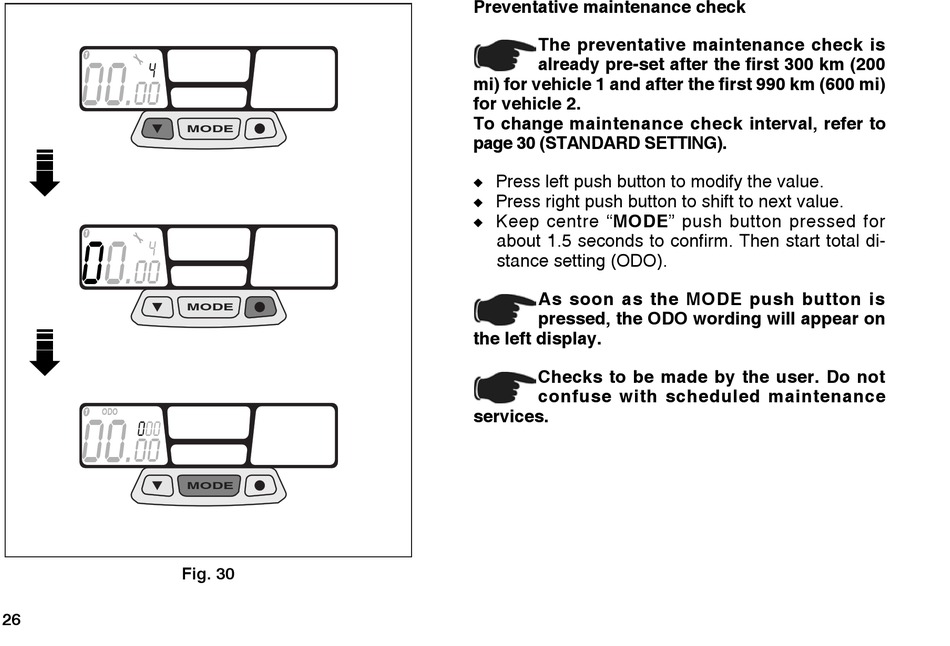

Fig. 30
Preventative maintenance check
The preventative maintenance check is
already pre-set after the first 300 km (200
mi) for vehicle 1 and after the first 990 km (600 mi)
for vehicle 2.
To change maintenance check interval, refer to
page 30 (STANDARD SETTING).
Press left push button to modify the value.
◆
Press right push button to shift to next value.
◆
Keep centre ≈MODE∆ push button pressed for
◆
about 1.5 seconds to confirm. Then start total di-
stance setting (ODO).
As soon as the MODE push button is
pressed, the ODO wording will appear on
the left display.
Checks to be made by the user. Do not
confuse with scheduled maintenance
services.
