APRILIA RX 50 RACING - 2003 Manual page 25

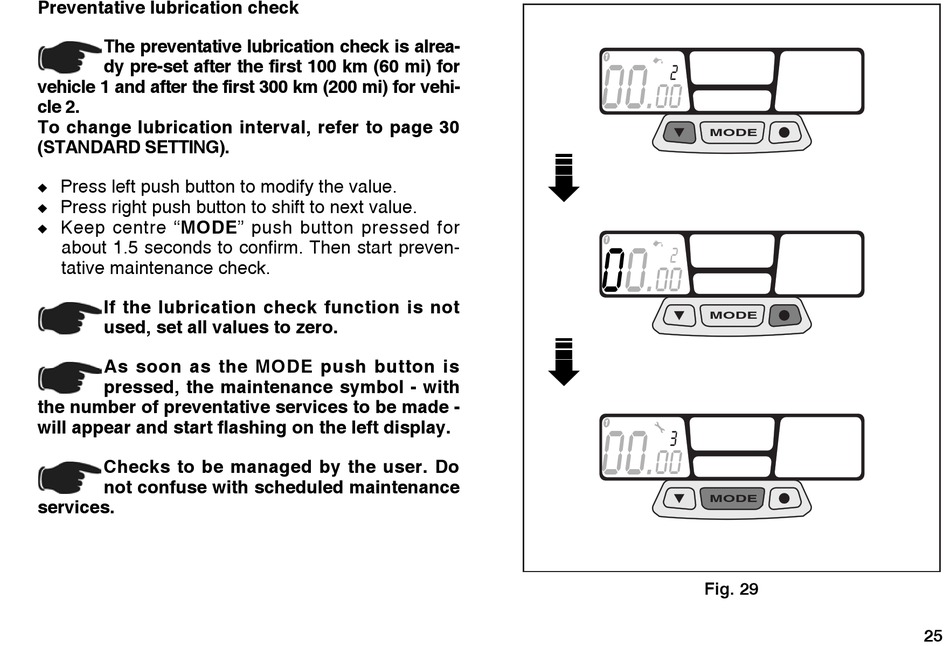

Preventative lubrication check
The preventative lubrication check is alrea-
dy pre-set after the first 100 km (60 mi) for
vehicle 1 and after the first 300 km (200 mi) for vehi-
cle 2.
To change lubrication interval, refer to page 30
(STANDARD SETTING).
Press left push button to modify the value.
◆
Press right push button to shift to next value.
◆
Keep centre ≈MODE∆ push button pressed for
◆
about 1.5 seconds to confirm. Then start preven-
tative maintenance check.
If the lubrication check function is not
used, set all values to zero.
As soon as the MODE push button is
pressed, the maintenance symbol - with
the number of preventative services to be made -
will appear and start flashing on the left display.
Checks to be managed by the user. Do
not confuse with scheduled maintenance
services.
00
1
2
00
MODE
00
1
2
00
MODE
00
1
3
00
MODE
Fig. 29
25
