APRILIA RX 50 RACING - 2003 Manual page 20

88 88
88:88 88:88
1 2 1 2 ODO ODO DST DST
888 888
88 88
88:88:88 88:88:88
MODE
88 88
1 2 1 2
20
88 88
ASS PD MS ASS PD MS
AR TT AR TT
888 888
LO LO
8 8
KM/H KM/H

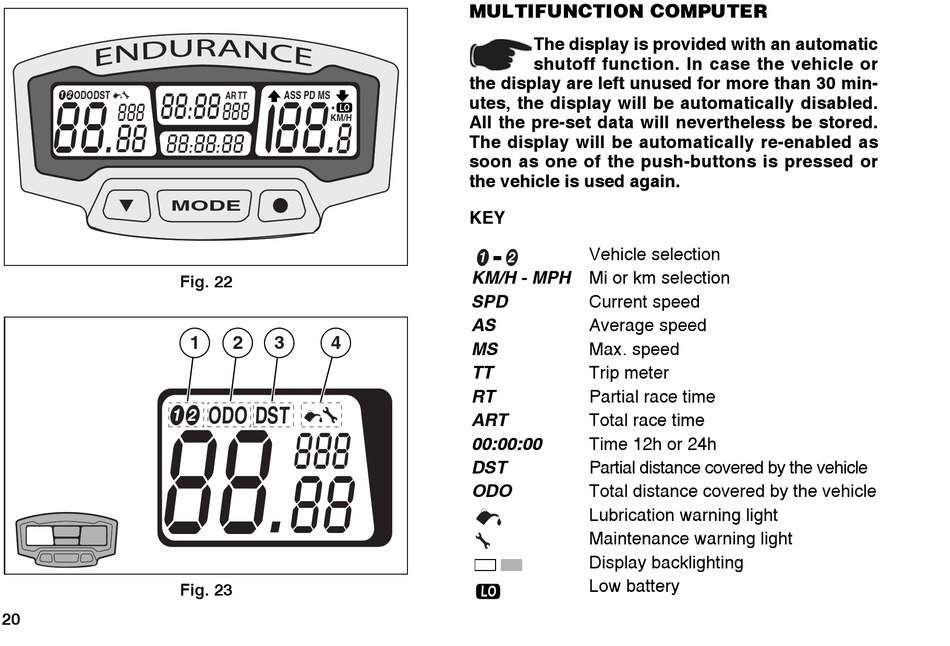

Fig. 22
1 2 3 4
ODO ODO DST DST
888 888
88 88
Fig. 23
MULTIFUNCTION COMPUTER
The display is provided with an automatic
shutoff function. In case the vehicle or
the display are left unused for more than 30 min-
utes, the display will be automatically disabled.
All the pre-set data will nevertheless be stored.
The display will be automatically re-enabled as
soon as one of the push-buttons is pressed or
the vehicle is used again.
KEY
Vehicle selection
1 2
KM/H - MPH
Mi or km selection
SPD
Current speed
AS
Average speed
MS
Max. speed
TT
Trip meter
RT
Partial race time
ART
Total race time
00:00:00
Time 12h or 24h
DST
Partial distance covered by the vehicle
ODO
Total distance covered by the vehicle
Lubrication warning light
Maintenance warning light
Display backlighting
Low battery
LO
