G
E
F
D

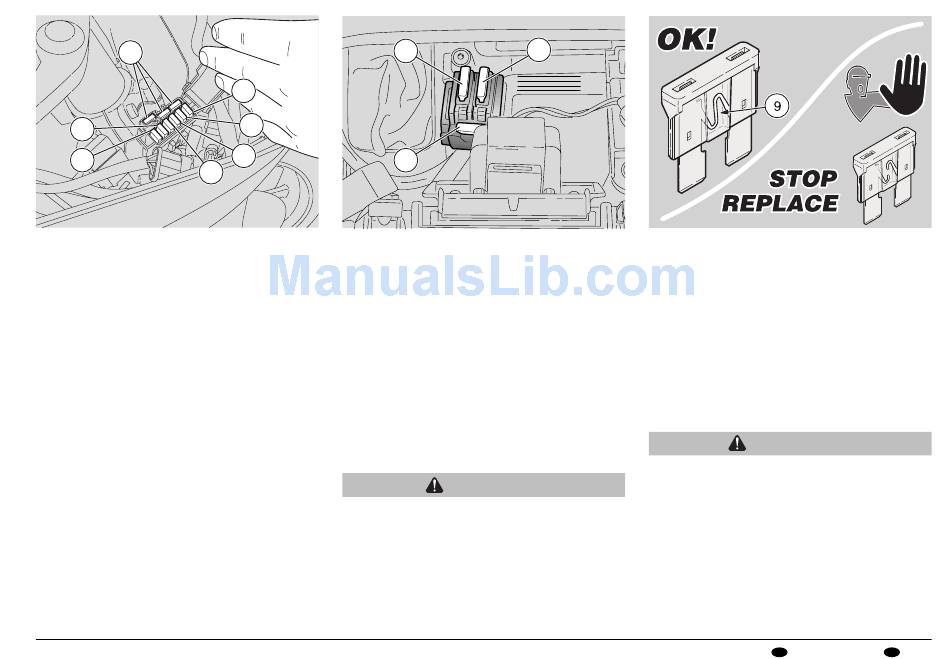

ARRANGEMENT OF 5A AUXILIARY
FUSES
A) From ignition key to:
light relay, brake light, horn, parking
lights.
B) From ignition key to:
direction indicators, dashboard.
C) From battery to:
key positive brought to ECU.
ARRANGEMENT OF 15A AUXILIARY
FUSES
D) From battery to:
speed sensor, fuel pump, relay, starter,
lambda sensor.
E) From battery to:
cooling fan relay, coils, fuel injectors, air
intake flaps, camshaft position sensor.
H
A
B
C
L
ARRANGEMENT OF 20A AUXILIARY
FUSES
F) From ignition switch to:
highbeam lights, low beam lights.
NOTE
There are three spare fuses (G).
ARRANGEMENT OF 30A MAIN FUSES
H) Battery charging and vehicle loads (red
and red/white wires).
I) Injection loads (red and red/white
wires).
NOTE
There is one spare fuse (L).
Extract the fuses one by one, so as to
avoid replacing them incorrectly during
reassembly.
I
CAUTION
use and maintenance RSV 1000 R
NOTE
If you remove one of the 30A fuses,
this will set the digital clock and the red line
setting to zero. To reset these functions, see
p. 38 (MULTIFUNCTION COMPUTER).
Remove, one by one, the fuse and
inspect the filament (9). If it is open, the
fuse must be replaced.
Replace the blown fuse with the
appropriate spare fuse or with a new
fuse having the same amperage rating.
WARNING
If you replace the fuse and it blows
again immediately, there is a serious
problem with the electrical system of
your vehicle. Do not attempt to continue
using your vehicle. Take it to your Local
aprilia Dealer for repair and service.
NOTE
If you use the spare fuse, replace
it as soon as convenient.
- RSV 1000 RFACT
USA
131
USA
