Special Instructions for
DS1100 SH2347 and DS2200 SH2348
10 - 30 Vdc
Electrical Connections
The scanner cable is equipped with a 25-pin female D-sub connector for
connection with the power supply and input/output signals:

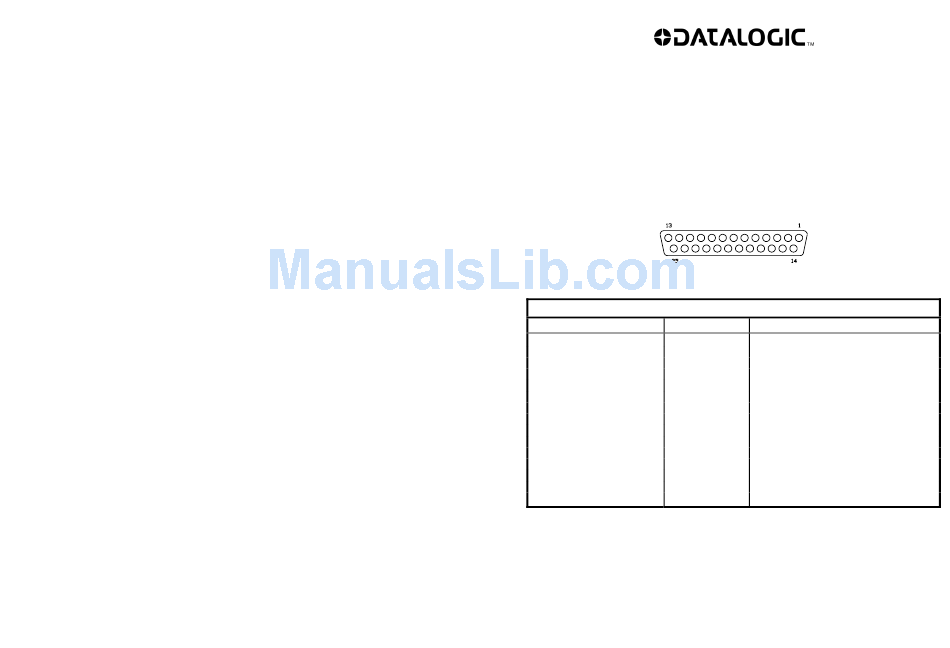

Figure 1 – 25-pin female D-sub connector
25-pin D-sub connector pinout
Pin
Name
9,13
VS
25
GND
1 *
CHASSIS
2, 21
TXAUX
3, 20
RXAUX
4
RTX485 -
5
RTX485 +
7
SGND
8
OUT1 +
11
OUT2 +
18
EXT TRIG +
19
EXT TRIG -
10, 12, 22
I/O REF
17
IN1 -
6, 14, 15, 16, 23, 24
N.C.
* Pins 1 and 25 are connected together internally.
851000292 (Rev. B)
Function
Power supply input voltage +
Power supply input voltage -
Chassis Ground
TX RS232 Aux. Interface
RX RS232 Aux. Interface
RTX- RS485 Main Interface
RTX+ RS485 Main Interface
Signal Ground
Output 1 +
Output 2 +
External trigger +
External trigger -
Input/Output reference
Input 1 -
Not Connected
