xStack DES-3528/DES-3552 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual
NOTE: For customers interested in D-View, D-Link Corporation's proprietary SNMP
management software, go to the D-Link Website (www.dlink.com) and download the
software and manual.

Front-Panel Components

DES-3528
•
Twenty-four 10/100Mbps BASE-T ports
•
Two Combo 1000BASE-T/SFP ports located to the right
•
Two 1000BASE-T ports located to the rear
•
One female DCE RS-232 DB-9 console port
•
LEDs for Power, Console, RPS, Master, Link/Act/Speed for each port
DES-3528P
•
Twenty-four 10/100Mbps BASE-T ports
•
Two Combo 1000BASE-T/SFP ports located to the right
•
Two 1000BASE-T ports located to the rear
•
One female DCE RS -232 DB-9 console port
•
One PoE Select Button
•
LEDs for Power, Console, RPS, MS, Link, PoE, Link/Act/Speed for each port
DES-3528DC
•
Twenty-four 10/100Mbps BASE-T ports
•
Two Combo 1000BASE-T/SFP ports located to the right
•
Two 1000BASE-T ports located to the rear
•
One female DCE RS-232 DB-9 console port
•
LEDs for Power, Console, Master, Link/Act/Speed for each port
DES-3552
•
Forty-eight 10/100Mbps BASE-T ports
•
Two Combo 1000BASE-T/SFP ports located to the right

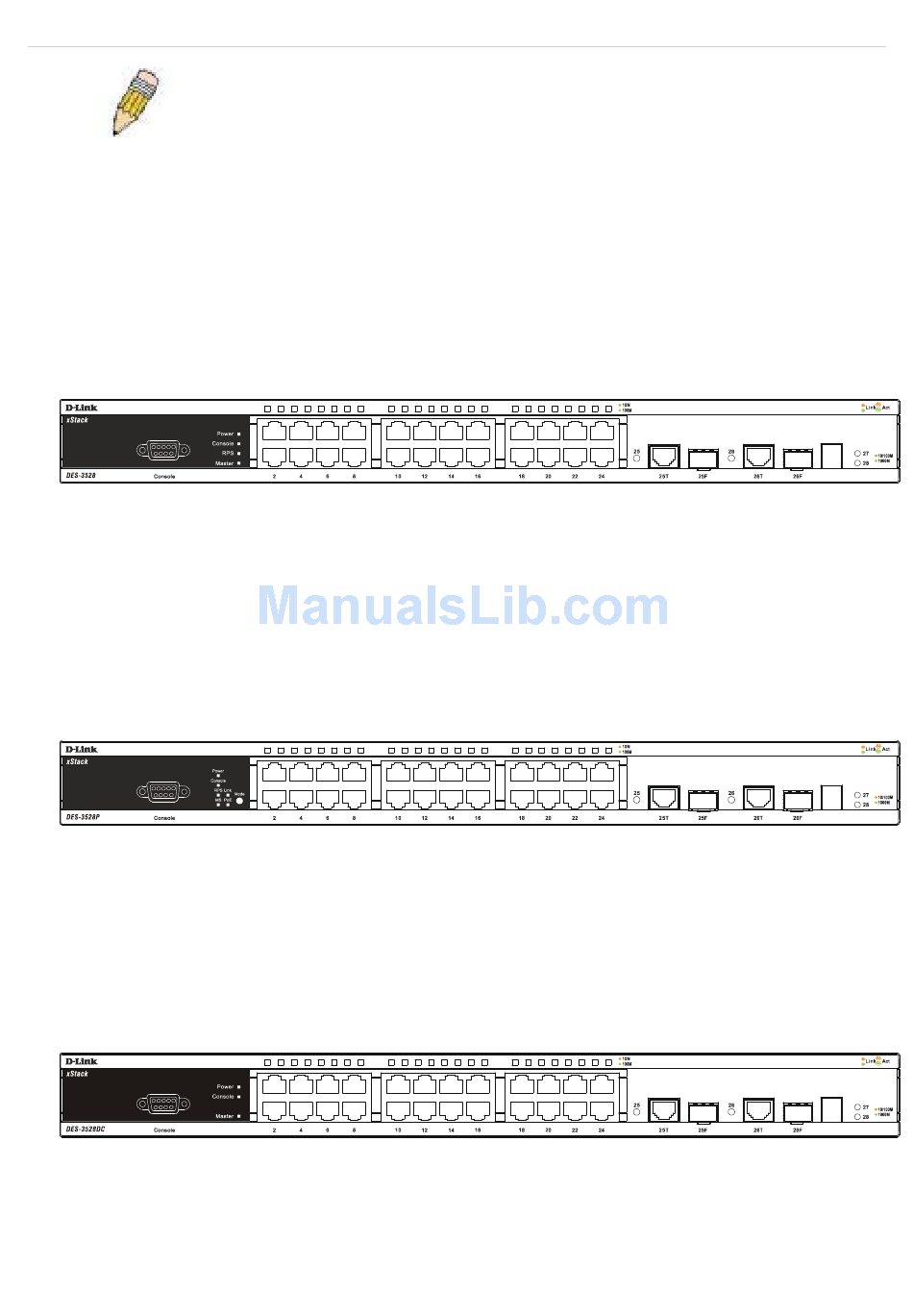

Figure 1- 1. Front Panel View of the DES-3528 switch
Figure 1- 2. Front Panel View of the DES-3528P switch
Figure 1- 3. Front Panel View of the DES-3528DC switch
