Installation Manual of Room Air Conditioner
1.Driver
2.Hacksaw
3.Hole core drill
4.Spanner(17,19 and 26mm)
Accessory parts
No.
Accessory parts
1
Remote controller
2
R-03 dry battery
3
Mounting plate
4
4X25
Plastic cap
Screw
5
Drain-elbow
6
Pipe supporting plate
No.0010562727
Necessary Tools for Installation
5.Torque wrench(17mm,22mm,26mm)
6.Pipe cutter
7.Flaring tool
8.Knife

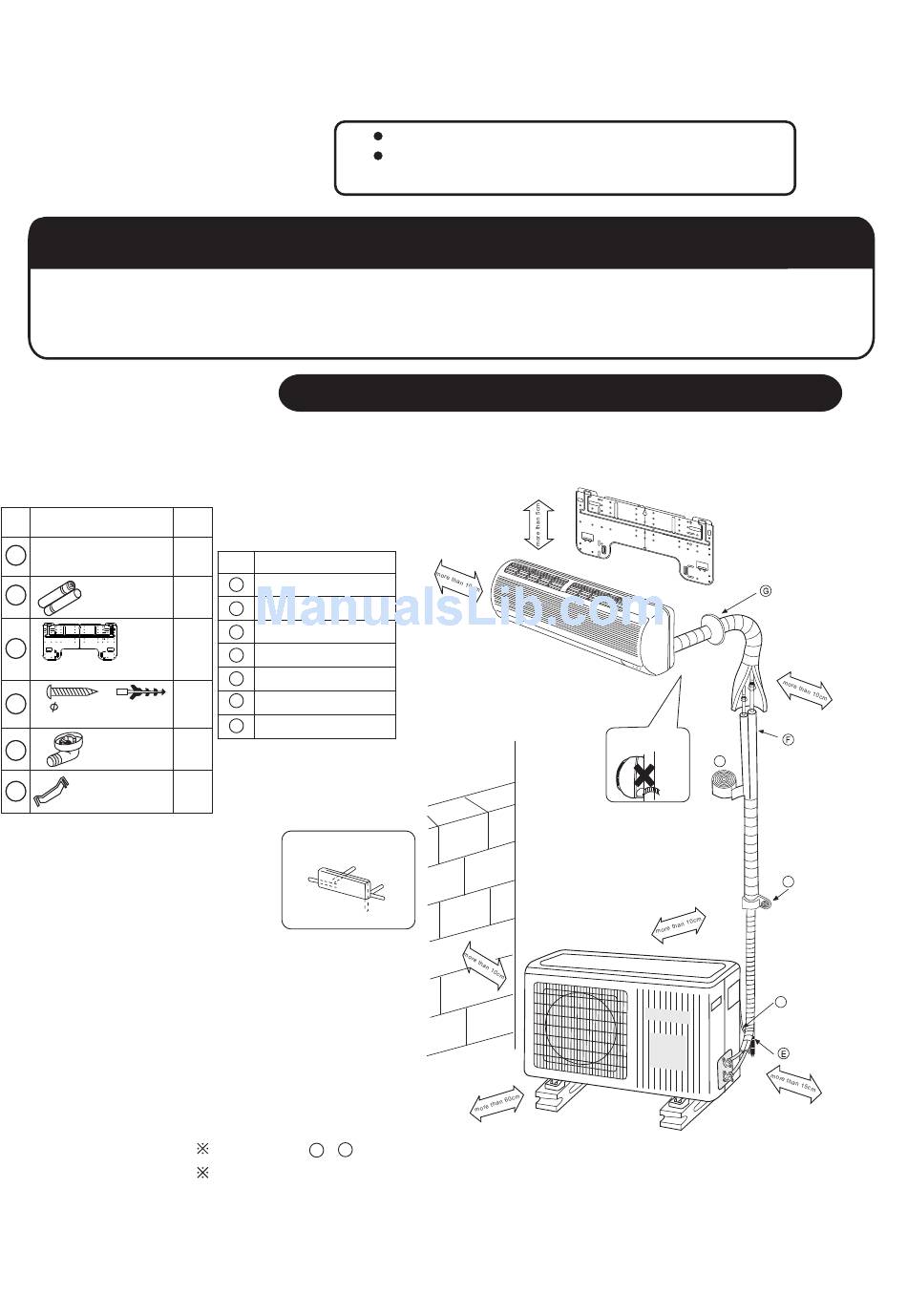

Drawing for the installation of indoor and outdoor units
Number
of
articles
Optional parts for piping
1
Mark
Parts name
A
Non-adhesive tape
2
Adhesive tape
B
Saddle(L.S) with screws
C
1
Connecting electric cable
D
for indoor and outdoor
Drain hose
E
F
4
Heating insulating material
Piping hole cover
G
1
1
Arrangement of piping directions
Rear left
Left
The marks from
A
to
G
The distance between the indoor unit and the floor should be
more than 2m.
Read this manual before installation
Explain sufficiently the operating means to the user
according to this manual.
The models adopt HFC free refrigerant R410A
Rear
right
Right
Below
in the figure are the parts numbers.
9.Nipper
10.Gas leakage detector or
soap-and-water solution
11.Measuring tape
Attention must be paid to
the rising up of drain hose
A
12.Reamer
C
D
Advertisement
Table of Contents
Related Manuals for Haier HSU-09RE03
Summary of Contents for Haier HSU-09RE03
-
Page 1: Installation Manual Of Room Air Conditioner
Drain-elbow Pipe supporting plate Arrangement of piping directions Rear left Rear Left right Right Below The marks from in the figure are the parts numbers. The distance between the indoor unit and the floor should be more than 2m. No.0010562727... -
Page 2: Selection Of Installation Place
Before inserting power plug into receptacle, check the voltage without fail. The power source is the same as the corresponding name plate. Install an exclusive branch circuit of the power. A receptacle shall be set up in a distance where the power cable can be reached. Do not extend the cable by cutting it. Selection of pipe... -
Page 3: Indoor Unit
2. Make sure once more the proper level of the plate, by hanging a thread with a weight from the central top of the plate, then fasten securely the plate with the attachment steel nail. -
Page 4: Installation Of The Indoor Unit
In case of left side piping, cut away, with a nipper, the lid for left piping. In case of left-rear piping, bend the pipes according to the piping direction to the mark of hole for left-rear piping which is marked on heat insulation materials. -
Page 5: When Connecting The Cable Before Installing The Indoor Unit
1. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person. The type of connecting wire is H05RN-F or H07RN-F. -
Page 6: Installation Of Outdoor Unit
Be careful that matters, such as wastes of sands, etc. shall not enter the pipe. The standard pipe length is 5m. If it is over 5m, the function of the unit will be affected. If the pipe has to be lengthened, the refrigerant should be charged, according to 20 g/m. But the charge of refrigerant must be conducted by professional air conditioner engineer. - Page 7 Otherwise, there will be refrigerant into air conditioner according to the amount marked on abnormal high pressure in the system to make it crack and lead to the name plate. personal injuries.
-
Page 8: Power Source Installation
Please pour water in the drain pan of the indoor unit, and confirm that drainage is carried out surely to outdoor. In case that the attached drain hose is in a room, please apply heat insulation to it without fail.
